TW 110 Schaeff Excavator Specs & Dimensions - (2017 - 2026)

The TW 110 wheel excavator model is manufactured by Schaeff. Find and download detailed specs and data sheets for this machine her…

The TW 110 wheel excavator model is manufactured by Schaeff. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful Deutz engine, this TW 110 11t machine can provide 85kW or 113 horse power for the wheel excavator. The Schaeff TW 110 can be grouped in the smallest machine segment in the wheel excavators category. The TW 110’s size is 2.5m x 6.8m x 2.99m. The bucket capacity of TW 110 is 0.254m³, which is above average for this type of machine.

Since 2017, this model has included Quick hitch mech., Blade and Overload alert. It does not include Material Handling Excavator, Quick hitch hydr. And Aircondition. There are more detailed specifications and machine descriptions available in the original Schaeff TW 110 specs data sheet. Available in English, German and French, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.

The production is still going in 2017, where this TW 110 is available at a new list price between €157000 and €200000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Schaeff currently produces 3 other wheel excavators, which range from 7.4t up to 9.1t - the most visited on LECTURA Specs are TW 95, TW 95, TW 75. This TW 110 wheel excavator, which has been in production between 2017 and 2017 ranks in the LECTURA index at #120. Want more detailed specifications? Download the latest Schaeff TW 110 specs data sheet on LECTURA Specs today!

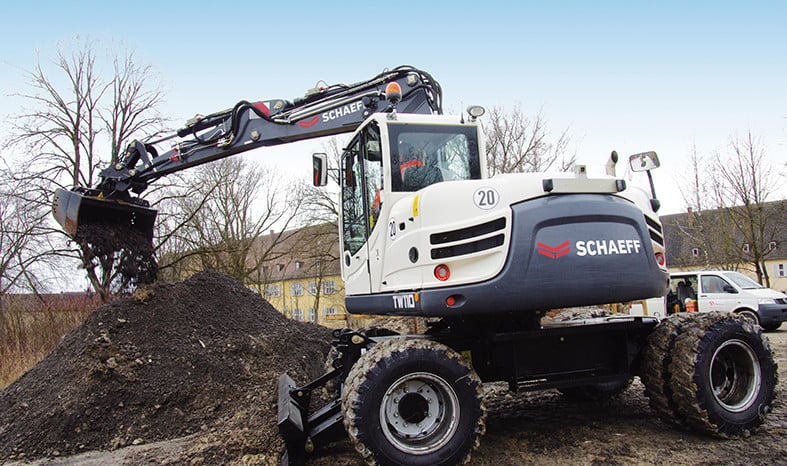

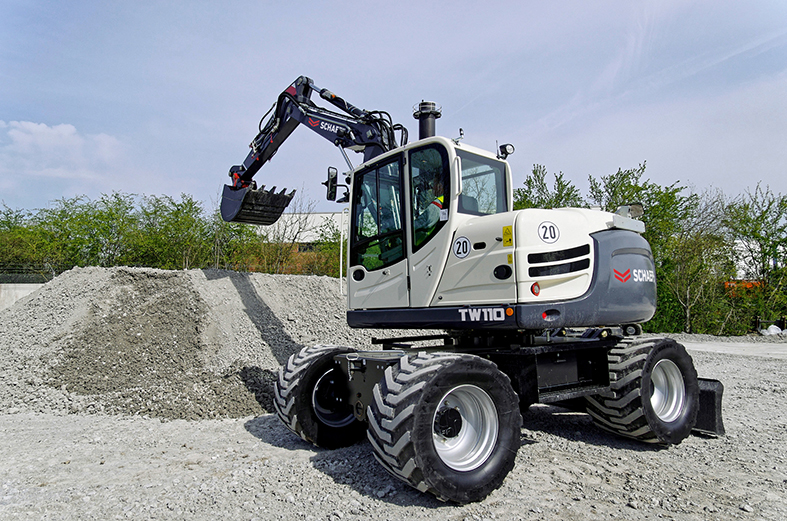

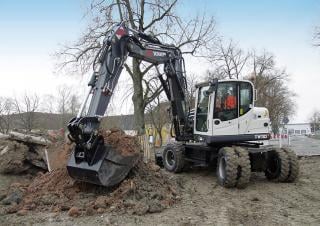

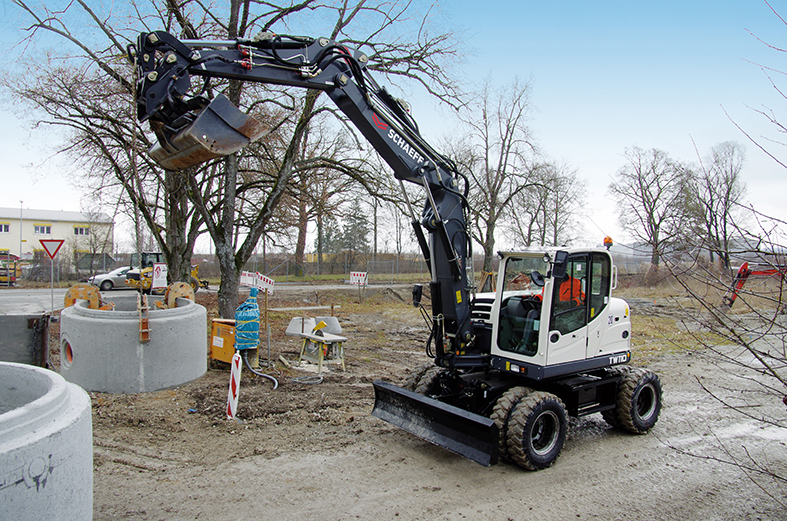

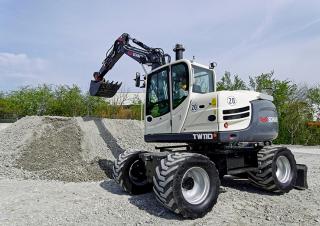

Wheel Excavators Schaeff TW 110
Wheel Excavators Schaeff TW 110
Wheel Excavators Schaeff TW 110
Wheel Excavators Schaeff TW 110
Wheel Excavators Schaeff TW 110
Wheel Excavators Schaeff TW 110
Wheel Excavators Schaeff TW 110
Wheel Excavators Schaeff TW 110
Wheel Excavators Schaeff TW 110
Wheel Excavators Schaeff TW 110

Technical specs - TW 110 Schaeff

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
11 t
Standard tyres
9.00-20
Bucket capacity
0.254 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
6.8 m
Transport width
2.5 m
Transport height
2.99 m
Max. Reach horizontal
8.3 m
Dredging depth
4.32 m
Tear-out force
58.5 kN
Bucket width
0.6 m
Travel speed
20 km/h
Engine manuf.
Deutz
Engine type
TCD3.6 L4
Engine power
85 kW
Displacement
3.6 l
Revolutions at max torque
2000 rpm
Max. torque
400/1600 Nm
No. of cylinders
4

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, model series, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
Yes

Download datasheets (PDF)

Schaeff TW 110 FAQ

When was the Schaeff TW 110 manufactured?

The Schaeff TW 110 was first produced in 2017.

How much does the Schaeff TW 110 weigh?

The Schaeff TW 110 weighs 11 tons.

What are the transport dimensions of the Schaeff TW 110 wheel excavator?

The Schaeff TW 110 has a transport length of 6.8 meters, a transport width of 2.5 meters, and a transport height of 2.99 meters.

What is the travel speed of the Schaeff TW 110 wheel excavator?

The Schaeff TW 110 has a travel speed of 20 km/h.

What are the undercarriage specifications of the Schaeff TW 110 wheel excavator?

The Schaeff TW 110 wheel excavator is equipped with 9.00-20 standard tyres and has 2 outrigger stabilisers.

What are the excavation performance specifications of the Schaeff TW 110 wheel excavator?

The Schaeff TW 110 has a dredging depth of 4.32 meters, a maximum horizontal reach of 8.3 meters, and features an adjustable boom.

What power ratings are available for the Schaeff TW 110 wheel excavator?

There are no power ratings available for the Schaeff TW 110 wheel excavator in the provided data.

What are the specifications of the primary work tool on the Schaeff TW 110 wheel excavator?

The primary work tool of the Schaeff TW 110 has a bucket capacity of 0.254 cubic meters and a bucket width of 0.6 meters.

How much is a Schaeff TW 110 Wheel excavator (2017u20132025) worth?

The residual value of the Schaeff TW 110 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
