TW 95 Schaeff Excavator Specs & Dimensions - (2017 - 2026)

Schaeff is the manufacturer of the wheel excavator model TW 95. Find and download detailed specs and data sheets for this machine …

Schaeff is the manufacturer of the wheel excavator model TW 95. Find and download detailed specs and data sheets for this machine here.

This wheel excavator is built to provide up to 74.4kW or 99 horse power, delivered from its powerful Deutz engine to the 8.6t TW 95 machine. The Schaeff TW 95 can be grouped in the smallest machine segment in the wheel excavators category. The model's dimensions are 6.3m x 2.45m x 2.93m. The bucket capacity of TW 95 is 0.127m³, which is above average for this type of machine.

The Schaeff TW 95 has been equipped and sold with Overload alert, Quick hitch mech. And Blade. Quick hitch hydr., Material Handling Excavator and Diesel particulate filter are not provided on this model as of 2017. There are more detailed specifications and machine descriptions available in the original Schaeff TW 95 specs data sheet. You can download it for free in English, French and German on LECTURA Specs.

The production is still going in 2017, where this TW 95 is available at a new list price between €141000 and €179000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, 3 other wheel excavators, which range from 7.4t up to 11t are produced by Schaeff. Of these, TW 75, TW 95 and also TW 110 are the most frequently visited on LECTURA Specs. This TW 95 wheel excavator, which has been in production between 2017 and 2017 ranks in the LECTURA index at #111. Want more detailed specifications? Download the latest Schaeff TW 95 specs data sheet on LECTURA Specs today!

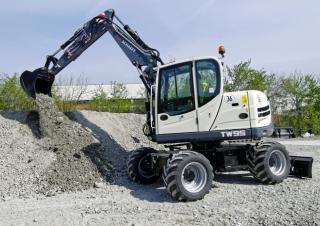

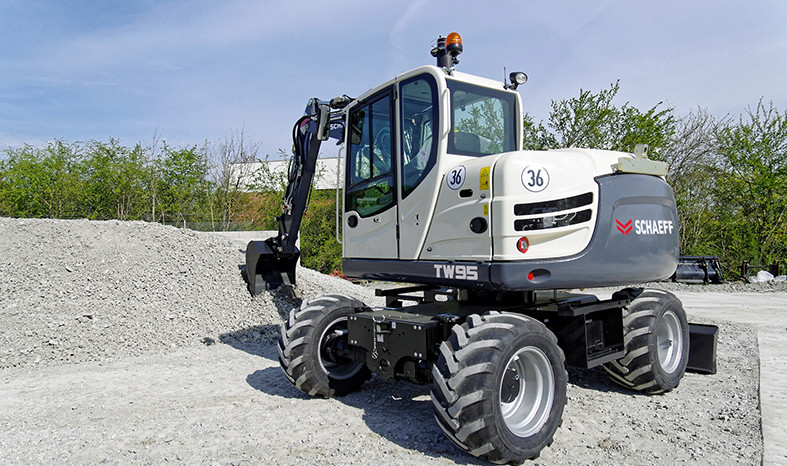

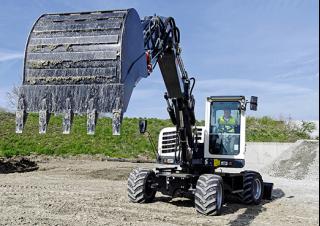

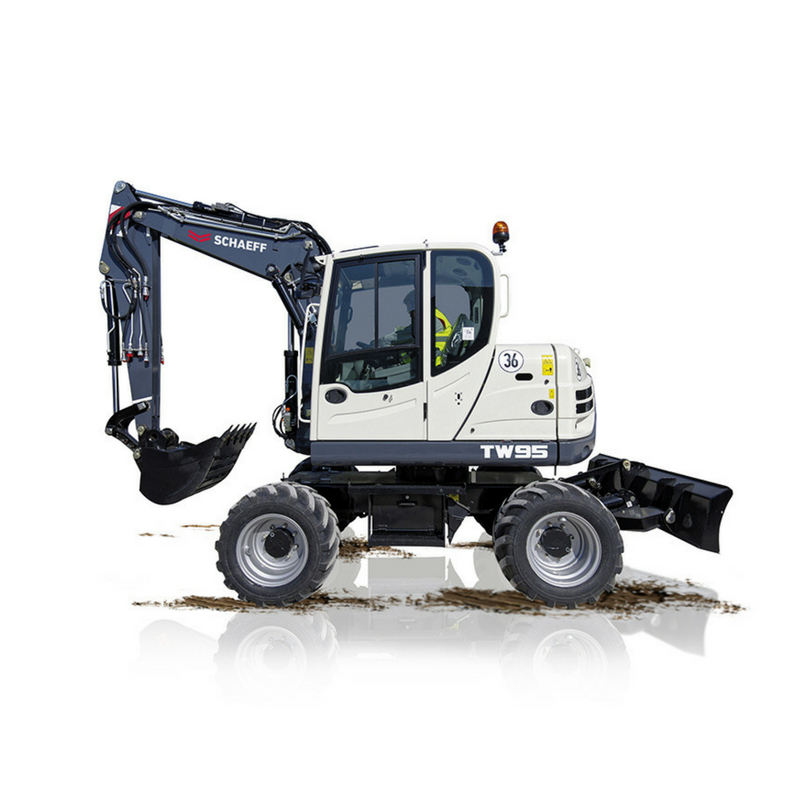

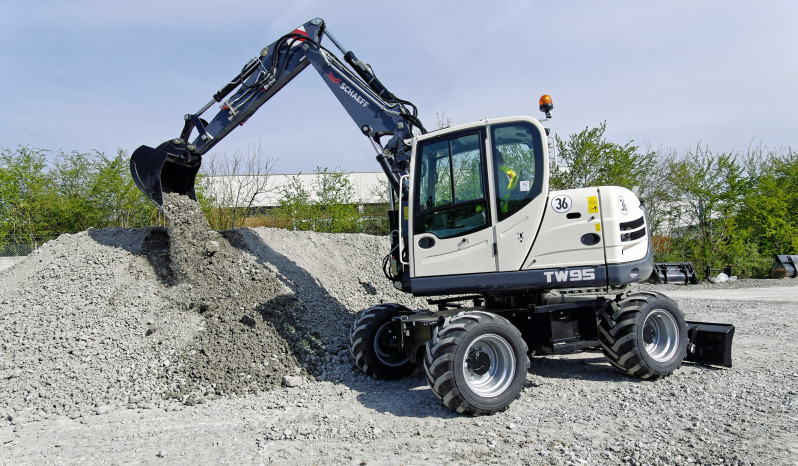

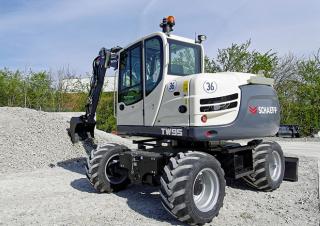

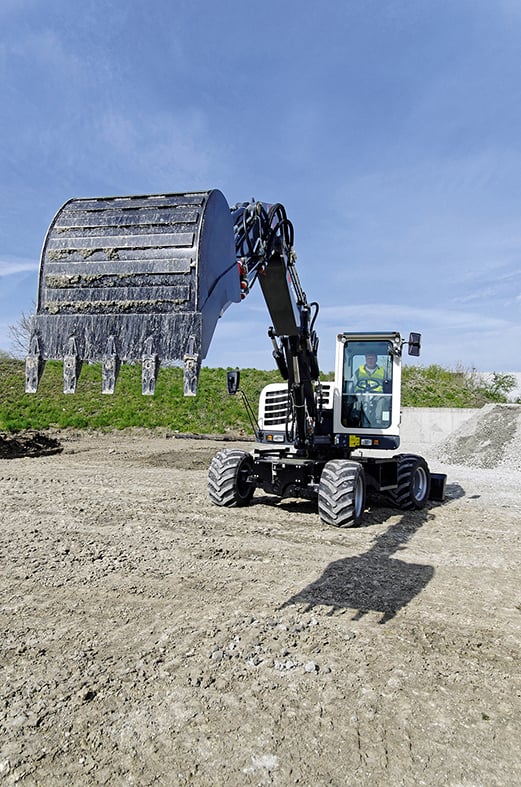

Wheel Excavators Schaeff TW 95
Wheel Excavators Schaeff TW 95
Wheel Excavators Schaeff TW 95
Wheel Excavators Schaeff TW 95
Wheel Excavators Schaeff TW 95
Wheel Excavators Schaeff TW 95
Wheel Excavators Schaeff TW 95
Wheel Excavators Schaeff TW 95
Wheel Excavators Schaeff TW 95
Wheel Excavators Schaeff TW 95

Technical specs - TW 95 Schaeff

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.3 t
Standard tyres
8.25-20
Bucket capacity
0.127 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
5.57 m
Transport width
2.45 m
Transport height
2.93 m
Max. Reach horizontal
7.58 m
Dredging depth
4.08 m
Tear-out force
42.6 kN
Bucket width
0.4 m
Travel speed
20 km/h
Engine manuf.
Deutz
Engine type
TCD3.6 L4
Engine power
74 kW
Displacement
3.6 l
Revolutions at max torque
1600 rpm
No. of cylinders
4
Emission level
V/Tier 4 f

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
Yes

Download datasheets (PDF)

Schaeff TW 95 FAQ

When was the Schaeff TW 95 manufactured?

The Schaeff TW 95 was first produced in 2017.

How much does the Schaeff TW 95 wheel excavator weigh?

The Schaeff TW 95 wheel excavator weighs 9.3 tons.

What are the transport dimensions of the Schaeff TW 95 wheel excavator?

The Schaeff TW 95 has a transport length of 5.57 meters, a transport width of 2.45 meters, and a transport height of 2.93 meters.

What is the travel speed of the Schaeff TW 95 wheel excavator?

The Schaeff TW 95 has a travel speed of 20 km/h.

What are the undercarriage specifications of the Schaeff TW 95 wheel excavator?

The Schaeff TW 95 wheel excavator is equipped with 8.25-20 standard tyres and has 2 outrigger stabilisers.

What are the excavation performance specifications of the Schaeff TW 95 wheel excavator?

The Schaeff TW 95 wheel excavator has a dredging depth of 4.08 meters, a maximum horizontal reach of 7.58 meters, and features an adjustable boom.

What are the power ratings of the Schaeff TW 95 wheel excavator?

The source data does not provide power rating information for the Schaeff TW 95 wheel excavator.

What are the specifications of the bucket on the Schaeff TW 95 wheel excavator?

The bucket of the Schaeff TW 95 has a capacity of 0.127 cubic meters and a width of 0.4 meters.
