EW 100 Wacker Neuson Excavator Specs & Dimensions - (2014 - 2020)

Manufactured by Wacker-Neuson, this is the EW 100 wheel excavator. Find and download detailed specs and data sheets for this machi…

Manufactured by Wacker-Neuson, this is the EW 100 wheel excavator. Find and download detailed specs and data sheets for this machine here.

This wheel excavator is built to provide up to 55kW or 73 horse power, delivered from its powerful Perkins engine to the 9.85t EW 100 machine. This Wacker-Neuson wheel excavator belongs to the smallest machine segment in the wheel excavators category. The EW 100’s size is 2.465m x 6.656m x 2.98m. The bucket capacity of EW 100 is 0,27 - 1m³, which is above average for this type of machine.

The Wacker-Neuson EW 100 has been equipped and sold with Quick hitch hydr., Blade and Overload alert. It does not include Quick hitch mech., Cabin adjustment and Track guidance. There are more detailed specifications and machine descriptions available in the original Wacker-Neuson EW 100 specs data sheet. Download a free data sheet in Italian, English, Spanish, German and French from LECTURA Specs.

The production is still going in 2017, where this EW 100 is available at a new list price between €128000 and €163000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Wacker-Neuson currently produces 1 other wheel excavators, which range from 7t up to 7t - the most visited on LECTURA Specs are EW 65. This EW 100 wheel excavator, which has been in production between 2014 and 2017 ranks in the LECTURA index at #5. Want more detailed specifications? Download the latest Wacker-Neuson EW 100 specs data sheet on LECTURA Specs today!

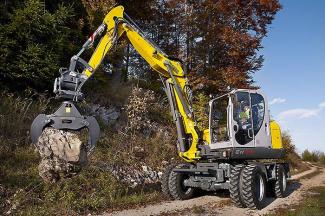

Wheel Excavators Wacker Neuson EW 100

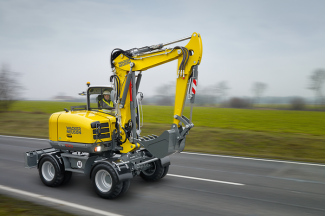

Wheel Excavators Wacker Neuson EW 100
Wheel Excavators Wacker Neuson EW 100
Wheel Excavators Wacker Neuson EW 100
Wheel Excavators Wacker Neuson EW 100
Wheel Excavators Wacker Neuson EW 100
Wheel Excavators Wacker Neuson EW 100
Wheel Excavators Wacker Neuson EW 100
Wheel Excavators Wacker Neuson EW 100
Wheel Excavators Wacker Neuson EW 100

Visit Wacker Neuson live at

Technical specs - EW 100 Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.81 t
Standard tyres
8.25/ 20-14 PR
Boom
VA
Outrigger stabilisers
2/4 2/4-fold
Transport length
6.656 m
Transport width
2.454 m
Transport height
2.989 m
Max. Reach horizontal
7.602 m
Dredging depth
3.941 m
Tear-out force
40.34 kN
Travel speed
20 km/h
Model series
EW
Engine manuf.
Perkins
Engine type
854E-E34TAWF
Engine power
55 kW
Displacement
3.3 l
Revolutions at max torque
1700 rpm
Emission level
Tier 4f

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Wacker Neuson EW 100 FAQ

When was the Wacker Neuson EW 100 manufactured?

The Wacker Neuson EW 100 was manufactured from 2014 to 2020.

How much does the Wacker Neuson EW 100 weigh?

The Wacker Neuson EW 100 weighs 9.81 tons.

What are the transport dimensions of the Wacker Neuson EW 100?

The Wacker Neuson EW 100 has a transport length of 6.66 meters, a transport width of 2.45 meters, and a transport height of 2.99 meters.

What is the travel speed of the Wacker Neuson EW 100 wheel excavator?

The Wacker Neuson EW 100 has a travel speed of 20 km/h.

What are the undercarriage specifications of the Wacker Neuson EW 100?

The Wacker Neuson EW 100 is equipped with standard tyres sized 8.25/ 20-14 PR and has 2-fold or 4-fold outrigger stabilisers.

What are the excavation performance specifications of the Wacker Neuson EW 100 wheel excavator?

The Wacker Neuson EW 100 has a dredging depth of 3.941 meters, a maximum horizontal reach of 7.602 meters, and features an adjustable boom.

What is the tear-out force of the Wacker Neuson EW 100?

The Wacker Neuson EW 100 has a tear-out force of 40.34 kN. The source data does not provide power ratings for this machine.

How much is a Wacker Neuson EW 100 Wheel excavator (2014u20132020) worth?

The residual value of the Wacker Neuson EW 100 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
