M322D2 Caterpillar Excavator Specs & Dimensions - (2017 - 2026)

Weight: 22.5t – Standard tyres: 11.00-20  – Bucket capacity: 1.19m³ – Boom: VA – Outrigger stabilisers: 22/4-fold – Transport leng…

Weight: 22.5t – Standard tyres: 11.00-20  – Bucket capacity: 1.19m³ – Boom: VA – Outrigger stabilisers: 22/4-fold – Transport length: 9.43m

Check out detailed dimensions, specifications, information and technical data for Caterpillar M322D2 excavator manufactured between 2017 - 2026. Get more in-depth insight with Caterpillar M322D2 digger specifications. See information, like: Weight: 22.5t – Standard tyres: 11.00-20  – Bucket capacity: 1.19m³ – Boom: VA – Outrigger stabilisers: 22/4-fold – Transport length: 9.43m and more.

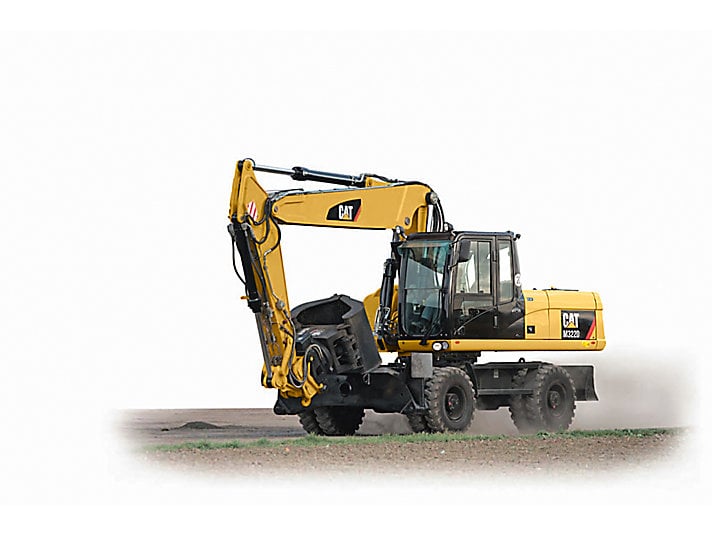

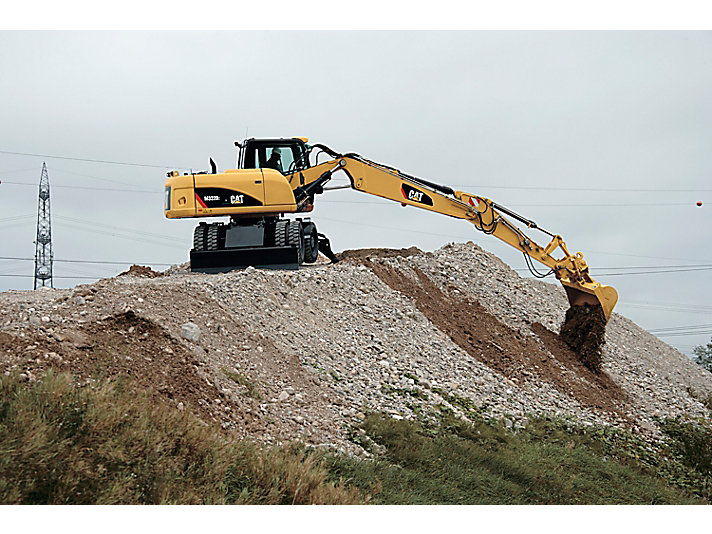

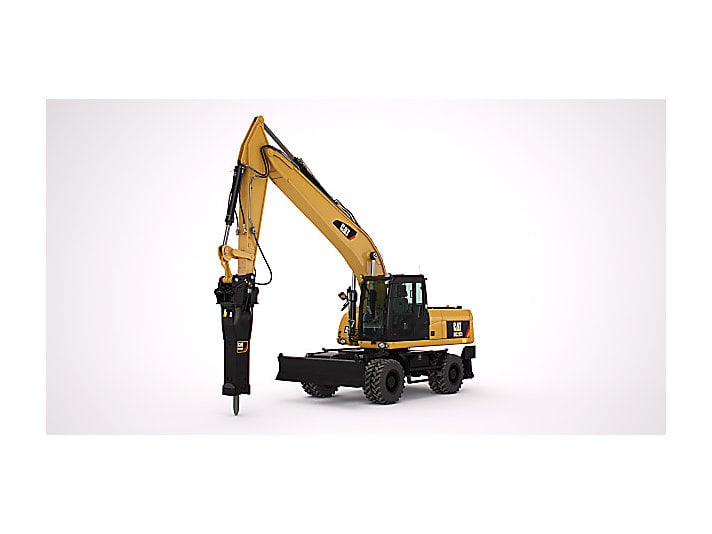

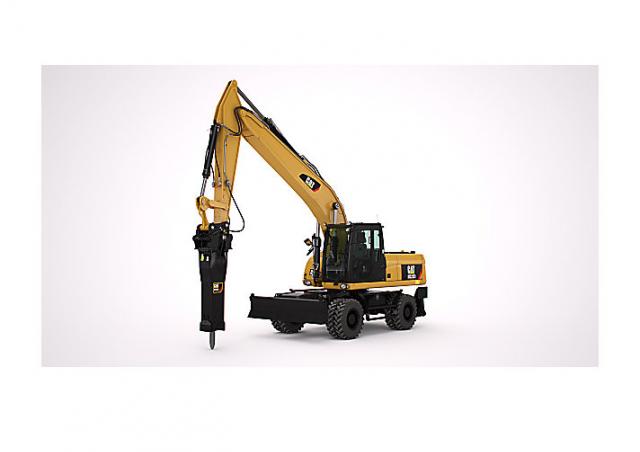

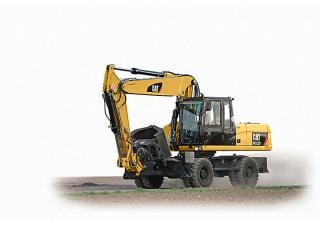

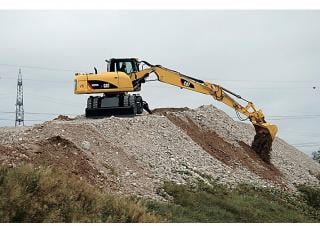

Wheel Excavators Caterpillar M322D2
Wheel Excavators Caterpillar M322D2
Wheel Excavators Caterpillar M322D2
Wheel Excavators Caterpillar M322D2
Wheel Excavators Caterpillar M322D2
Wheel Excavators Caterpillar M322D2

Technical specs - M322D2 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.5 t
Standard tyres
11.00-20
Bucket capacity
1.19 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
9.43 m
Transport width
2.75 m
Transport height
3.33 m
Max. Reach horizontal
10.32 m
Dredging depth
6.68 m
Tear-out force
152 kN
Bucket width
1.2 m
Dipper length
2.2 m
Turning radius outside
6.8 m
Travel speed
25 km/h
Engine manuf.
Caterpillar
Engine type
C7.1 Acert
Engine power
122 kW
Displacement
7.01 l
Max. torque
868/1400 Nm
No. of cylinders
6
Cylinder bore x stroke
105x135 mm
Emission level
Tier 3/EU IIIA/China III Nonroad

More technical details, like: bucket capacity min., bucket capacity max., turning radius inside, model series, dimension lxwxh, revolutions at max torque are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar M322D2 FAQ

When was the Caterpillar M322D2 manufactured?

The Caterpillar M322D2 was first produced in 2017.

How much does the Caterpillar M322D2 wheel excavator weigh?

The Caterpillar M322D2 wheel excavator weighs 22.5 tons.

What are the transport dimensions of the Caterpillar M322D2 wheel excavator?

The Caterpillar M322D2 has a transport length of 9.43 meters, a transport width of 2.75 meters, and a transport height of 3.33 meters.

What is the travel speed of the Caterpillar M322D2 wheel excavator?

The Caterpillar M322D2 wheel excavator has a travel speed of 25 km/h.

What is the average fuel consumption of the Caterpillar M322D2 wheel excavator?

The Caterpillar M322D2 wheel excavator has an average fuel consumption of 20 liters per hour.

What are the undercarriage specifications of the Caterpillar M322D2 wheel excavator?

The Caterpillar M322D2 wheel excavator is equipped with 11.00-20 standard tyres and has 2 outrigger stabilisers.

What is the turning radius of the Caterpillar M322D2 wheel excavator?

The Caterpillar M322D2 has an outside turning radius of 6.8 meters.

What are the excavation performance specifications of the Caterpillar M322D2 wheel excavator?

The Caterpillar M322D2 has an adjustable boom, a dredging depth of 6.68 meters, a maximum horizontal reach of 10.32 meters, and a dipper length of 2.2 meters.

What is the tear-out force of the Caterpillar M322D2 wheel excavator?

The Caterpillar M322D2 wheel excavator has a tear-out force of 152 kN.

What are the bucket specifications of the Caterpillar M322D2 wheel excavator?

The Caterpillar M322D2 has a bucket capacity of 1.19 cubic meters and a bucket width of 1.2 meters.
