Top 10 Most Popular Aerial Work Platforms on LECTURA Specs in 2024

In the first half of 2024, we analysed the website traffic on LECTURA Specs in order to determine the most popular Aerial Work Platform (AWP) models. LECTURA Specs, the largest database of construction equipment, agricultural machines, forklifts, cranes, and other heavy machinery specifications, provided a comprehensive overview of user interest based on the number of views each AWP model received. This data-driven approach allowed us to identify the top 10 most popular AWP models, reflecting the opinions of numerous professionals from the heavy machinery industry.

Aerial Work Platforms, commonly known as AWPs, are economical and portable machines designed to lift one to five workers. These machines, also referred to as aluminium products, manlifts, personnel lifts, lifts, push-arounds, and mobile elevating work platforms (MEWPs), are primarily used for overhead maintenance, cleaning, and hanging signs or decorations. The three main types of aerial lift equipment include scissor lifts, boom lifts, and truck-mounted lifts, each with unique features suited for different operations. The choice of aerial lift depends on factors such as load capacity, work site conditions, and specific application requirements.

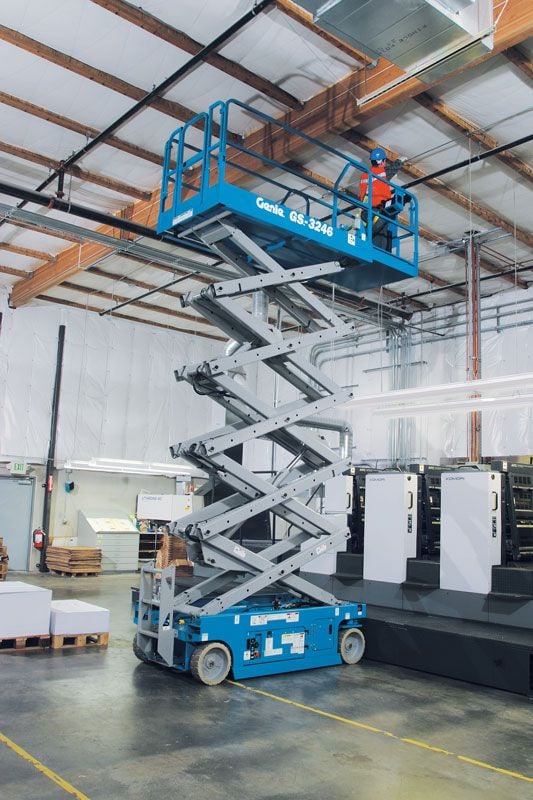

The Genie GS-3246 is a wheeled scissor lift that has been in production since 2021. This model offers a working height of 11.78 metres, making it suitable for a range of overhead tasks. The platform measures 2.26 metres in length and 1.17 metres in width, providing ample space for up to two workers.

In terms of transport dimensions, the GS-3246 has a height of 2.44 metres, a width of 1.18 metres, and a transport height of 1.82 metres. The machine weighs 2,367 kilograms and has a net load capacity of 318 kilograms. It can travel at speeds up to 4 kilometres per hour.

Additional features include an IPAF 3a rating, foldable handrails, and various optional accessories such as Lift Tools Productivity Tools, Lift Connect Telematics, and the Tech Pro Link Handheld Device. For more detailed specifications, you can visit the LECTURA Specs page for the Genie GS-3246.

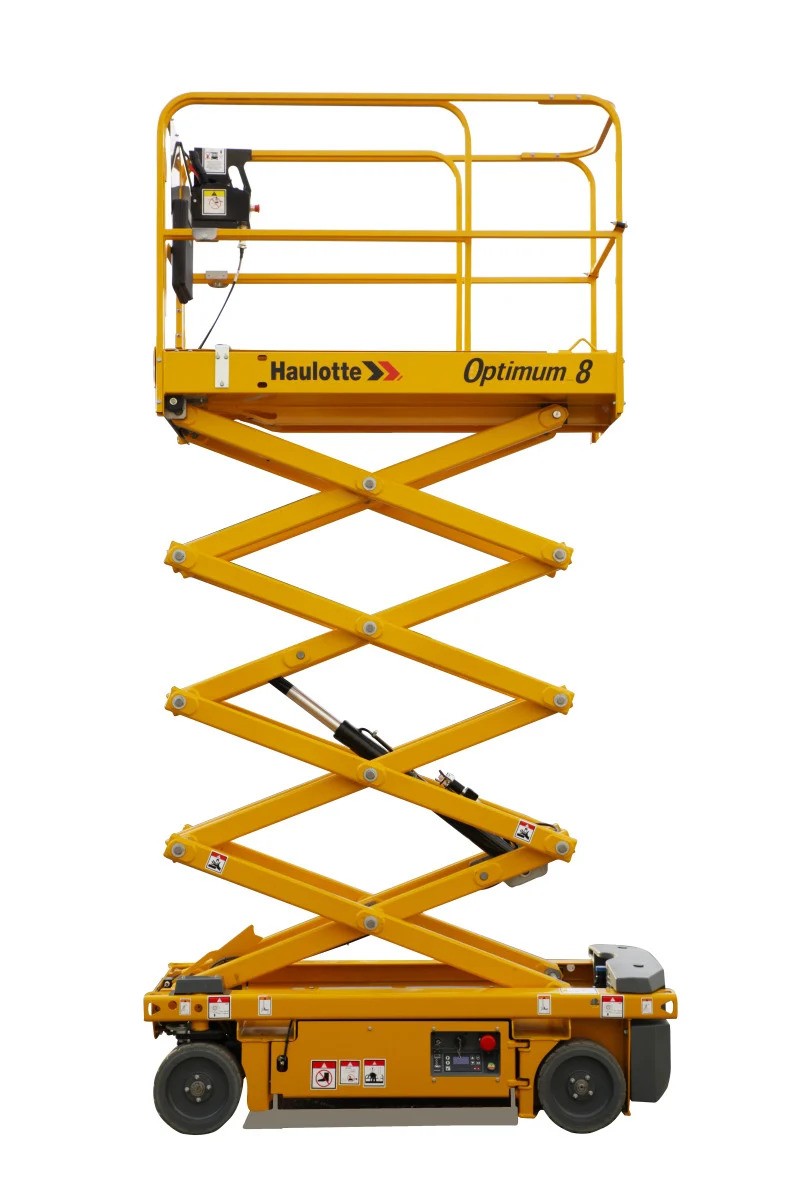

The ninth Aerial Work Platform on our list is the Haulotte Optimum 8, a wheeled scissor lift manufactured by Haulotte since 2002. This model features a working height of 7.77 metres, making it suitable for various overhead tasks. The platform measures 1.72 metres in length and 0.79 metres in width, providing enough workspace for one or two workers.

In terms of transport dimensions, the Optimum 8 has a height of 1.84 metres and a width of 0.76 metres, with a transport height of 1.9 metres. The machine weighs 1,590 kilograms and has a net load capacity of 230 kilograms. It can travel at speeds up to 4.5 km/h, powered by a Kohler KDI 2504 engine that delivers 48 kW of power.

Additional features of the Haulotte Optimum 8 include IPAF 3a certification, pothole guards, a battery charge indicator, a tilt controller, towing hooks, a flashing light, a travel alarm, and a working light. For more detailed specifications, you can visit the LECTURA Specs page.

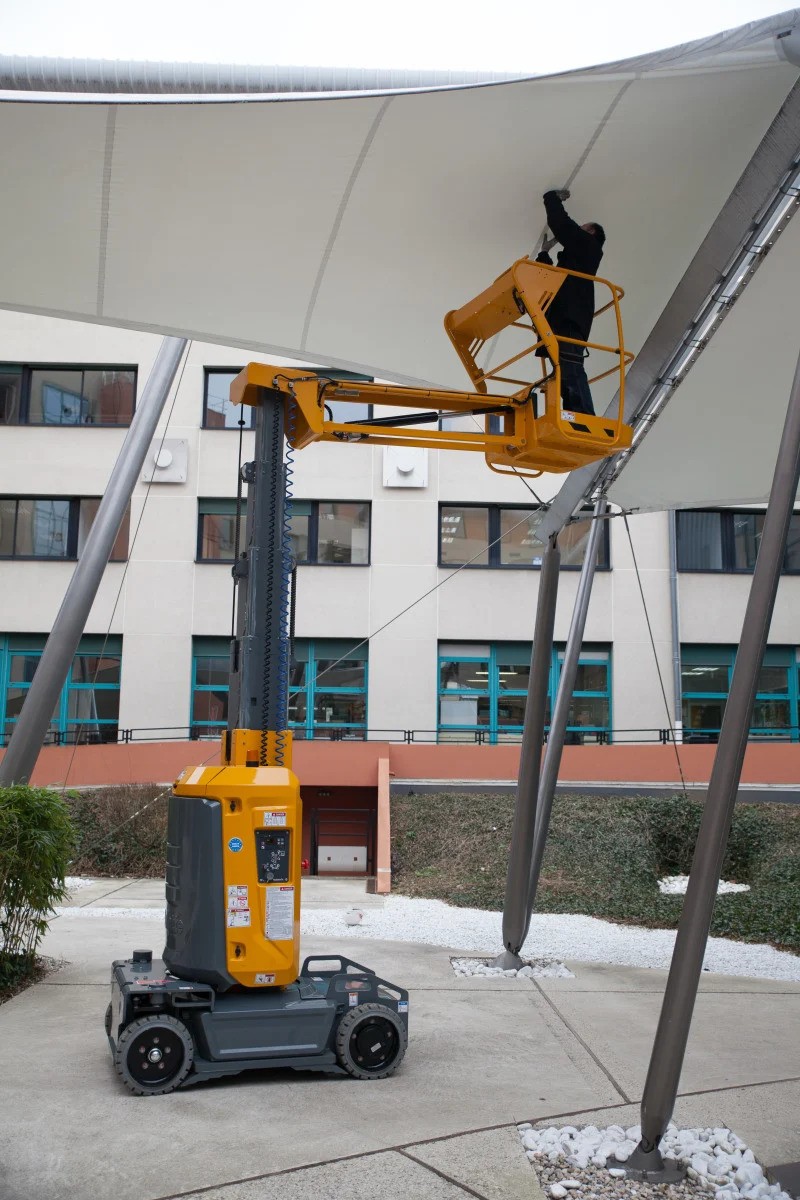

The Haulotte Star 10, a single vertical mast boom lift, has been a notable model in the aerial work platform market since its introduction in 2011. This model, part of the Star series, offers a working height of 10 metres, making it suitable for various challenging jobs. The platform dimensions are 0.98 metres in length and 0.78 metres in width, providing adequate space for one person, as specified by its design.

In terms of transport dimensions, the Star 10 measures 2.7 metres in height, 1 metre in width, and 1.99 metres in height, with a total weight of 2,677 kilograms. The machine is equipped with progressive electric drive AC motors and features a 3-metre outreach vertical jib. It also includes the Haulotte Activ'Screen for onboard diagnostics, enhancing its operational efficiency.

The Star 10 boasts a 25% gradeability and is powered by a 24 V electric drive system, supported by 24 V – 250 Ah traction batteries and a 35 A battery charger. The machine is designed with two front driving wheels and two rear steering wheels, and it comes with additional features such as a horn, travel alarm, and working light. For more detailed specifications, you can visit the LECTURA Specs page for the Haulotte Star 10.

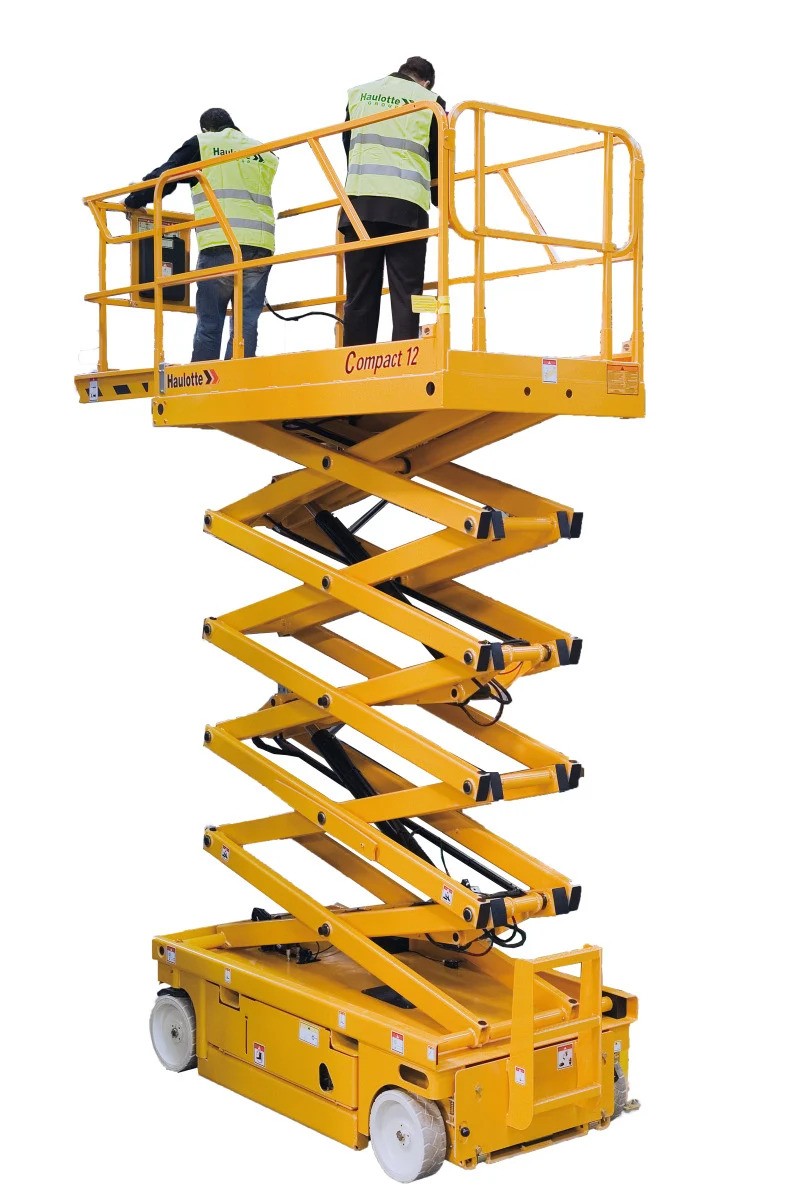

The seventh Aerial Work Platform on our list is the Haulotte Compact 12, a wheeled scissor lift manufactured by Haulotte. This model has been in production since 2000 and features a working height of 11.75 metres. The platform measures 2.4 metres in length and 1.17 metres in width, providing a spacious area for up to three persons.

In terms of transport dimensions, the Haulotte Compact 12 has a height of 2.48 metres and a width of 1.2 metres, with a transport height of 2.38 metres. The machine weighs 2,940 kilograms and has a net load capacity of 320 kilograms. It can travel at a speed of 4.2 km/h, powered by a Kohler KDI 2504 engine that delivers 48 kW of power.

Additional features of the Haulotte Compact 12 include its IPAF 3a certification, the ability to be driven at full height, long working cycles, pothole guards, a swing-out component tray, a free-wheeling device, centralised battery filling, and an hour metre. For more detailed specifications, you can visit the LECTURA Specs page for the Haulotte Compact 12.

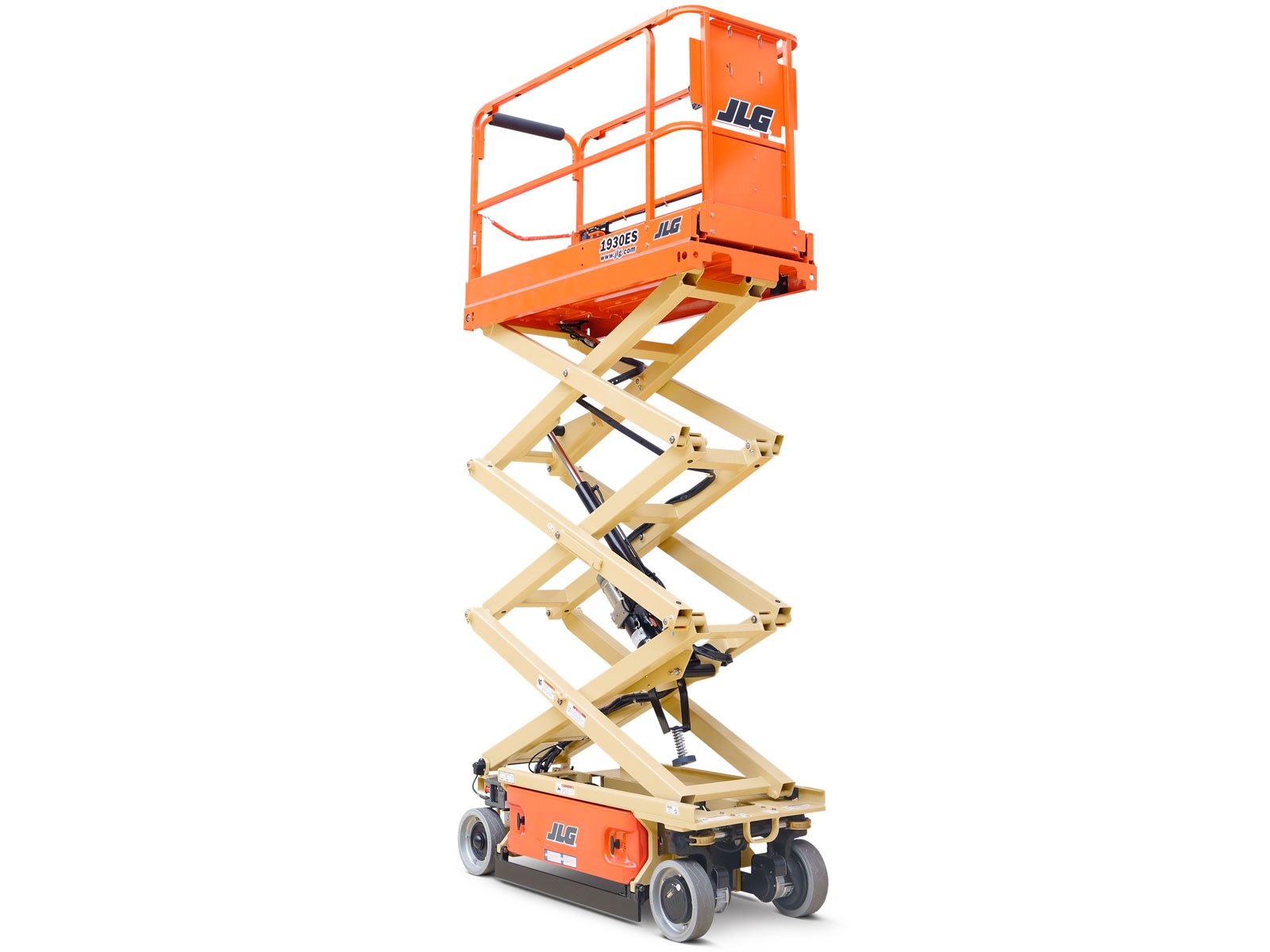

The JLG 1930ES, a wheeled scissor lift manufactured by JLG, ranks sixth on our list of the most popular Aerial Work Platforms in the first half of 2024. This model was produced from 2005 to 2021 and is designed to provide a working height of 7.72 metres. The platform dimensions are 0.76 metres in length and 1.87 metres in width, making it suitable for accommodating up to two workers.

In terms of transport dimensions, the JLG 1930ES has a height of 1.87 metres, a width of 0.76 metres, and a transport height of 1.52 metres. The machine weighs 1,550 kilograms and has a net load capacity of 230 kilograms. It can travel at a speed of 4.8 kilometres per hour, powered by a Kohler KDI 2504 engine, part of the ES model series.

Additional features of the JLG 1930ES include an IPAF 3a rating, a half swing gate, lanyard attachment points, a joystick enable for lift and drive, a load sensing system, an AC cable to the platform, manual descent, and non-marking solid tires (323 x 100). The lift is equipped with 4 x 6V 220 A/hr batteries. For more detailed specifications, you can visit the LECTURA Specs page for the JLG 1930ES.

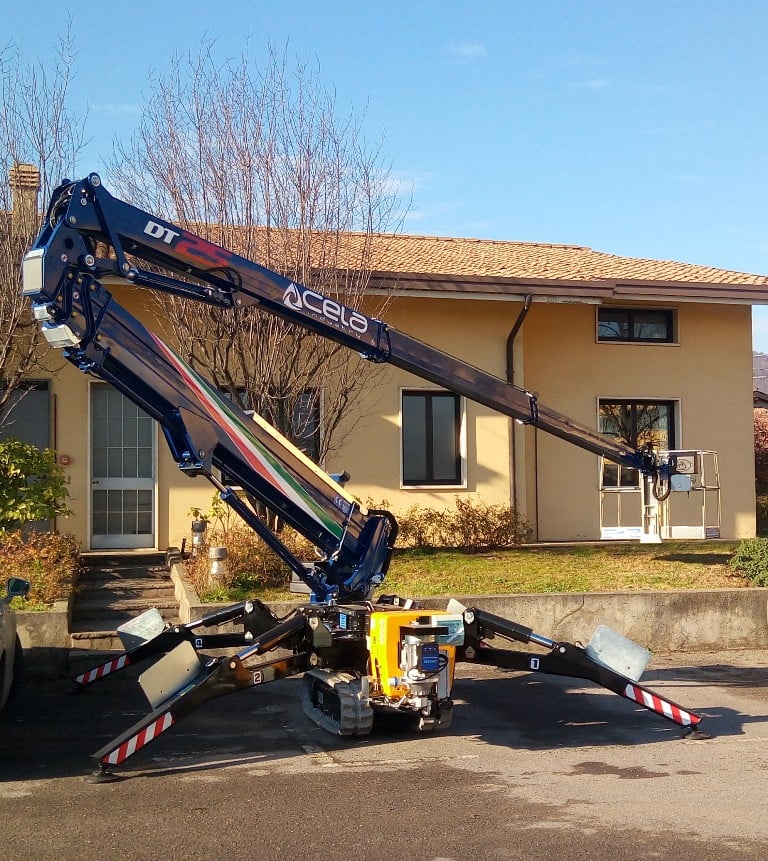

The fifth Aerial Work Platform on our list is the CELA DT25 Spyder, a crawler articulating boom lift manufactured by CELA since 2016. This model features a working height of 25 metres, making it suitable for a range of jobs at heights. The platform dimensions are 1.4 metres in length and 0.7 metres in width, providing adequate space for up to two workers.

In terms of transport dimensions, the DT25 Spyder has a height of 4.85 metres, a width of 0.8 metres, and a height of 1.98 metres. The machine weighs 2,960 kilograms and has a net load capacity of 230 kilograms. The brace support dimensions are both 3.6 metres in length and width, ensuring stability during operation. The boom lift offers a rotation of 720 degrees, enhancing its operational flexibility.

Additional features of the DT25 Spyder include an articulated cage boom, GSM/3G remote diagnostic capabilities, automatic stabilization, and data transmission. It also comes equipped with a 230 V electric hour meter. The model is part of the DT series and is classified under IPAF 3a. For more detailed specifications, you can visit the LECTURA Specs page for the CELA DT25 Spyder.

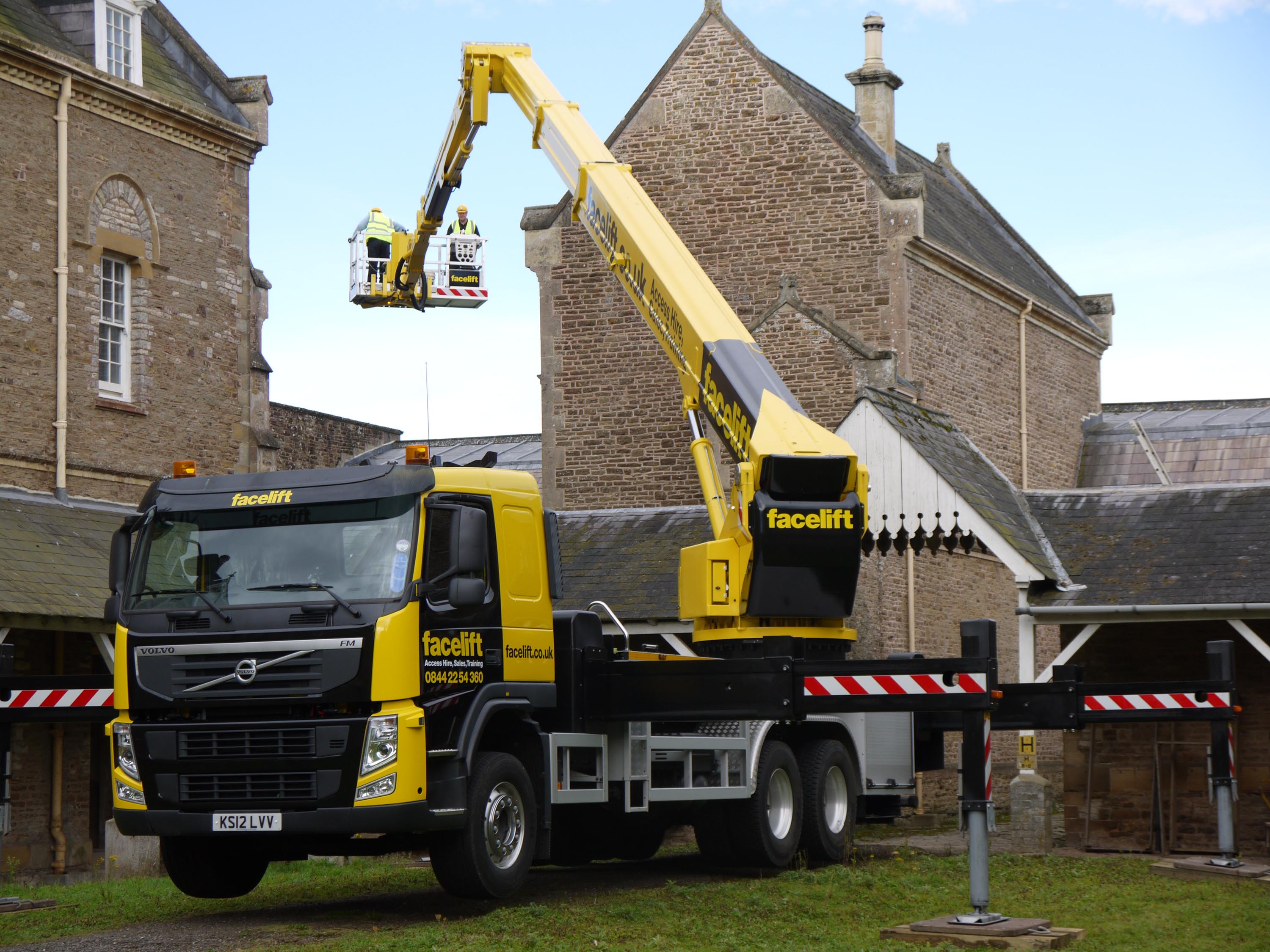

The Bronto Skylift S 50 XDTJ is a truck-mounted telescopic boom lift, manufactured by Bronto from 2011 to 2018. This model features a working height of 49.5 metres and a platform that measures 2.4 metres in length and 1.05 metres in width. The gross vehicle weight of the Skylift S 50 XDTJ is 26 tons, and it has a net load capacity of 700 kilograms, accommodating up to seven persons.

The platform extension reaches 1.3 meters, and the maximum horizontal reach is 35.4 meters. The truck's wheelbase is 5.1 meters. This model belongs to the S series and includes additional features such as an IPAF 1b certification, an articulated cage boom, variable jacking, automatic leveling, and a precise control system. It also offers a variety of optional equipment, including a B-WRC Wireless Remote Control and a 6.5 kVA power supply (230 V / 400 V / 50Hz). For more detailed specifications, you can visit the LECTURA Specs page for the Bronto Skylift S 50 XDTJ.

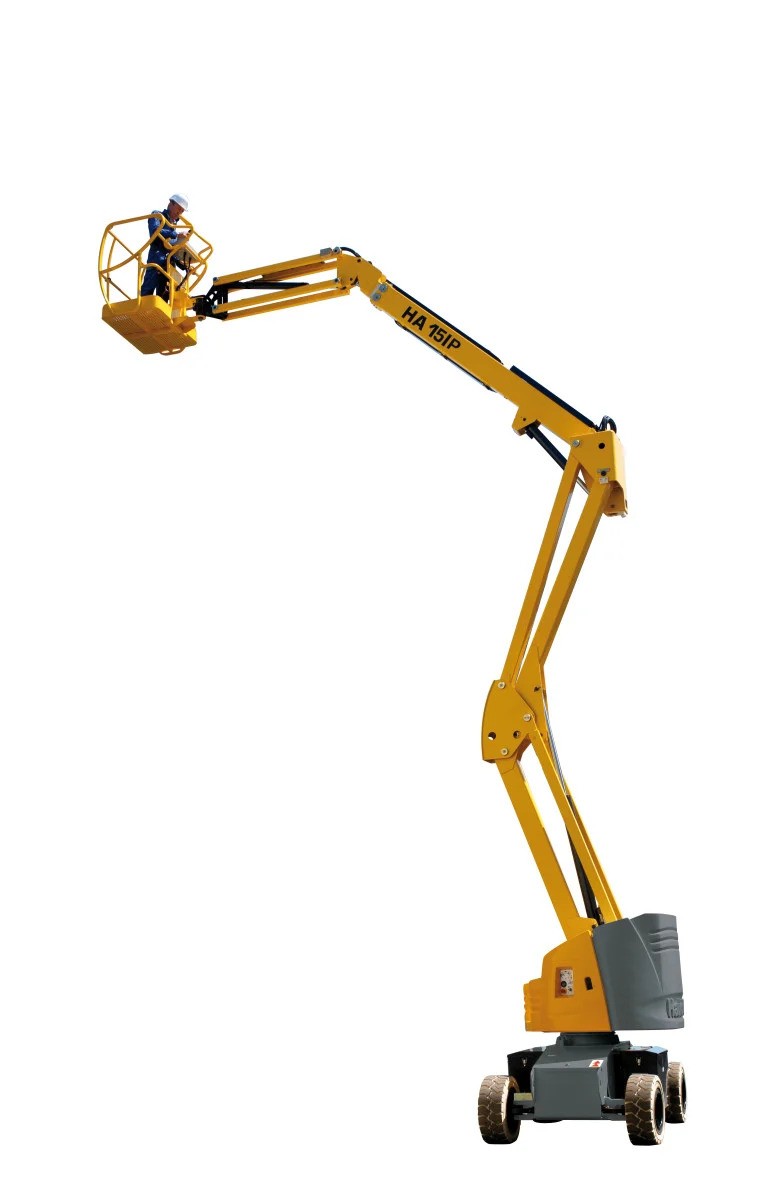

The Haulotte HA15 IP, a wheeled articulating boom lift, ranks third on our list of the most popular Aerial Work Platforms in the first half of 2024. Manufactured by Haulotte from 2004 to 2020, this model features a working height of 15 metres, making it suitable for a range of overhead tasks. The platform measures 1.2 metres in length and 0.8 metres in width, which is suitable for two workers.

In terms of transport dimensions, the HA15 IP has a height of 6.6 metres, a width of 1.5 metres, and a transport height of 2 metres. The machine weighs 7,300 kg and has a net load capacity of 230 kg. It is powered by a Kohler KDI 2504 engine and is part of the IP model series.

Additional features include a 3b articulated cage boom, a 140° fly jib range of motion (+70°/-70°), a semi-traction battery, a 48 V – 50 A battery charger, non-marking tires, a slewing block pin, 360 Ah traction batteries, and the use of biodegradable oil. For more detailed specifications, you can visit the LECTURA Specs page for the Haulotte HA15 IP.

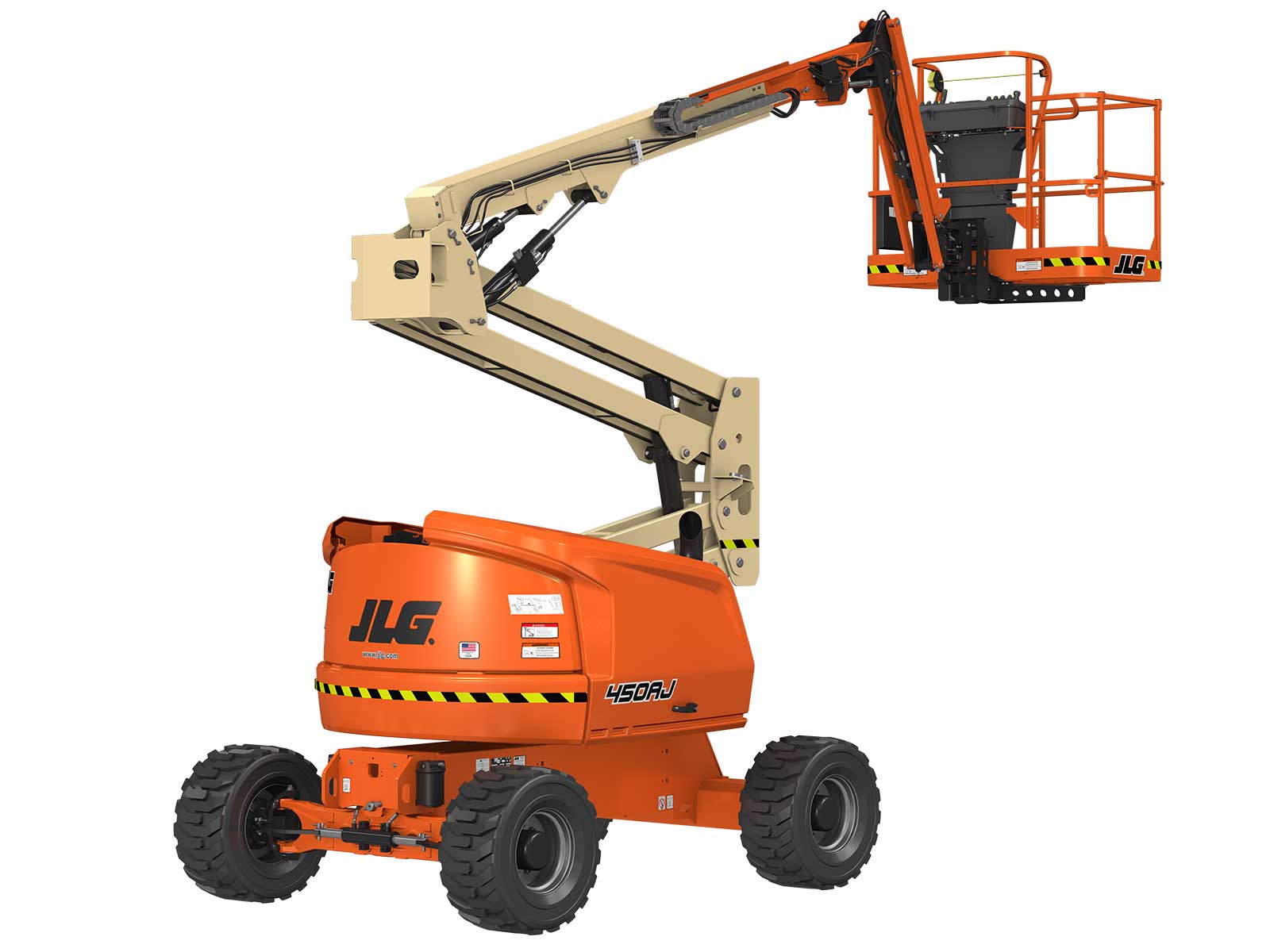

The JLG 450AJ, manufactured by JLG, is a wheeled articulating boom lift that was produced from 2016 to 2020. This model features a working height of 15.72 metres, making it suitable for a range of overhead tasks. The platform dimensions are 0.76 metres in length and 1.83 metres in width, providing room for one or two workers.

In terms of transport, the JLG 450AJ has a height of 6.71 metres, a width of 2.34 metres, and a height of 2.29 metres, with a total weight of 6,250 kilograms. The machine can support a net load of 250 kilograms and has a travel speed of 7.2 km/h. It is powered by a Deutz D2011 L04 engine, which delivers 48 kW (65 hp) of power.

The JLG 450AJ offers a maximum horizontal reach of 7.47 metres and a climbing ability of 45%. It belongs to the AJ model series and includes features such as a 3b articulated cage boom, multiple function operation, a 1.24-meter articulating jib, and a 170-degree powered platform rotator. Additional specifications include an AC power cable to the platform, a 4-degree tilt alarm, 33/1550 x 16.5 superwide foam-filled tires, 12V-DC auxiliary power, and four-wheel drive. For more detailed specifications, you can visit the LECTURA Specs page for the JLG 450AJ.

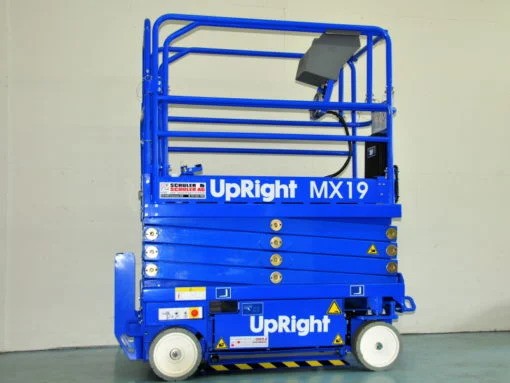

The UpRight MX 19 is a wheeled scissor lift that was manufactured from 1994 to 2010. This model has a working height of 7.8 metres, making it suitable for various applications at heights. The platform length is 2.54 metres and the platform width is 0.72 metres, designed to be used by up to two workers.

In terms of transport dimensions, the MX 19 has a height of 1.75 metres, a width of 0.76 metres, and a length of 2.13 metres. The machine weighs 1,460 kilograms and has a net load capacity of 227 kilograms. This model is part of the MX series and falls under the 3a category. For more detailed specifications, you can visit the LECTURA Specs page for the UpRight MX 19.

The following table provides a detailed comparison of the technical specifications for the top 10 most popular Aerial Work Platforms (AWPs) based on user views on LECTURA Specs in the first half of 2024. The comparison includes key parameters such as maximum working height, platform capacity, machine weight, and power source. This data aims to offer a clear and comprehensive overview of the capabilities and features of each model, assisting industry professionals in making informed decisions based on their specific operational needs and site requirements.

In the first half of 2024, our analysis of website traffic on LECTURA Specs revealed the top 10 most popular Aerial Work Platform (AWP) models. This data-driven approach provided valuable insights into current brand/model awareness and behaviour of heavy equipment professionals - the audience of LECTURA Specs. The list includes a diverse range of models, from scissor lifts and boom lifts to specialised equipment such as the CELA DT25 Spyder and Bronto Skylift S 50 XDTJ. Each model offers unique features tailored to specific operational needs, reflecting the varied requirements of different work environments.

We encourage our readers to visit the LECTURA Specs website to explore detailed specifications, datasheets, and technical information for these AWP models and other heavy machinery equipment. The comprehensive database is an invaluable resource for industry professionals seeking to make informed decisions based on accurate and up-to-date information. By leveraging the extensive data available on LECTURA Specs, users can better understand the capabilities and suitability of different machines for their specific applications.
