World's Top 10 Tallest Boom Lifts
(2026 update)

By Patrik Eder · Published: May 27, 2026

As of 2026, the world of aerial work platforms has reached spectacular heights, literally! For years, the industry’s “ceiling” was capped at the 180-foot class (55 m), but a wave of engineering breakthroughs has ushered in a new era of sky-high boom lifts. These towering machines are meeting the growing demands of modern energy, petrochemical, and high-rise infrastructure projects.

We’re counting down the top 10 self-propelled boom lifts that are currently dominating the commercial market. From the classic “Ultra-Boom” models to the latest powerhouse “Super-Booms,” these machines are redefining what it means to work above it all.

1. Zoomlion ZT82J - 82.3 m (270' 1")

2. Zoomlion ZT72J - 72.3 m (237' 2")

3. XCMG XGS70K - 69.6 m (228' 5")

4. Zoomlion ZT68J - 67.5 m (221' 5")

5. Snorkel 2100SJ - 66.0 m (216' 6")

6. Sinoboom TB58RJ Plus - 59.9 m (196' 6")

7. XCMG XGS58E - 58.6 m (192' 3")

8. JLG 1850SJ - 58.56 m (191' 0")

9. LGMG T56JE-2 - 57.7 m (189' 0")

10. Genie SX-180 - 56.9 m (186' 0")


Criteria for Defining the Tallest Boom Lifts

To put together this ranking, we analyzed a combination of reach height, load capacity, maneuverability, and industry reputation. The goal was to highlight machines that aren’t just tall, they’re reliable, efficient, and built for the toughest commercial applications.

Image source: Genie

Rounding out the top 10 is the Genie SX-180, which provides a maximum working height of 56.9 meters (186 feet). Despite being at the bottom of the list for height, the SX-180 remains one of the most reliable and frequently utilized machines in the global infrastructure sector.

Mechanical Reliability and Design

The SX-180 is noted for its 80-foot horizontal reach and 360-degree continuous turntable rotation. It features the Genie X-chassis system, which extends and retracts to provide a stable base during operation while narrowing for transport on a standard flatbed trailer. The machine is powered by a 74 hp turbo diesel engine and features four steering modes: front, rear, crab, and coordinated, providing the maneuverability required for complex industrial sites.

Deployment Use-Cases

The SX-180 is a staple for bridge inspections, oil and gas refinery maintenance, and heavy-duty construction projects. Its 750 lb (340 kg) unrestricted platform capacity is highly rated for its consistency throughout the working envelope. It is also one of the lighter machines in the super-boom class at 24,948 kg (55,000 lb), which makes it an attractive option for sites with specific floor loading requirements or for projects where logistics costs must be minimized.

Image source: LGMG

Ranking ninth is the LGMG T56JE-2, the first fully electric machine to enter the top 10 for 2026. With a working height of 57.7 meters (189 feet), the T56JE-2 represents a major breakthrough in the electrification of the super-boom category.

Electric Drive and Power Management

The T56JE-2 is powered by an 80-volt, 840Ah lithium-ion battery pack. This is paired with high-torque permanent magnet synchronous motors, which are significantly more energy-efficient than traditional AC or DC electric motors. This efficiency is what allows a machine of this height to operate through a full shift without recharging, a hurdle that previously limited electric booms to the 30-to-40-meter class.

The shift to electric power provides several distinct advantages for specific project types. In urban construction, the T56JE-2’s zero emissions and near-silent operation allow for night-time work or work near residential areas where diesel engine noise would be prohibited. Additionally, the lack of an internal combustion engine simplifies the maintenance profile of the machine, as there are no oil changes or engine air filters to manage.

Design and Outreach

The machine offers a maximum outreach of 23.9 meters and a dual platform capacity of 300 kg (unrestricted) and 450 kg (restricted). It incorporates a new parallelogram tower boom design that provides high rigidity and anti-torque performance, ensuring that the platform remains steady at nearly 19 stories high. The T56JE-2 includes standard four-wheel drive and steer, ensuring it remains capable on rough construction sites despite its electric powertrain.

Image source: JLG

The JLG 1850SJ ranks eighth. While it once stood as the tallest self-propelled boom in the world, its working height of 58.56 meters (approximately 191 feet) has now been surpassed by the aggressive height expansions of the last five years. However, the 1850SJ remains the most established and widely recognized super-boom in the 2026 global rental market.

Speed and Accessibility

The 1850SJ is particularly noted for its speed to full height, reaching its 185-foot platform height in less than five minutes. This efficiency is a primary driver for its continued popularity, as it allows operators to spend more time working and less time in the positioning phase. The machine features a telescopic jib that extends from 13 feet to 20 feet, providing a massive 2.9 million cubic feet of reachable workspace.

The JLG chassis engineering utilized on the 1850SJ includes axles that can extend or retract in approximately one minute. These are pivoting axles that do not telescope like those on other models, which JLG claims reduces complexity and maintenance requirements over the machine's life. The 1850SJ also features a state-of-the-art LCD platform display that provides operators with a graphic representation of their position within the working envelope.

Capacity and Tools

With a platform capacity of 1,000 lb (restricted) and 500 lb (unrestricted), the 1850SJ is capable of supporting heavy tools and materials. It often comes equipped with the JLG SkyPower system, which provides an integrated generator to power tools directly from the platform without the need for long extension cords. Its weight of 27,184 kg (59,900 lb) remains a benchmark for the 185-foot class.

Image source: XCMG

The XCMG XGS58E ranks seventh, with a working height of 58.6 meters (192 feet, 3 inches). This model is a core component of XCMG’s international rental fleet strategy, offering a balance of high reach and standardized components for easier global serviceability.

Operational Efficiency

The XGS58E provides a platform height of 56.6 meters and a horizontal reach of 24.0 meters. It utilizes a four-wheel drive and four-wheel steer chassis with solid rubber, foam-filled tires for rough terrain navigation. A key highlight of the XGS58E is its proportional dual leveling system, which manages both the telescopic crank and the work platform simultaneously, maintaining platform level within 2.5 degrees even during rapid boom extension.

Safety and Transport

The machine weighs 27,900 kg, allowing it to be transported on many standard three-axle trailers without the extreme logistical hurdles associated with the 40-ton "Mega" machines. It features an active defending protection system and an anti-crushing device for the operator, ensuring that the machine meets current safety mandates in European and North American markets. The 360-degree continuous turntable rotation and 160-degree platform rotation provide a high degree of positioning flexibility.

Image source: Sinoboom

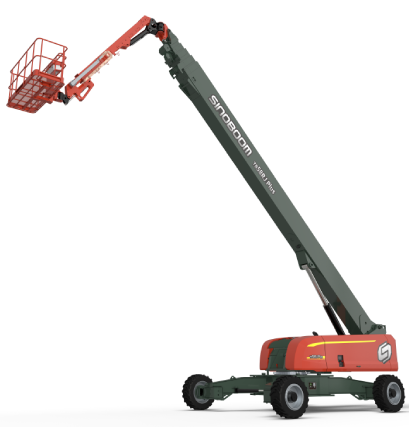

The Sinoboom TB58RJ Plus (also known as the TB1900RJ Plus) ranks sixth, providing a maximum working height of 59.9 meters (196 feet, 6 inches). This machine has been specifically marketed as a high-capacity solution for "ultra-tough" jobsites, including wind farms and large-scale industrial plants.

High-Capacity Engineering

As part of Sinoboom’s "Plus" series, the TB58RJ Plus focuses on maximizing the tools and personnel that can be carried to height. It features a platform capacity of 300 kg (unrestricted) and 454 kg (restricted), supported by a three-joystick proportional control system that allows for smooth, multi-functional boom operation. The machine is powered by a 74 kW diesel engine and features an active oscillating chassis that ensures all four wheels maintain contact with the ground on uneven terrain, a critical requirement for off-road construction sites.

Smart Diagnostics and Maintenance

Sinoboom has integrated a 7-inch intelligent display screen into the platform, providing real-time data on machine status and fault diagnosis. This "Smart Maintenance" feature allows workers to troubleshoot many issues under remote guidance, significantly reducing downtime on remote sites. The machine also features automotive-grade sleeves for all hydraulic pipes and wires, enhancing the durability of the internal systems against the abrasive dust and harsh weather conditions found on large construction projects.

Image source: Snorkel

Ranking fifth is the Snorkel 2100SJ, a machine that represents the pinnacle of North American boom lift engineering. With a working height of 66.0 meters (216 feet, 6 inches), the 2100SJ was designed to provide a high-reach solution with a focus on site maneuverability and patented steering technology.

Innovation in Maneuverability

The standout feature of the 2100SJ is its five steering modes, which include front axle, rear axle, crab, complementary, and a unique "lateral drive" mode. The lateral drive function allows the machine to move sideways along a building wall while the boom is extended, a feature that significantly improves productivity for tasks like painting or installing continuous facade panels.

The boom assembly consists of a four-section telescopic arm topped by a 9.1-meter (30-foot) articulating jib. This configuration provides a massive horizontal outreach of 35.1 meters (115 feet), one of the best in the entire super-boom category. This outreach capability is critical for projects where the machine's base cannot be positioned near the structure, such as bridge maintenance or working over water features.

Capacity and Reliability

The 2100SJ features a dual-capacity platform supporting 349 kg (770 lb) unrestricted and 454 kg (1,000 lb) restricted loads. It is one of the heaviest machines in the ranking, with a gross weight of 41,730 kg (92,000 lb). This weight is a result of its heavy-duty steel construction, intended for longevity in the high-demand rental market. The machine is powered by a 115 hp Kubota V3800 diesel engine and features the Snorkel Guard™ secondary guarding system to protect the operator from crushing hazards at height.

Holding the fourth position is the Zoomlion ZT68J, a machine tailored for high-rise facade maintenance and urban infrastructure projects. It offers a maximum working height of 67.5 meters (221 feet, 5 inches), effectively providing access to the 20th story of most commercial buildings.

Precision and Control

The ZT68J utilizes a five-section synchronously extending boom that offers a maximum horizontal outreach of 31 meters. It incorporates the same polygonal boom design as its larger counterparts, ensuring that even at its 67-meter peak, platform deflection is minimized. One of the most significant operational features is its ultra-slow stable extending speed of 0.015 mph (0.034 m/s), which allows operators to approach delicate building surfaces with millimeter precision.

The machine is built on the X-outrigger chassis, providing a maximum operational width of 16 feet 11 inches while retracting to a standard 8 feet 2 inches for transportation. This allows it to be driven onto standard trailers without the need for escort vehicles in many regions, a significant factor in total cost of ownership.

Technical Integration

The ZT68J features an intelligent four-wheel steering system where all wheel angles are automatically matched to ensure straight-line travel during boom extension. The power system is based on a Cummins F3.8 engine, providing 75 kW of power at 2200 rpm. The machine's platform is equipped with work lights and an anti-collision system as standard, reflecting its primary use-case in congested urban environments.

Image source: XCMG

The XCMG XGS70K (also designated as the XGS70E in certain markets) ranks third, with a working height of 69.6 meters (228 feet, 5 inches). This machine represents XCMG’s entry into the ultra-large MEWP category and has been extensively deployed in stadium construction and offshore port maintenance.

Mechanical Architecture

The XGS70K features a robust five-section telescopic boom, topped by a three-section heavy-duty articulating jib. The jib provides an articulation range of 131 degrees, offering exceptional flexibility for "under-bridge" or "over-stadium-rim" work. A key technical highlight of the XGS70K is its platform capacity. While most machines in this class are limited to 230 kg at maximum outreach, the XGS70K can sustain 460 kg (1,014 lb) at an outreach of 27 meters.

XCMG has focused heavily on the steering system for the XGS70K. The machine is equipped with wheels that can turn at least 90 degrees, which, when combined with its four-wheel drive and steer capability, allows it to pivot almost in place. This is a vital feature for working inside large industrial buildings where floor space is at a premium and obstacles are numerous.

Safety and Stability Systems

The machine incorporates an advanced load and amplitude limit detection system, which automatically prevents the boom from entering an unstable configuration based on the current platform weight. It also features a wire rope anti-loosening detection system, which is a specific maintenance and safety feature for the multi-section telescopic mechanism. The XGS70K is powered by a 74 kW Cummins diesel engine and features a 12V DC emergency power system to allow for safe descent in the event of an engine failure.

Image source: Zoomlion

Ranking second is the Zoomlion ZT72J, which held the crown briefly before the release of the ZT82J. In many respects, the ZT72J remains the more common sight on jobsites in 2026, as its transport weight and dimensions make it slightly more accessible for regional rental fleets than its taller sibling.

Performance Characteristics

The ZT72J offers a maximum working height of 72.3 meters (237 feet, 2 inches) and a platform height of 70.3 meters. Its horizontal outreach of 32.6 meters (107 feet) is facilitated by a five-section synchronously extending boom. This model was the first to widely implement the dual-lifting cylinder layout, which ensures smoother lifting motions and significantly reduces platform vibration compared to single-cylinder designs.

For industrial applications such as petrochemical refinery maintenance, the ZT72J’s triple-rated load capacity (230/300/454 kg) is a decisive advantage. It allows a crew to take not just personnel, but also heavy welding equipment and replacement components to height in a single cycle. The machine's safety suite includes 17 separate protection measures, including a tilt protection system and an anemograph for real-time wind speed monitoring.

Maneuverability and Transport

Despite reaching 19 stories high, the ZT72J is designed for standard container transport when the jib is tucked. It weighs 38,300 kg (84,437 lb), making it approximately 10 tons lighter than the ZT82J, which simplifies the logistics of moving the machine between sites. It is powered by a Stage V Cummins F3.8 engine, ensuring it meets the most stringent environmental requirements for projects in Europe and North America.

Image source: Zoomlion (YouTube)

As of early 2026, the Zoomlion ZT82J stands as the undisputed champion of the self-propelled boom lift world, representing the first commercial unit to break the 80-meter barrier. This machine is not merely a height iteration but a fundamental redesign of boom geometry and chassis stability required to manage the physics of working at nearly 270 feet above ground level.

Structural Engineering and Boom Geometry

The ZT82J achieves a maximum working height of 82.3 meters (270 feet, 1 inch), with a maximum platform height of 80.3 meters. To achieve this while maintaining a manageable machine weight, Zoomlion engineers developed an innovative polygonal boom system. Unlike the standard rectangular or square cross-sections found on smaller lifts, the polygonal structure reduces the boom's self-weight by more than 10% while simultaneously increasing vertical stiffness by 25% and torsional resistance by 20%. This is a critical development for operator safety; at a height of 80 meters, even minor wind gusts can create significant platform sway. The increased rigidity ensures that the platform remains stable, providing the operator with the precision required for delicate tasks like high-rise glass installation or turbine maintenance.

The boom assembly consists of a six-section main telescopic boom powered by dual telescopic cylinders. This is topped by a 13.1-meter (43-foot) three-section articulating jib, which offers 125 degrees of vertical movement. This jib is central to the machine's "up-and-over" capability, allowing it to navigate complex architectural features or industrial piping that would be inaccessible to a straight telescopic arm.

Chassis Stability and Drive Systems

Operating a machine of this magnitude requires a revolutionary approach to the chassis. The ZT82J utilizes an X-outrigger system, which allows the machine to expand its footprint significantly during operation while remaining compact enough for transport on a standard heavy-haul trailer. The machine features a four-wheel drive (4WD) and four-wheel steering (4WS) system with three distinct modes: coordinated, crab, and front-wheel steering. These modes allow the 48,800 kg (107,585 lb) machine to navigate congested jobsites with a precision that belies its massive size.

The 2026 ranking of the tallest boom lifts in the world reveals an industry that has successfully pushed the boundaries of vertical access through material science and intelligent chassis design. While Zoomlion holds the current height records with the ZT82J and ZT72J, the market remains competitive, with significant innovations from XCMG, Snorkel, and Sinoboom. For construction and industrial firms, the selection of a super-boom now involves a complex trade-off between raw height, horizontal outreach, transport logistics, and sustainability. As we look toward the end of the decade, the integration of electric power and autonomous control will likely redefine "Super-Boom" performance far beyond mere vertical reach.

What is the tallest self-propelled boom lift currently available in 2026?

As of 2026, the Zoomlion ZT82J is the tallest self-propelled telescopic boom lift globally, reaching a record-breaking working height of 82.3 m (270 ft 1 in). It is the first commercial unit in the aerial work platforms sector to exceed the 80-meter threshold, utilizing a specialized polygonal boom to maintain structural integrity at these extreme heights.

How do the tallest boom lifts maintain stability without traditional truck-mounted outriggers?

These high-reach lifts utilize an "X-outrigger" or extending axle system. Machines like the Zoomlion ZT82J feature a chassis that expands to an operational width of approx. 5.16 m (16 ft 11 in). This wide footprint, combined with a heavy chassis weight of up to 48,800 kg (107,585 lb), allows the machine to remain self-propelled and stable while elevated.

What are the primary applications for boom lifts in the 60-meter-plus (200-foot-plus) category?

These platforms are vital for high-altitude infrastructure projects. Key applications include wind turbine maintenance, inspections in petrochemical refineries, glass installation on high-rise facades, and the construction of massive sports stadiums. They are preferred over scaffolding for tasks requiring rapid, temporary access to heights up to 80.3 m (263 ft 6 in).

Can these super-booms be transported on standard trailers in the EU and US?

Most are designed with a stowed width of 2.5 m (8 ft 2 in) to fit standard trailers. However, their length—often exceeding 16 m (54 ft 2 in)—and weights (up to 49 tonnes / 54 US tons) usually require multi-axle trailers and specialized "oversized load" permits from regional authorities like the DOT or European transport ministries.

Are there zero-emission options for high-reach aerial work platforms?

Yes, the LGMG T56JE-2 is a leading fully electric telescopic boom lift with a working height of 57.7 m (189 ft). It is powered by an 80V 840Ah lithium-ion battery, making it ideal for urban environments in the EU and US that enforce strict noise and carbon emission regulations.

What is the difference between a self-propelled boom lift and a truck-mounted platform?

A self-propelled boom lift (MEWP Type 3B) can be driven from the platform while the boom is extended. Truck-mounted units can reach higher—often over 90 m (approx. 300 ft)—but are built on commercial truck chassis and must remain stationary with stabilizing jacks deployed, meaning they cannot move while the operator is at height.

Which high-reach lift offers the best horizontal outreach?

The Snorkel 2100SJ leads this category with a maximum horizontal outreach of 35.1 m (115 ft). This massive reach is critical for projects where the machine's base cannot be placed near the structure, such as bridge maintenance or working over water features.

How does wind speed affect the operation of these extremely tall lifts?

Wind is a primary safety concern for high-reach lifts. Most models are equipped with anemographs that monitor real-time wind speeds. If speeds exceed safe operational limits—typically between 45–51 km/h (28–32 mph)—the machine’s safety systems will alert the operator or restrict certain movements to prevent excessive platform sway.

What is "polygonal boom geometry" and why is it used?

Instead of traditional rectangular steel, the tallest boom lifts use hexagonal or octagonal sections. This geometry provides a higher strength-to-weight ratio, reducing the boom's mass while increasing its resistance to the torsional (twisting) forces that occur when working at heights near 80 m (262 ft).

Are these machines available for rental in both North America and Europe?

Yes. While legacy brands like JLG and Genie have vast fleets in the US, Chinese manufacturers like Zoomlion, XCMG, and Sinoboom have established major R&D and distribution hubs in Europe (Italy/Germany). Most machines listed are certified for CE (EU), ANSI (US), and CSA (Canada), ensuring global availability.

What safety features protect operators at heights of 70 meters (230 feet) or more?

Standard safety suites include secondary guarding (anti-crushing) systems, tilt sensors, and triple-rated load capacities (e.g., 230/300/454 kg or 510/660/1,000 lb). They also feature emergency descent systems powered by independent 12V DC sources to ensure a safe landing if the main engine fails.

How do technicians maintain these machines in remote locations?

Modern super-booms utilize telematics for remote diagnostics. Systems like Sinoboom’s "Smart Maintenance" allow fleet managers to monitor engine health, battery cycles, and fault codes via a 178 mm (7-inch) platform display or mobile app, reducing downtime on remote sites like wind farms.
