M318D Caterpillar Excavator Specs & Dimensions - (2011 - 2021)

Weight: 20.1t – Standard tyres: 10.00-20 16PR – Bucket capacity min.: 0.38m³ – Bucket capacity max.: 1.24m³ – Boom: MB – Transport…

Weight: 20.1t – Standard tyres: 10.00-20 16PR – Bucket capacity min.: 0.38m³ – Bucket capacity max.: 1.24m³ – Boom: MB – Transport length: 8.95m

Check out detailed dimensions, specifications, information and technical data for Caterpillar M318D excavator manufactured between 2011 - 2021. Get more in-depth insight with Caterpillar M318D digger specifications. See information, like: Weight: 20.1t – Standard tyres: 10.00-20 16PR – Bucket capacity min.: 0.38m³ – Bucket capacity max.: 1.24m³ – Boom: MB – Transport length: 8.95m and more.

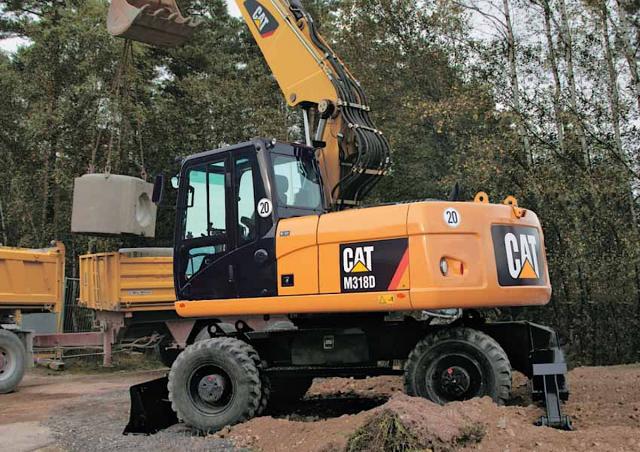

Wheel Excavators Caterpillar M318D

Technical specs - M318D Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20.1 t
Standard tyres
10.00-20 16PR
Bucket capacity min.
0.38 m³
Bucket capacity max.
1.24 m³
Boom
MB
Transport length
8.95 m
Transport width
2.55 m
Transport height
3.33 m
Max. Reach horizontal
9.6 m
Dredging depth
6.36 m
Tear-out force
126 kN
Bucket width
1.4 m
Turning radius outside
8.3 m
Travel speed
37 km/h
Engine manuf.
Caterpillar
Engine type
C6.6 Acert
Engine power
130 kW
Displacement
6.6 l
Max. torque
805 Nm
No. of cylinders
6
Cylinder bore x stroke
105x127 mm
Emission level
Tier 3

More technical details, like: bucket capacity, outrigger stabilisers, dipper length, turning radius inside, model series, dimension lxwxh, revolutions at max torque are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar M318D FAQ

When was the Caterpillar M318D manufactured?

The Caterpillar M318D was manufactured from 2011 to 2021.

How much does the Caterpillar M318D weigh?

The Caterpillar M318D weighs 20.1 tons.

What are the transport dimensions of the Caterpillar M318D wheel excavator?

The Caterpillar M318D has a transport length of 8.95 meters, a transport width of 2.55 meters, and a transport height of 3.33 meters.

What is the travel speed of the Caterpillar M318D wheel excavator?

The Caterpillar M318D wheel excavator has a travel speed of 37 km/h.

What is the fuel consumption range of the Caterpillar M318D wheel excavator?

The Caterpillar M318D has a fuel consumption range of 11 to 20 liters per hour.

What are the undercarriage specifications of the Caterpillar M318D wheel excavator?

The Caterpillar M318D wheel excavator is equipped with standard tyres sized 10.00-20 16PR.

What is the turning radius of the Caterpillar M318D wheel excavator?

The Caterpillar M318D has an outside turning radius of 8.3 meters.

What are the excavation performance specifications of the Caterpillar M318D wheel excavator?

The Caterpillar M318D wheel excavator has a dredging depth of 6.36 meters, a maximum horizontal reach of 9.6 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Caterpillar M318D wheel excavator?

The Caterpillar M318D wheel excavator has a tear-out force of 126 kN.

What are the bucket specifications of the Caterpillar M318D wheel excavator?

The Caterpillar M318D wheel excavator has a bucket with a maximum capacity of 1.24 cubic meters, a minimum capacity of 0.38 cubic meters, and a width of 1.4 meters.

How much is a Caterpillar M318D Wheel excavator (2011u20132021) worth?

The residual value of the Caterpillar M318D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
