M313D Caterpillar Excavator Specs & Dimensions - (2007 - 2026)

Weight: 15.8t – Standard tyres: 10.00-20 – Bucket capacity min.: 0.34m³ – Bucket capacity max.: 0.88m³ – Boom: MB – Transport leng…

Weight: 15.8t – Standard tyres: 10.00-20 – Bucket capacity min.: 0.34m³ – Bucket capacity max.: 0.88m³ – Boom: MB – Transport length: 8.09m

Check out detailed dimensions, specifications, information and technical data for Caterpillar M313D excavator manufactured between 2007 - 2026. Get more in-depth insight with Caterpillar M313D digger specifications. See information, like: Weight: 15.8t – Standard tyres: 10.00-20 – Bucket capacity min.: 0.34m³ – Bucket capacity max.: 0.88m³ – Boom: MB – Transport length: 8.09m and more.

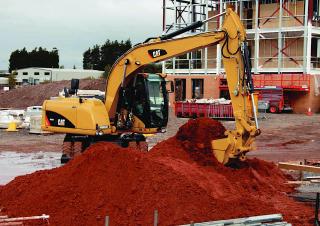

Wheel Excavators Caterpillar M313D

Technical specs - M313D Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15.8 t
Standard tyres
10.00-20
Bucket capacity min.
0.34 m³
Bucket capacity max.
0.88 m³
Boom
MB
Transport length
8.09 m
Transport width
2.55 m
Transport height
3.12 m
Max. Reach horizontal
8.77 m
Dredging depth
5.59 m
Tear-out force
93 kN
Bucket width
1.22 m
Turning radius outside
8.1 m
Travel speed
37 km/h
Engine manuf.
Caterpillar
Engine type
C4.4 Acert
Engine power
95 kW
Displacement
4.4 l
No. of cylinders
4
Cylinder bore x stroke
105x127 mm
Emission level
Tier 3

More technical details, like: bucket capacity, outrigger stabilisers, dipper length, turning radius inside, model series, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar M313D FAQ

When was the Caterpillar M313D manufactured?

The Caterpillar M313D was first produced in 2007.

How much does the Caterpillar M313D wheel excavator weigh?

The Caterpillar M313D wheel excavator weighs 15.8 tons.

What are the transport dimensions of the Caterpillar M313D wheel excavator?

The Caterpillar M313D has a transport length of 8.09 meters, a transport width of 2.55 meters, and a transport height of 3.12 meters.

What is the travel speed of the Caterpillar M313D wheel excavator?

The Caterpillar M313D wheel excavator has a travel speed of 37 km/h.

What is the fuel consumption of the Caterpillar M313D wheel excavator?

The Caterpillar M313D has a fuel consumption range of 10 to 18 liters per hour, with an average consumption of 13.8 liters per hour.

What are the standard tyre specifications of the Caterpillar M313D wheel excavator?

The Caterpillar M313D wheel excavator has standard tyres sized 10.00-20.

What is the turning radius of the Caterpillar M313D wheel excavator?

The Caterpillar M313D has an outside turning radius of 8.1 meters.

What are the excavation performance specifications of the Caterpillar M313D wheel excavator?

The Caterpillar M313D has a dredging depth of 5.59 meters, a maximum horizontal reach of 8.77 meters, and is equipped with a Monobloc boom.

What is the tear-out force of the Caterpillar M313D?

The Caterpillar M313D has a tear-out force of 93 kN.

What are the specifications of the primary work tool bucket on the Caterpillar M313D?

The primary work tool bucket of the Caterpillar M313D has a maximum capacity of 0.88 cubic meters, a minimum capacity of 0.34 cubic meters, and a width of 1.22 meters.

How much is a Caterpillar M313D Wheel excavator (2007u20132025) worth?

The residual value of the Caterpillar M313D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
