MX 14 Hydrema Excavator Specs & Dimensions - (2014 - 2016)

Hydrema is the manufacturer of the wheel excavator model MX 14. Find and download detailed specs and data sheets for this machine …

Hydrema is the manufacturer of the wheel excavator model MX 14. Find and download detailed specs and data sheets for this machine here.

This wheel excavator is built to provide up to 119kW or 159 horse power, delivered from its powerful Cummins engine to the 16.1t MX 14 machine. The Hydrema MX 14 can be grouped in the medium sized machine segment in the wheel excavators category.

The Hydrema MX 14 has been equipped and sold with Aircondition and Blade. It does not include Material Handling Excavator, Overload alert and Cabin adjustment. There are more detailed specifications and machine descriptions available in the original Hydrema MX 14 specs data sheet. Download a free data sheet in English, French and German from LECTURA Specs.

The production stopped in 2016, where this MX 14 was available at a new list price between €190000 and €242000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, 3 other wheel excavators, which range from 15.3t up to 19.3t are produced by Hydrema. Of these, MX 18, MX 16 and also MX 14 are the most frequently visited on LECTURA Specs. Want more detailed specifications? Download the latest Hydrema MX 14 specs data sheet on LECTURA Specs today!

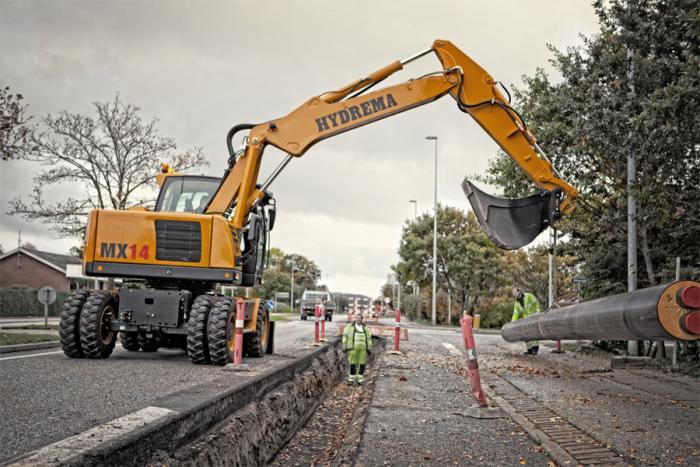

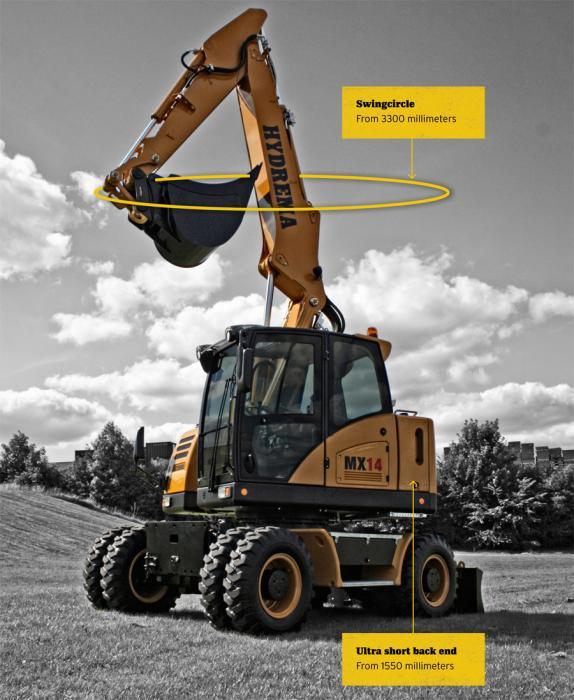

Wheel Excavators Hydrema MX 14
Wheel Excavators Hydrema MX 14
Wheel Excavators Hydrema MX 14
Wheel Excavators Hydrema MX 14

Visit Hydrema live at

Technical specs - MX 14 Hydrema

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.1 t
Standard tyres
10.00-20
Boom
VA
Outrigger stabilisers
2/4 2/4-fold
Max. Reach horizontal
9.16 m
Dredging depth
5.28 m
Tear-out force
79 kN
Bucket width
3 m
Travel speed
35 km/h
Model series
MX
Engine manuf.
Cummins
Engine type
QSB4.5 IIIb
Engine power
119 kW
Displacement
4.5 l
Revolutions at max torque
1500 rpm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., transport length, transport width, transport height, dipper length, turning radius inside, turning radius outside, dimension lxwxh, max. torque, no. of cylinders...

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., transport length, transport width, transport height, dipper length, turning radius inside, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of articulated booms, total number of dippers - articulated, dipper length - shortest articulated, dipper length - longest articulated, dipper length - standard articulated, emission rating, engine manufacturer, engine model, engine output - net, transmission type, number of tyres - standard, overall width, machine width - maximum, tailswing radius, standard dipper length, longest dipper length, maximum dig height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, max bucket breakout, artic boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hydrema MX 14 FAQ

When was the Hydrema MX 14 manufactured?

The Hydrema MX 14 was manufactured from 2014 to 2016.

How much does the Hydrema MX 14 wheel excavator weigh?

The Hydrema MX 14 wheel excavator weighs 16.1 tons.

What is the travel speed of the Hydrema MX 14 wheel excavator?

The Hydrema MX 14 has a travel speed of 35 km/h.

What are the undercarriage specifications of the Hydrema MX 14 wheel excavator?

The Hydrema MX 14 wheel excavator is equipped with standard tyres sized 10.00-20 and features 2 or 4 outrigger stabilisers with 2/4-fold fold type.

What are the excavation performance specifications of the Hydrema MX 14 wheel excavator?

The Hydrema MX 14 has an adjustable boom, a maximum horizontal reach of 9.16 meters, and a dredging depth of 5.28 meters.

What is the tear-out force of the Hydrema MX 14 wheel excavator?

The Hydrema MX 14 wheel excavator has a tear-out force of 79 kN.

What is the bucket width of the Hydrema MX 14 wheel excavator?

The bucket width of the Hydrema MX 14 wheel excavator is 3 meters.

How much is a Hydrema MX 14 Wheel excavator (2014u20132016) worth?

The residual value of the Hydrema MX 14 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
