MX 18 Hydrema Excavator Specs & Dimensions - (2016 - 2021)

Manufactured by Hydrema, this is the MX 18 wheel excavator. Find and download detailed specs and data sheets for this machine here…

Manufactured by Hydrema, this is the MX 18 wheel excavator. Find and download detailed specs and data sheets for this machine here.

The Hydrema MX 18 is a 19.3t machine with Cummins engine which powers this model with up to 123kW or 164 horse power. The Hydrema MX 18 can be grouped in the biggest machine segment in the wheel excavators category.

The MX 18 is manufactured and distributed with Blade, Overload alert and Aircondition. Material Handling Excavator, Cabin adjustment and Quick hitch hydr. Are not provided on this model as of 2017. There are more detailed specifications and machine descriptions available in the original Hydrema MX 18 specs data sheet.

This model can be acquired for a list price between €209000 and €266000. Production of the MX 18 continues in 2017. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Hydrema currently produces 2 other wheel excavators, which range from 15.3t up to 16.7t - the most visited on LECTURA Specs are MX 14, MX 16. This MX 18 wheel excavator, which has been in production between 2016 and 2017 ranks in the LECTURA index at #112. Want more detailed specifications? Download the latest Hydrema MX 18 specs data sheet on LECTURA Specs today!

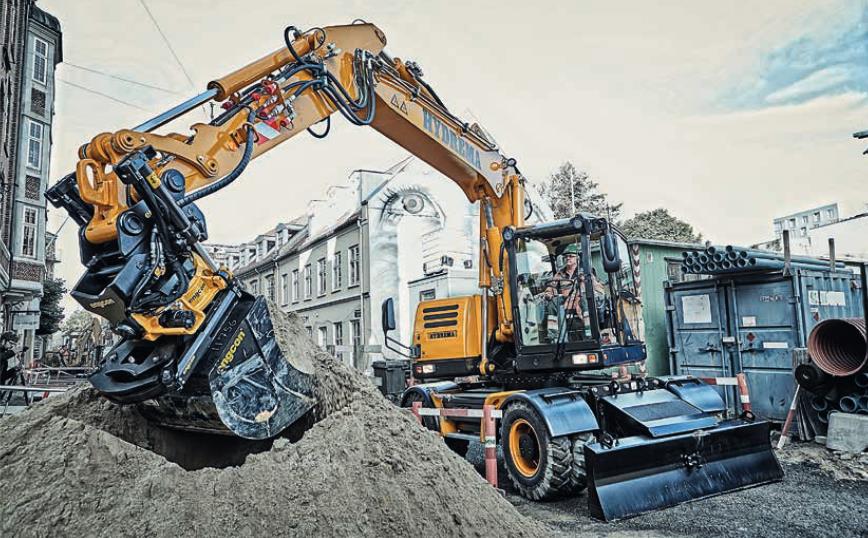

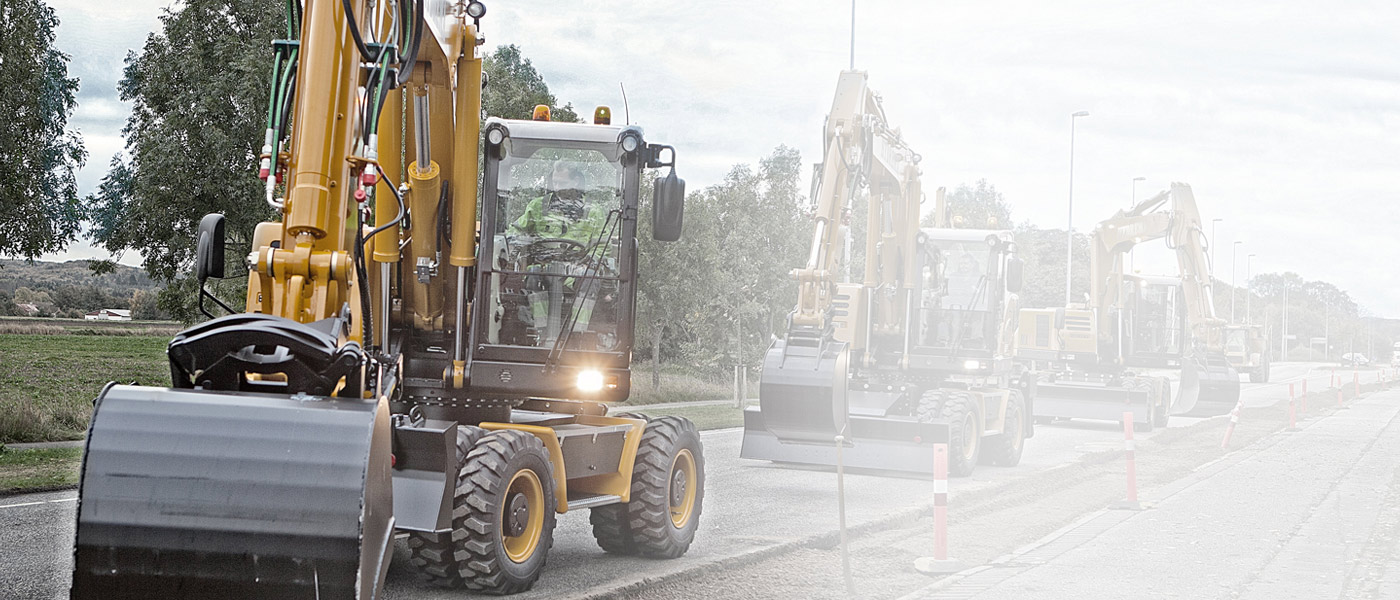

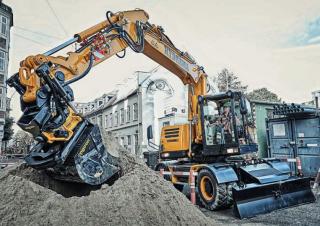

Wheel Excavators Hydrema MX 18
Wheel Excavators Hydrema MX 18
Wheel Excavators Hydrema MX 18
Wheel Excavators Hydrema MX 18

Visit Hydrema live at

Technical specs - MX 18 Hydrema

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.9 t
Standard tyres
10.00-20
Boom
VA
Outrigger stabilisers
2/4 2/4-fold
Transport width
2.53 m
Transport height
3.12 m
Max. Reach horizontal
10.22 m
Dredging depth
6.33 m
Tear-out force
97 kN
Bucket width
3 m
Travel speed
35 km/h
Model series
MX
Engine manuf.
Cummins
Engine type
QSB4.5L
Engine power
122 kW
Displacement
4.5 l
Revolutions at max torque
2100 rpm
No. of cylinders
4
Emission level
IV

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., transport length, dipper length, turning radius inside, turning radius outside, dimension lxwxh, max. torque, cylinder bore x stroke, number of articulated booms, total number of dippers - articulated...

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., transport length, dipper length, turning radius inside, turning radius outside, dimension lxwxh, max. torque, cylinder bore x stroke, number of articulated booms, total number of dippers - articulated, dipper length - shortest articulated, dipper length - longest articulated, dipper length - standard articulated, emission rating, engine manufacturer, engine model, engine output - net, transmission type, number of tyres - standard, overall width, machine width - maximum, tailswing radius, standard dipper length, longest dipper length, maximum dig height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, max bucket breakout, artic boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hydrema MX 18 FAQ

When was the Hydrema MX 18 manufactured?

The Hydrema MX 18 was manufactured from 2016 to 2021.

How much does the Hydrema MX 18 weigh?

The Hydrema MX 18 weighs 17.9 tons.

What are the transport dimensions of the Hydrema MX 18 wheel excavator?

The Hydrema MX 18 has a transport width of 2.53 meters and a transport height of 3.12 meters.

What is the travel speed of the Hydrema MX 18 wheel excavator?

The Hydrema MX 18 has a travel speed of 35 km/h.

What are the undercarriage specifications of the Hydrema MX 18 wheel excavator?

The Hydrema MX 18 wheel excavator has standard tyres sized 10.00-20 and features 2/4-fold outrigger stabilisers.

What are the excavation performance specifications of the Hydrema MX 18 wheel excavator?

The Hydrema MX 18 has an adjustable boom, a dredging depth of 6.33 meters, and a maximum horizontal reach of 10.22 meters.

What is the tear-out force of the Hydrema MX 18 wheel excavator?

The Hydrema MX 18 wheel excavator has a tear-out force of 97 kN.

What is the bucket width of the Hydrema MX 18 wheel excavator?

The bucket width of the Hydrema MX 18 wheel excavator is 3 meters.

How much is a Hydrema MX 18 Wheel excavator (2016u20132021) worth?

The residual value of the Hydrema MX 18 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
