MX 16 Hydrema Excavator Specs & Dimensions - (2016 - 2021)

Hydrema is the manufacturer of the wheel excavator model MX 16. Find and download detailed specs and data sheets for this machine …

Hydrema is the manufacturer of the wheel excavator model MX 16. Find and download detailed specs and data sheets for this machine here.

The Hydrema MX 16 is a 16.7t machine with Cummins engine which powers this model with up to 123kW or 164 horse power. The MX 16 is categorised in the medium sized machine segment in the wheel excavators category.

The Hydrema MX 16 has been equipped and sold with Overload alert, Aircondition and Blade. Diesel particulate filter, Track guidance and Cabin adjustment are not provided on this model as of 2017. There are more detailed specifications and machine descriptions available in the original Hydrema MX 16 specs data sheet.

This model can be acquired for a list price between €197000 and €251000. Production of the MX 16 continues in 2017. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Hydrema currently produces 2 other wheel excavators, which range from 15.3t up to 19.3t - the most visited on LECTURA Specs are MX 18, MX 14. Ranked in the LECTURA index at #123, this MX 16 wheel excavator has models that date from 2016 to 2017. Want more detailed specifications? Download the latest Hydrema MX 16 specs data sheet on LECTURA Specs today!

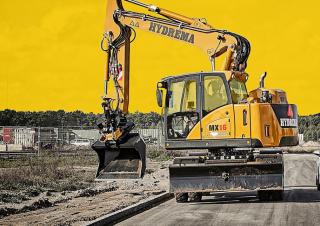

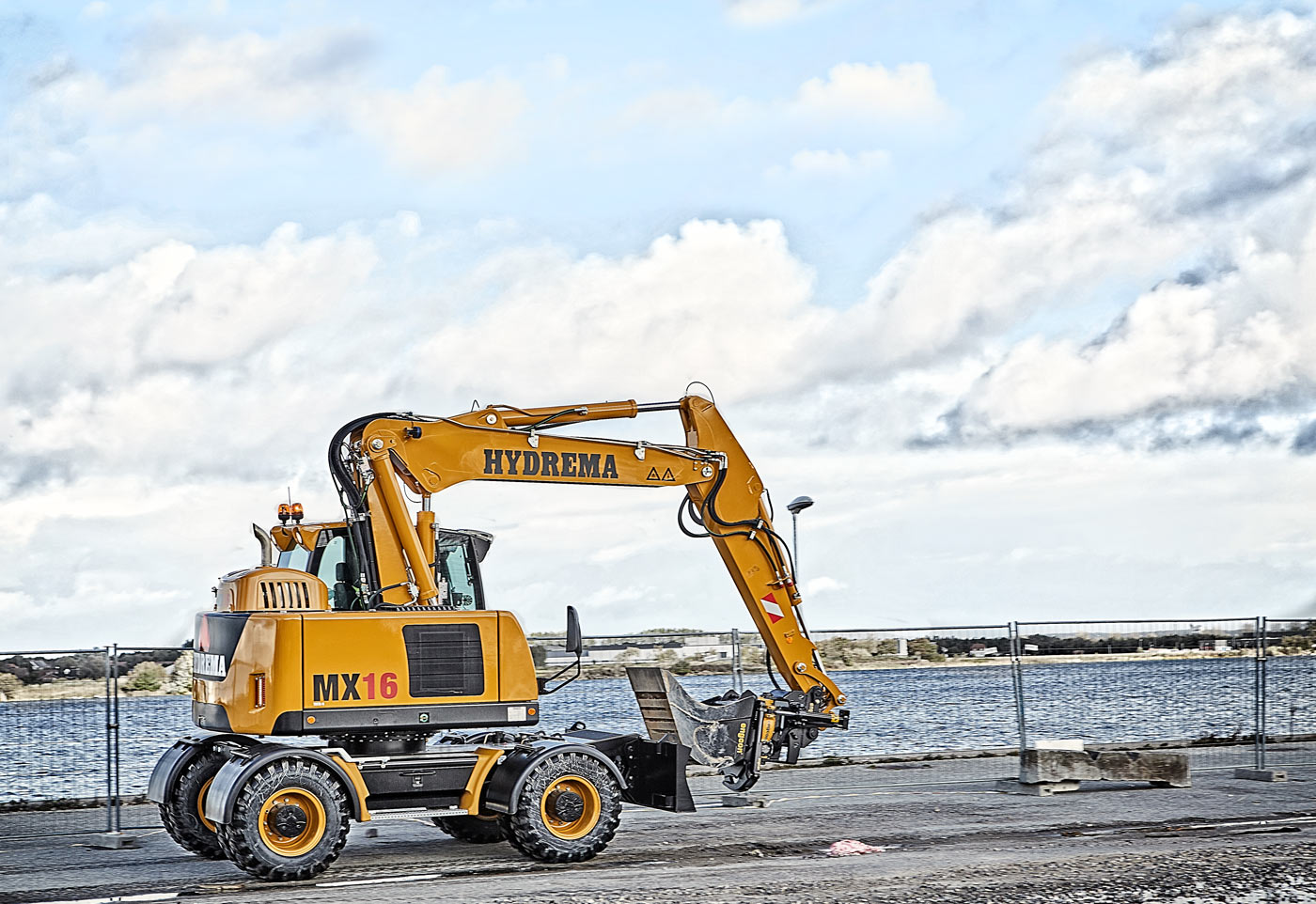

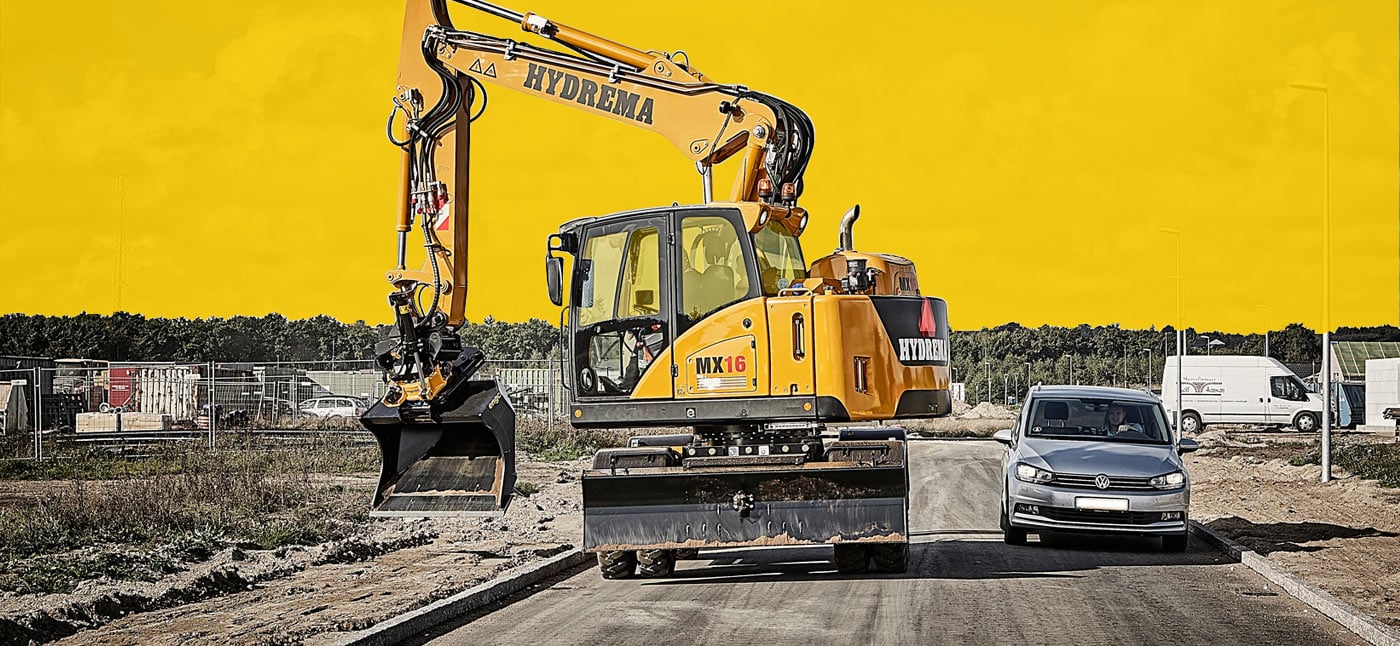

Wheel Excavators Hydrema MX 16
Wheel Excavators Hydrema MX 16
Wheel Excavators Hydrema MX 16
Wheel Excavators Hydrema MX 16
Wheel Excavators Hydrema MX 16
Wheel Excavators Hydrema MX 16

Visit Hydrema live at

Technical specs - MX 16 Hydrema

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.7 t
Standard tyres
10.00-20
Boom
VA
Outrigger stabilisers
2/4 2/4-fold
Transport width
2.53 m
Transport height
3.12 m
Max. Reach horizontal
9.82 m
Dredging depth
5.91 m
Tear-out force
82 kN
Bucket width
3 m
Travel speed
35 km/h
Model series
MX
Engine manuf.
Cummins
Engine type
QSB4.5L
Engine power
122 kW
Displacement
4.5 l
Revolutions at max torque
2100 rpm
No. of cylinders
4
Emission level
IV

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., transport length, dipper length, turning radius inside, turning radius outside, dimension lxwxh, max. torque, cylinder bore x stroke, number of articulated booms, total number of dippers - articulated...

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., transport length, dipper length, turning radius inside, turning radius outside, dimension lxwxh, max. torque, cylinder bore x stroke, number of articulated booms, total number of dippers - articulated, dipper length - shortest articulated, dipper length - longest articulated, dipper length - standard articulated, emission rating, engine manufacturer, engine model, engine output - net, transmission type, number of tyres - standard, overall width, machine width - maximum, tailswing radius, standard dipper length, longest dipper length, maximum dig height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, max bucket breakout, artic boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hydrema MX 16 FAQ

When was the Hydrema MX 16 manufactured?

The Hydrema MX 16 was manufactured from 2016 to 2021.

How much does the Hydrema MX 16 weigh?

The Hydrema MX 16 weighs 16.7 tons.

What are the transport dimensions of the Hydrema MX 16 wheel excavator?

The Hydrema MX 16 has a transport width of 2.53 meters and a transport height of 3.12 meters.

What is the travel speed of the Hydrema MX 16 wheel excavator?

The Hydrema MX 16 has a travel speed of 35 km/h.

What are the undercarriage specifications of the Hydrema MX 16 wheel excavator?

The Hydrema MX 16 is equipped with standard tyres sized 10.00-20 and has 2-fold or 4-fold outrigger stabilisers.

What are the excavation performance specifications of the Hydrema MX 16 wheel excavator?

The Hydrema MX 16 has a dredging depth of 5.91 meters, a maximum horizontal reach of 9.82 meters, and features an adjustable boom.

What is the tear-out force of the Hydrema MX 16 wheel excavator?

The Hydrema MX 16 wheel excavator has a tear-out force of 82 kN.

What is the bucket width of the Hydrema MX 16 wheel excavator?

The bucket width of the Hydrema MX 16 wheel excavator is 3 meters.

How much is a Hydrema MX 16 Wheel excavator (2016u20132021) worth?

The residual value of the Hydrema MX 16 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
