TW 110 Terex Excavator Specs & Dimensions - (2014 - 2016)

Manufactured by Terex, this is the TW 110 wheel excavator. Find and download detailed specs and data sheets for this machine here.…

Manufactured by Terex, this is the TW 110 wheel excavator. Find and download detailed specs and data sheets for this machine here.

The TW 110 is categorised in the smallest machine segment in the wheel excavators category. The TW 110’s size is 2.5m x 6.8m x 2.99m. The bucket capacity of TW 110 is 0.364m³, which is above average for this type of machine.

Since 2014, this model has included Blade, Overload alert and Quick hitch mech.. It has been sold without air Quick hitch hydr., Track guidance and Cabin adjustment as of 2016. There are more detailed specifications and machine descriptions available in the original Terex TW 110 specs data sheet. Specification sheet is available for a free download in German and English - providing the machine descriptions and more detailed specs about this particular model.

This model can be acquired for a list price between €149000 and €190000. Production of the TW 110 stopped in 2016. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Terex currently produces other wheel excavators, which range from up to - the most visited on LECTURA Specs are. Want more detailed specifications? Download the latest Terex TW 110 specs data sheet on LECTURA Specs today!

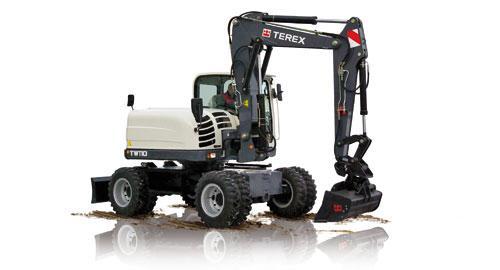

Wheel Excavators Terex TW 110

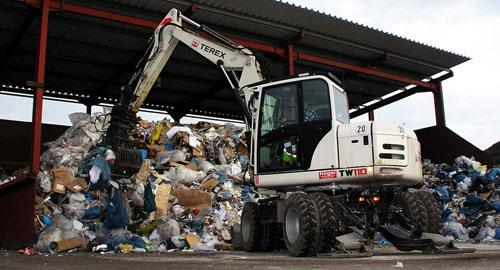

Wheel Excavators Terex TW 110
Wheel Excavators Terex TW 110
Wheel Excavators Terex TW 110
Wheel Excavators Terex TW 110
Wheel Excavators Terex TW 110
Wheel Excavators Terex TW 110
Wheel Excavators Terex TW 110
Wheel Excavators Terex TW 110
Wheel Excavators Terex TW 110
Wheel Excavators Terex TW 110
Wheel Excavators Terex TW 110

Technical specs - TW 110 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
11 t
Standard tyres
9.00-20
Bucket capacity
0.364 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
6.8 m
Transport width
2.5 m
Transport height
2.99 m
Max. Reach horizontal
8.3 m
Dredging depth
4.32 m
Tear-out force
58.5 kN
Bucket width
0.8 m
Model series
TW

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, travel speed, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, travel speed, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, total number of dippers - mono, number of articulated booms, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, overall width, machine width - maximum, wheelbase, tailswing radius, cab height, ground clearance, standard dipper length, longest dipper length, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
Yes

Download datasheets (PDF)

Terex TW 110 FAQ

When was the Terex TW 110 manufactured?

The Terex TW 110 was manufactured from 2014 to 2016.

How much does the Terex TW 110 wheel excavator weigh?

The Terex TW 110 wheel excavator weighs 11 tons.

What are the transport dimensions of the Terex TW 110 wheel excavator?

The Terex TW 110 has a transport length of 6.8 meters, a transport width of 2.5 meters, and a transport height of 2.99 meters.

What are the undercarriage specifications of the Terex TW 110 wheel excavator?

The Terex TW 110 wheel excavator is equipped with 9.00-20 standard tyres and has 2 outrigger stabilisers.

What are the excavation performance specifications of the Terex TW 110 wheel excavator?

The Terex TW 110 wheel excavator has a dredging depth of 4.32 meters, a maximum horizontal reach of 8.3 meters, and features an adjustable boom.

What is the tear-out force of the Terex TW 110 wheel excavator?

The Terex TW 110 wheel excavator has a tear-out force of 58.5 kN.

What are the bucket specifications of the Terex TW 110 wheel excavator?

The Terex TW 110 wheel excavator has a bucket capacity of 0.364 cubic meters and a bucket width of 0.8 meters.

How much is a Terex TW 110 Wheel excavator (2014u20132016) worth?

The residual value of the Terex TW 110 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
