WX 90 Case Excavator Specs & Dimensions - (2001 - 2005)

The WX 90 wheel excavator model is manufactured by case. Find and download detailed specs and data sheets for this machine here. …

The WX 90 wheel excavator model is manufactured by case. Find and download detailed specs and data sheets for this machine here.

The case WX 90 is a 9.4t machine with Perkins engine which powers this model with up to 57kW or 76 horse power. The case WX 90 can be grouped in the smallest machine segment in the wheel excavators category. The model's dimensions are 6.78m x 2.2m x 2.95m. The bucket of WX 90 has a capacity of 0,36m³ which is average for this type of machine.

Since 2001, this model has included Overload alert. It does not include Material Handling Excavator, Blade and Quick hitch hydr.. There are more detailed specifications and machine descriptions available in the original case WX 90 specs data sheet.

The production stopped in 2005, where this WX 90 was available at a new list price between €91000 and €116000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Case currently produces 4 other wheel excavators, which range from 15.4t up to 20.8t - the most visited on LECTURA Specs are WX 188, WX 148, WX 168. Want more detailed specifications? Download the latest case WX 90 specs data sheet on LECTURA Specs today!

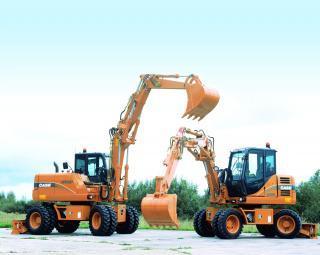

Wheel Excavators Case WX 90

Technical specs - WX 90 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.4 t
Standard tyres
8.25x20
Bucket capacity
0.36 m³
Boom
VA
Transport length
6.78 m
Transport width
2.2 m
Transport height
2.95 m
Engine manuf.
Perkins
Engine type
1004.42
Engine power
57 kW
Displacement
4.232 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity min., bucket capacity max., outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, model series...

More technical details, like: bucket capacity min., bucket capacity max., outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of mono booms, total number of dippers - mono, number of articulated booms, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, overall width, machine width - maximum, wheelbase, rear axle to slew centre, tailswing radius, cab height, ground clearance, standard dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Case WX 90 FAQ

When was the Case WX 90 manufactured?

The Case WX 90 was manufactured from 2001 to 2005.

How much does the Case WX 90 wheel excavator weigh?

The Case WX 90 wheel excavator weighs 9.4 tons.

What are the transport dimensions of the Case WX 90 wheel excavator?

The Case WX 90 has a transport length of 6.78 meters, a transport width of 2.2 meters, and a transport height of 2.95 meters.

What are the undercarriage specifications of the Case WX 90 wheel excavator?

The Case WX 90 wheel excavator is equipped with standard tyres sized 8.25x20.

What type of boom does the Case WX 90 wheel excavator have?

The Case WX 90 wheel excavator has an adjustable boom.

What is the bucket capacity of the Case WX 90 wheel excavator?

The Case WX 90 wheel excavator has a bucket capacity of 0.36 cubic meters.

How much is a Case WX 90 Wheel excavator (2001u20132005) worth?

The residual value of the Case WX 90 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
