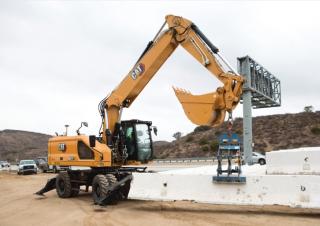

Wheel Excavators Caterpillar M322
Wheel Excavators Caterpillar M322
Wheel Excavators Caterpillar M322
Wheel Excavators Caterpillar M322

Technical specs - M322 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.49 t
Standard tyres
11.00-20
Bucket capacity
1.19 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
9.71 m
Transport width
2.75 m
Transport height
3.32 m
Max. Reach horizontal
9.91 m
Dredging depth
6.05 m
Tear-out force
152 kN
Bucket width
1.2 m
Dipper length
2.9 m
Travel speed
30 km/h
Engine manuf.
Caterpillar
Engine type
C7.1
Engine power
129 kW
Displacement
7.01 l
Max. torque
830/1400 Nm
No. of cylinders
6
Cylinder bore x stroke
105x135 mm
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., turning radius inside, turning radius outside, model series, dimension lxwxh, revolutions at max torque are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar M322 FAQ

When was the Caterpillar M322 manufactured?

The Caterpillar M322 was first produced in 2021.

How much does the Caterpillar M322 wheel excavator weigh?

The Caterpillar M322 wheel excavator weighs 21.49 tons.

What are the transport dimensions of the Caterpillar M322 wheel excavator?

The Caterpillar M322 has a transport length of 9.71 meters, a transport width of 2.75 meters, and a transport height of 3.32 meters.

What is the travel speed of the Caterpillar M322 wheel excavator?

The Caterpillar M322 wheel excavator has a travel speed of 30 km/h.

What is the average fuel consumption of the Caterpillar M322 wheel excavator?

The Caterpillar M322 wheel excavator has an average fuel consumption of 11 liters per hour.

What are the undercarriage specifications of the Caterpillar M322 wheel excavator?

The Caterpillar M322 wheel excavator is equipped with 11.00-20 standard tyres and has 2 outrigger stabilisers.

What are the excavation performance specifications of the Caterpillar M322 wheel excavator?

The Caterpillar M322 wheel excavator has a dredging depth of 6.05 meters, a maximum horizontal reach of 9.91 meters, features an adjustable boom, and has a dipper length of 2.9 meters.

What is the tear-out force of the Caterpillar M322 wheel excavator?

The Caterpillar M322 wheel excavator has a tear-out force of 152 kN.

What are the bucket specifications of the Caterpillar M322 wheel excavator?

The Caterpillar M322 wheel excavator has a bucket capacity of 1.19 cubic meters and a bucket width of 1.2 meters.
