TW 190 Terex Excavator Specs & Dimensions - (2008 - 2010)

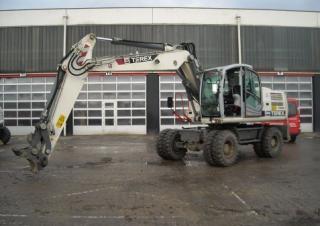

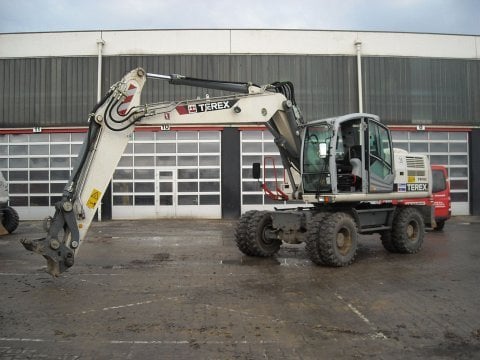

Manufactured by Atlas, this is the TW 190 wheel excavator. Find and download detailed specs and data sheets for this machine here.…

Manufactured by Atlas, this is the TW 190 wheel excavator. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful Cummins engine, this TW 190 19t machine can provide 117kW or 156 horse power for the wheel excavator. The TW 190 is categorised in the biggest machine segment in the wheel excavators category. The bucket of TW 190 has a capacity of 0,93m³ which is average for this type of machine.

The Atlas TW 190 has been equipped and sold with Blade, Aircondition and Overload alert. Quick hitch hydr., Quick hitch mech. And Track guidance are not provided on this model as of 2010. There are more detailed specifications and machine descriptions available in the original Atlas TW 190 specs data sheet.

This model can be acquired for a list price between €198000 and €253000. Production of the TW 190 stopped in 2010. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Atlas currently produces 15 other wheel excavators, which range from 14.9t up to 52t - the most visited on LECTURA Specs are 1404 ZW, 1604 ZW, 350 MH. Want more detailed specifications? Download the latest Atlas TW 190 specs data sheet on LECTURA Specs today!

Wheel Excavators Terex TW 190

Technical specs - TW 190 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
19 t
Standard tyres
10.00-20
Bucket capacity
0.93 m³
Boom
VA
Model series
TW
Engine manuf.
Cummins
Engine type
QSB6.7
Engine power
117 kW
Displacement
6.7 l
Revolutions at max torque
2150 rpm
Max. torque
673/1500 Nm
No. of cylinders
6
Cylinder bore x stroke
107x124 mm
Emission level
IV

More technical details, like: bucket capacity min., bucket capacity max., outrigger stabilisers, transport length, transport width, transport height, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside...

More technical details, like: bucket capacity min., bucket capacity max., outrigger stabilisers, transport length, transport width, transport height, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Terex TW 190 FAQ

When was the Terex TW 190 manufactured?

The Terex TW 190 was manufactured from 2008 to 2010.

How much does the Terex TW 190 wheel excavator weigh?

The Terex TW 190 wheel excavator weighs 19 tons.

What is the standard tyre size of the Terex TW 190 wheel excavator?

The Terex TW 190 wheel excavator is equipped with standard tyres sized 10.00-20.

What type of boom does the Terex TW 190 have?

The Terex TW 190 has an adjustable boom.

What is the bucket capacity of the Terex TW 190 wheel excavator?

The Terex TW 190 wheel excavator has a bucket capacity of 0.93 cubic meters.

How much is a Terex TW 190 Wheel excavator (2008u20132010) worth?

The residual value of the Terex TW 190 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
