A 914 Litronic Liebherr Excavator Specs & Dimensions - (2012 - 2019)

Model rating
9,00 / 10

Manufactured by Liebherr, this is the A 914 Litronic wheel excavator. Find and download detailed specs and data sheets for this ma…

Manufactured by Liebherr, this is the A 914 Litronic wheel excavator. Find and download detailed specs and data sheets for this machine here.

The Liebherr A 914 Litronic is a 15.3t machine with Liebherr engine which powers this model with up to 105kW or 140 horse power. The A 914 Litronic is categorised in the medium sized machine segment in the wheel excavators category. The A 914 Litronic’s size is 2.55m x 8.4m x 3.16m. The bucket of A 914 Litronic has a capacity of 0.5m³ which is average for this type of machine.

The A 914 Litronic is manufactured and distributed with Blade, Overload alert and Quick hitch hydr.. It has been sold without air Track guidance, Cabin adjustment and Material Handling Excavator as of 2017. There are more detailed specifications and machine descriptions available in the original Liebherr A 914 Litronic specs data sheet. Specification sheet is available for a free download in Italian, English, French and German - providing the machine descriptions and more detailed specs about this particular model.

The production is still going in 2017, where this A 914 Litronic is available at a new list price between €239000 and €305000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, 11 other wheel excavators, which range from 11.8t up to 27.1t are produced by Liebherr. Of these, A 910 Compact Litronic, A 916 Litronic and also A 914 Compact Litronic are the most frequently visited on LECTURA Specs. This A 914 Litronic wheel excavator, which has been in production between 2012 and 2017 ranks in the LECTURA index at #3. Want more detailed specifications? Download the latest Liebherr A 914 Litronic specs data sheet on LECTURA Specs today!

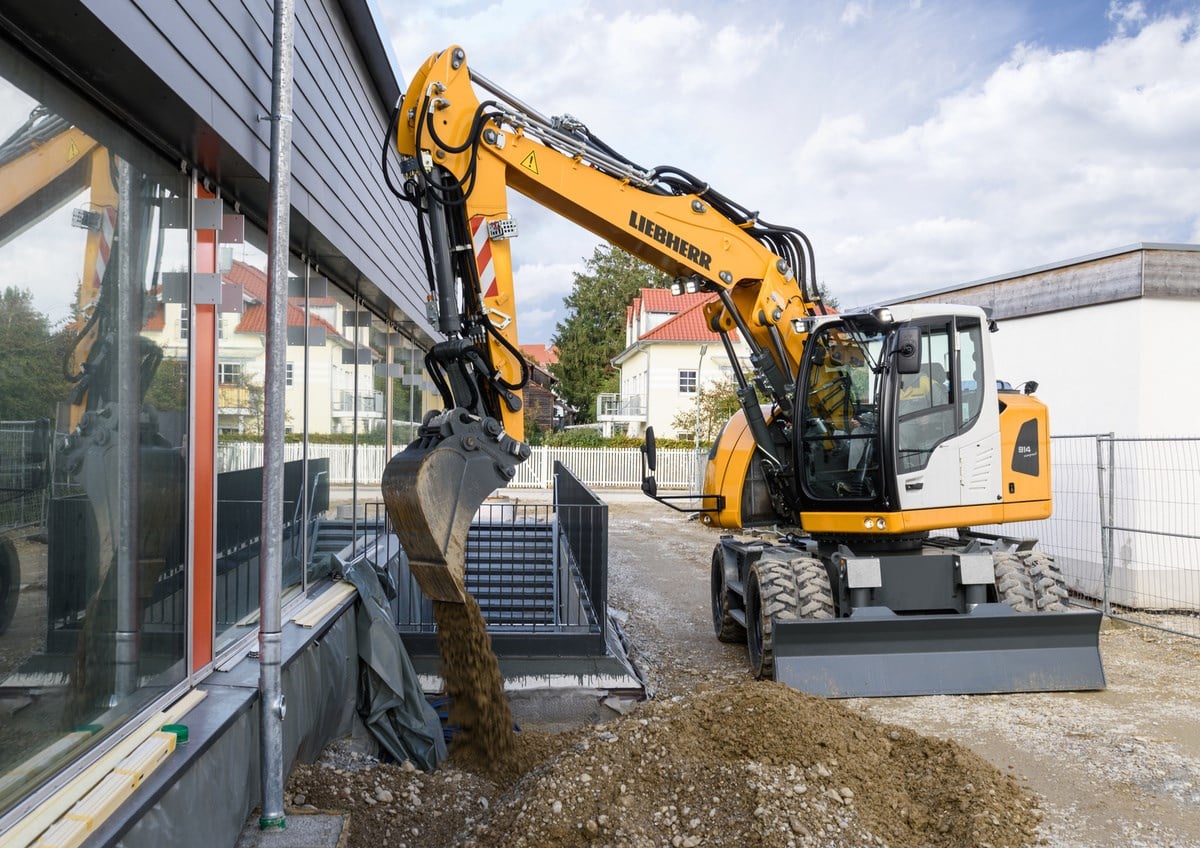

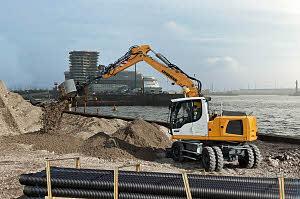

Wheel Excavators Liebherr A 914 Litronic
Wheel Excavators Liebherr A 914 Litronic
Wheel Excavators Liebherr A 914 Litronic
Wheel Excavators Liebherr A 914 Litronic
Wheel Excavators Liebherr A 914 Litronic
Wheel Excavators Liebherr A 914 Litronic
Wheel Excavators Liebherr A 914 Litronic
Wheel Excavators Liebherr A 914 Litronic

Visit Liebherr live at

Technical specs - A 914 Litronic Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.05 t
Standard tyres
10.00-20
Bucket capacity
0.5 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
8.4 m
Transport width
2.55 m
Transport height
3.16 m
Max. Reach horizontal
8.9 m
Dredging depth
5.55 m
Tear-out force
68.8 kN
Bucket width
0.85 m
Travel speed
20 km/h
Model series
A
Engine manuf.
Liebherr
Engine type
D924
Engine power
105 kW
Displacement
4.5 l
Revolutions at max torque
1800 rpm
Emission level
IV

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, number of mono booms, total number of dippers - mono, number of articulated booms...

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, number of mono booms, total number of dippers - mono, number of articulated booms, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, machine width - maximum, wheelbase, rear axle to slew centre, tailswing radius, cab height, ground clearance, overall width - stabilisers down, mono boom size, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr A 914 Litronic FAQ

When was the Liebherr A 914 Litronic manufactured?

The Liebherr A 914 Litronic was manufactured from 2012 to 2019.

How much does the Liebherr A 914 Litronic wheel excavator weigh?

The Liebherr A 914 Litronic wheel excavator weighs 16.05 tons.

What are the transport dimensions of the Liebherr A 914 Litronic wheel excavator?

The Liebherr A 914 Litronic has a transport length of 8.4 meters, a transport width of 2.55 meters, and a transport height of 3.16 meters.

What is the travel speed of the Liebherr A 914 Litronic wheel excavator?

The Liebherr A 914 Litronic has a travel speed of 20 km/h.

What are the undercarriage specifications of the Liebherr A 914 Litronic wheel excavator?

The Liebherr A 914 Litronic is equipped with 10.00-20 standard tyres and has 2 outrigger stabilisers.

What are the excavation performance specifications of the Liebherr A 914 Litronic wheel excavator?

The Liebherr A 914 Litronic has a dredging depth of 5.55 meters, a maximum horizontal reach of 8.9 meters, and features an adjustable boom.

What is the tear-out force of the Liebherr A 914 Litronic wheel excavator?

The Liebherr A 914 Litronic wheel excavator has a tear-out force of 68.8 kN.

What are the bucket specifications of the Liebherr A 914 Litronic wheel excavator?

The Liebherr A 914 Litronic has a bucket capacity of 0.5 cubic meters and a bucket width of 0.85 meters.
