A 914 Compact Litronic Liebherr Excavator Specs & Dimensions - (2012 - 2019)

Liebherr is the manufacturer of the wheel excavator model A 914 Compact Litronic. Find and download detailed specs and data sheets…

Liebherr is the manufacturer of the wheel excavator model A 914 Compact Litronic. Find and download detailed specs and data sheets for this machine here.

The Liebherr A 914 Compact Litronic is a 15.4t machine with Liebherr engine which powers this model with up to 105kW or 140 horse power. The A 914 Compact Litronic is categorised in the medium sized machine segment in the wheel excavators category. The model's dimensions are 8.2m x 2.55m x 3.16m. The bucket of A 914 Compact Litronic has a capacity of 0.5m³ which is average for this type of machine.

Since 2012, this model has included Aircondition, Blade and Quick hitch hydr.. It does not include Cabin adjustment, Diesel particulate filter and Quick hitch mech.. There are more detailed specifications and machine descriptions available in the original Liebherr A 914 Compact Litronic specs data sheet. You can download it for free in Italian, German, English and French on LECTURA Specs.

The production is still going in 2017, where this A 914 Compact Litronic is available at a new list price between €243000 and €309000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Liebherr models of this type on LECTURA Specs are the A 914 Litronic, A 910 Compact Litronic and A 916 Litronic, and 11 other wheel excavators, which currently range from 11.8t up to 27.1t are also available. Ranked in the LECTURA index at #19, this A 914 Compact Litronic wheel excavator has models that date from 2012 to 2017. Want more detailed specifications? Download the latest Liebherr A 914 Compact Litronic specs data sheet on LECTURA Specs today!

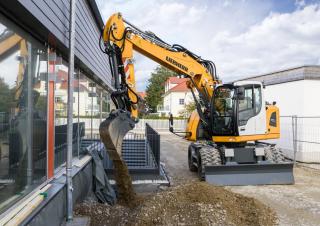

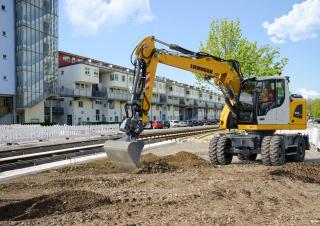

Wheel Excavators Liebherr A 914 Compact Litronic
Wheel Excavators Liebherr A 914 Compact Litronic
Wheel Excavators Liebherr A 914 Compact Litronic
Wheel Excavators Liebherr A 914 Compact Litronic
Wheel Excavators Liebherr A 914 Compact Litronic
Wheel Excavators Liebherr A 914 Compact Litronic
Wheel Excavators Liebherr A 914 Compact Litronic
Wheel Excavators Liebherr A 914 Compact Litronic

Visit Liebherr live at

Technical specs - A 914 Compact Litronic Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.35 t
Standard tyres
10.00-20
Bucket capacity
0.5 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
8.2 m
Transport width
2.55 m
Transport height
3.16 m
Max. Reach horizontal
8.55 m
Dredging depth
5.35 m
Tear-out force
73.7 kN
Bucket width
0.85 m
Travel speed
20 km/h
Model series
A
Engine manuf.
Liebherr
Engine type
D924
Engine power
105 kW
Displacement
4.5 l
Revolutions at max torque
1800 rpm
Emission level
IV

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, number of mono booms, total number of dippers - mono, number of articulated booms...

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, number of mono booms, total number of dippers - mono, number of articulated booms, telematics available, platform, emission rating, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, maximum transport length - mono boom, transport height - over mono boom, overall width, machine width - maximum, wheelbase, rear axle to slew centre, tailswing radius, cab height, ground clearance, overall width - stabilisers down, mono boom size, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, max bucket breakout, mono boom, max bucket breakout, artic boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr A 914 Compact Litronic FAQ

When was the Liebherr A 914 Compact Litronic manufactured?

The Liebherr A 914 Compact Litronic was manufactured from 2012 to 2019.

How much does the Liebherr A 914 Compact Litronic weigh?

The Liebherr A 914 Compact Litronic weighs 16.35 tons.

What are the transport dimensions of the Liebherr A 914 Compact Litronic wheel excavator?

The Liebherr A 914 Compact Litronic has a transport length of 8.2 meters, a transport width of 2.55 meters, and a transport height of 3.16 meters.

What is the travel speed of the Liebherr A 914 Compact Litronic wheel excavator?

The Liebherr A 914 Compact Litronic has a travel speed of 20 km/h.

What are the undercarriage specifications of the Liebherr A 914 Compact Litronic wheel excavator?

The Liebherr A 914 Compact Litronic is equipped with 10.00-20 standard tyres and has 2-fold outrigger stabilisers.

What are the excavation performance specifications of the Liebherr A 914 Compact Litronic wheel excavator?

The Liebherr A 914 Compact Litronic has an adjustable boom, a maximum horizontal reach of 8.55 meters, and a dredging depth of 5.35 meters.

What is the tear-out force of the Liebherr A 914 Compact Litronic wheel excavator?

The Liebherr A 914 Compact Litronic wheel excavator has a tear-out force of 73.7 kN.

What are the bucket specifications of the Liebherr A 914 Compact Litronic wheel excavator?

The Liebherr A 914 Compact Litronic has a bucket capacity of 0.5 cubic meters and a bucket width of 0.85 meters.

How much is a Liebherr A 914 Compact Litronic Wheel excavator (2012u20132019) worth?

The residual value of the Liebherr A 914 Compact Litronic depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
