PW160-7 Komatsu Excavator Specs & Dimensions - (2004 - 2018)

Weight: 17.09t – Standard tyres: 10.0-20-14 PR – Bucket capacity: 0.97m³ – Outrigger stabilisers: 42/4-fold – Transport length: 8.…

Weight: 17.09t – Standard tyres: 10.0-20-14 PR – Bucket capacity: 0.97m³ – Outrigger stabilisers: 42/4-fold – Transport length: 8.12m – Transport width: 2.55m

Check out detailed dimensions, specifications, information and technical data for Komatsu PW160-7 excavator manufactured between 2004 - 2018. Get more in-depth insight with Komatsu PW160-7 digger specifications. See information, like: Weight: 17.09t – Standard tyres: 10.0-20-14 PR – Bucket capacity: 0.97m³ – Outrigger stabilisers: 42/4-fold – Transport length: 8.12m – Transport width: 2.55m and more.

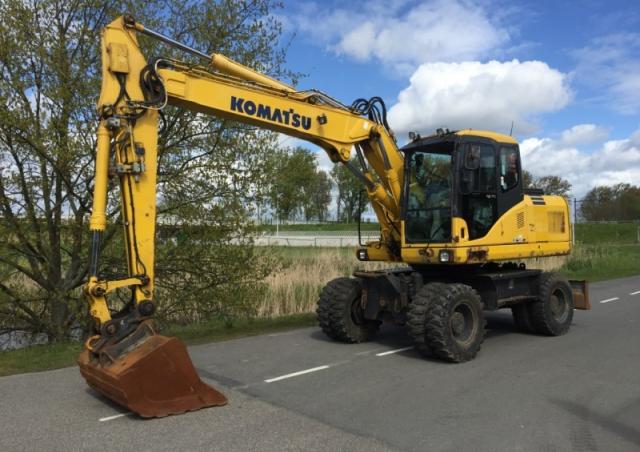

Wheel Excavators Komatsu PW160-7

Visit Komatsu live at

Technical specs - PW160-7 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.09 t
Standard tyres
10.0-20-14 PR
Bucket capacity
0.97 m³
Outrigger stabilisers
4 2/4-fold
Transport length
8.12 m
Transport width
2.55 m
Transport height
3.975 m
Max. Reach horizontal
9.5 m
Dredging depth
5.895 m
Bucket width
1.4 m
Turning radius inside
6.79 m
Travel speed
35 km/h
Model series
PW
Engine manuf.
Komatsu
Engine type
SAA4D102E-2
Engine power
90 kW
Displacement
3.9 l
Revolutions at max torque
2200 rpm
No. of cylinders
4
Cylinder bore x stroke
102x120 mm

More technical details, like: bucket capacity min., bucket capacity max., boom, tear-out force, dipper length, turning radius outside, dimension lxwxh, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PW160-7 FAQ

When was the Komatsu PW160-7 manufactured?

The Komatsu PW160-7 was manufactured from 2004 to 2018.

How much does the Komatsu PW160-7 wheel excavator weigh?

The Komatsu PW160-7 wheel excavator weighs 17.09 tons.

What are the transport dimensions of the Komatsu PW160-7 wheel excavator?

The Komatsu PW160-7 has a transport length of 8.12 meters, a transport width of 2.55 meters, and a transport height of 3.98 meters.

What is the travel speed of the Komatsu PW160-7 wheel excavator?

The Komatsu PW160-7 has a travel speed of 35 km/h.

What are the undercarriage specifications of the Komatsu PW160-7 wheel excavator?

The Komatsu PW160-7 wheel excavator is equipped with 10.0-20-14 PR standard tyres and features 4-fold outrigger stabilisers.

What is the turning radius inside of the Komatsu PW160-7 wheel excavator?

The Komatsu PW160-7 wheel excavator has an inside turning radius of 6.79 meters.

What are the excavation performance specifications of the Komatsu PW160-7?

The Komatsu PW160-7 has a dredging depth of 5.895 meters and a maximum horizontal reach of 9.5 meters.

What are the bucket specifications of the Komatsu PW160-7 wheel excavator?

The Komatsu PW160-7 wheel excavator has a bucket capacity of 0.97 cubic meters and a bucket width of 1.4 meters.

How much is a Komatsu PW160-7 Wheel excavator (2004u20132018) worth?

The residual value of the Komatsu PW160-7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
