900 FAI Excavator Specs & Dimensions - (1990 - 1993)

Manufactured by FAI, this is the 900 wheel excavator. Find and download detailed specs and data sheets for this machine here. …

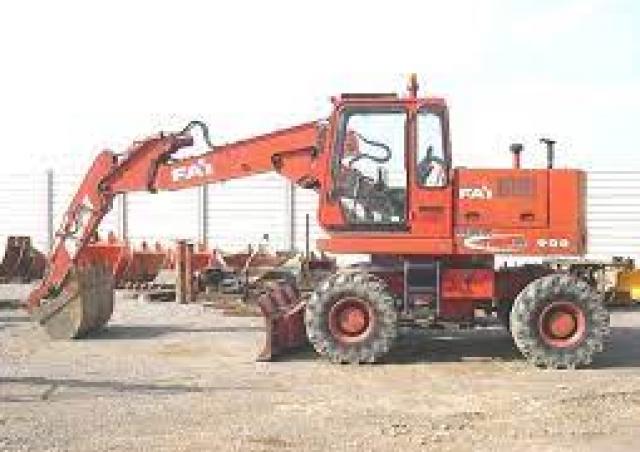

Manufactured by FAI, this is the 900 wheel excavator. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful Perkins engine, this 900 13t machine can provide 54.5kW or 73 horse power for the wheel excavator. The 900 is categorised in the smallest machine segment in the wheel excavators category. The 900’s size is 2.46m x 6.35m x 3.1m. The bucket capacity of 900 is 0,4m³, which is above average for this type of machine.

It does not include Aircondition, Cabin adjustment and Track guidance. There are more detailed specifications and machine descriptions available in the original FAI 900 specs data sheet.

The production stopped in 1993, where this 900 was available at a new list price between €88000 and €112000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, other wheel excavators, which range from up to are produced by FAI. Of these, are the most frequently visited on LECTURA Specs. Want more detailed specifications? Download the latest FAI 900 specs data sheet on LECTURA Specs today!

Wheel Excavators FAI 900

Technical specs - 900 FAI

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13 t
Standard tyres
9.00-20
Bucket capacity
0.4 m³
Transport length
6.35 m
Transport width
2.46 m
Transport height
3.1 m
Engine manuf.
Perkins
Engine type
4.236 I
Engine power
54.5 kW

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed...

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

FAI 900 FAQ

When was the FAI 900 wheel excavator manufactured?

The FAI 900 wheel excavator was manufactured from 1990 to 1993.

How much does the FAI 900 wheel excavator weigh?

The FAI 900 wheel excavator weighs 13 tons.

What are the transport dimensions of the FAI 900 wheel excavator?

The FAI 900 wheel excavator has a transport length of 6.35 meters, a transport width of 2.46 meters, and a transport height of 3.1 meters.

What are the undercarriage specifications of the FAI 900 wheel excavator?

The FAI 900 wheel excavator is equipped with standard tyres sized 9.00-20.

What is the bucket capacity of the FAI 900 wheel excavator?

The bucket capacity of the FAI 900 wheel excavator is 0.4 cubic meters.

How much is a FAI 900 Wheel excavator (1990u20131993) worth?

The residual value of the FAI 900 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
