TW 75 Schaeff Excavator Specs & Dimensions - (2017 - 2026)

The TW 75 wheel excavator model is manufactured by Schaeff. Find and download detailed specs and data sheets for this machine here…

The TW 75 wheel excavator model is manufactured by Schaeff. Find and download detailed specs and data sheets for this machine here.

This wheel excavator is built to provide up to 55.4kW or 74 horse power, delivered from its powerful Deutz engine to the 7.4t TW 75 machine. The Schaeff TW 75 can be grouped in the smallest machine segment in the wheel excavators category. The TW 75’s size is 2.2m x 5.71m x 2.92m. The bucket of TW 75 has a capacity of 0.127m³ which is average for this type of machine.

The TW 75 is manufactured and distributed with Blade, Quick hitch mech. And Overload alert. Quick hitch hydr., Diesel particulate filter and Track guidance are not provided on this model as of 2017. There are more detailed specifications and machine descriptions available in the original Schaeff TW 75 specs data sheet. Available in English, French and German, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.

The production is still going in 2017, where this TW 75 is available at a new list price between €122000 and €156000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, 3 other wheel excavators, which range from 8.6t up to 11t are produced by Schaeff. Of these, TW 95, TW 110 and also TW 95 are the most frequently visited on LECTURA Specs. This TW 75 wheel excavator, which has been in production between 2017 and 2017 ranks in the LECTURA index at #100. Want more detailed specifications? Download the latest Schaeff TW 75 specs data sheet on LECTURA Specs today!

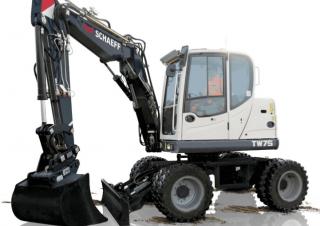

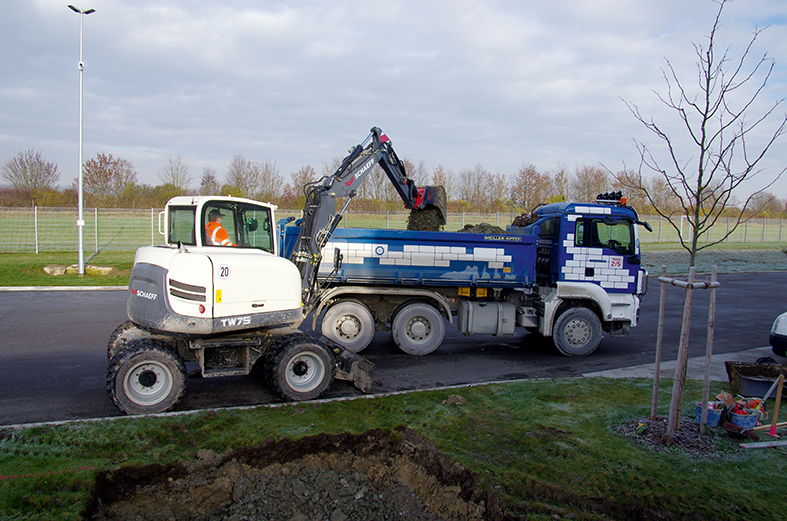

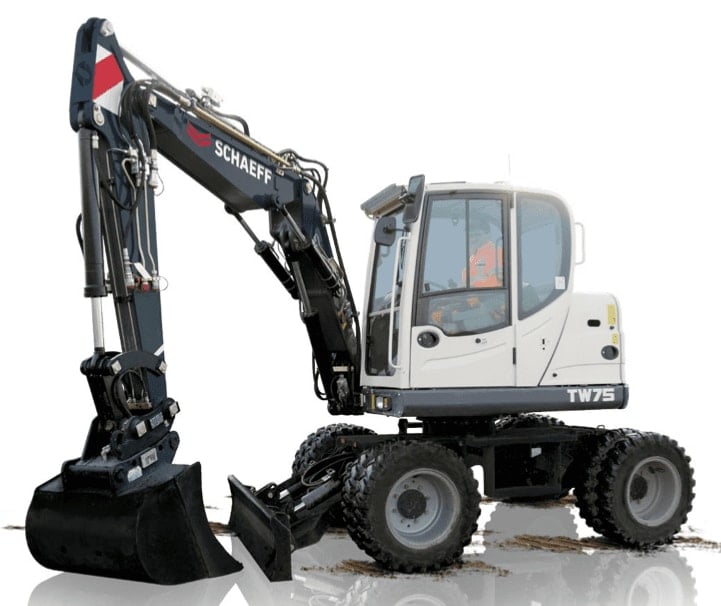

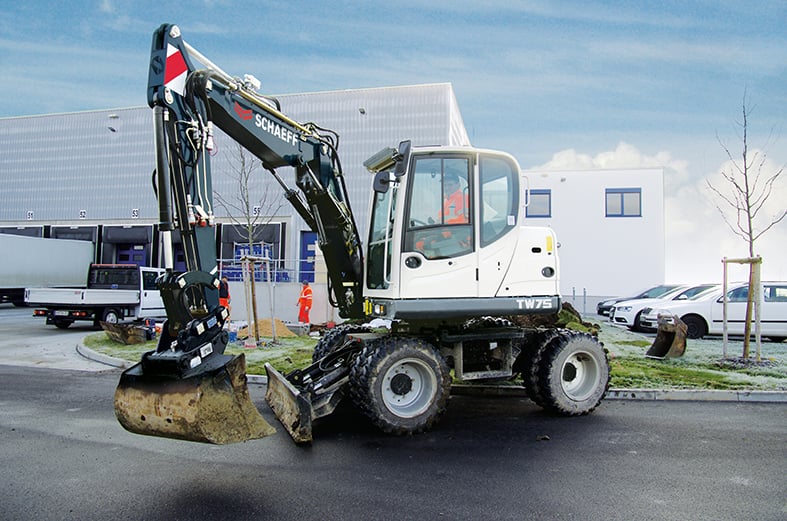

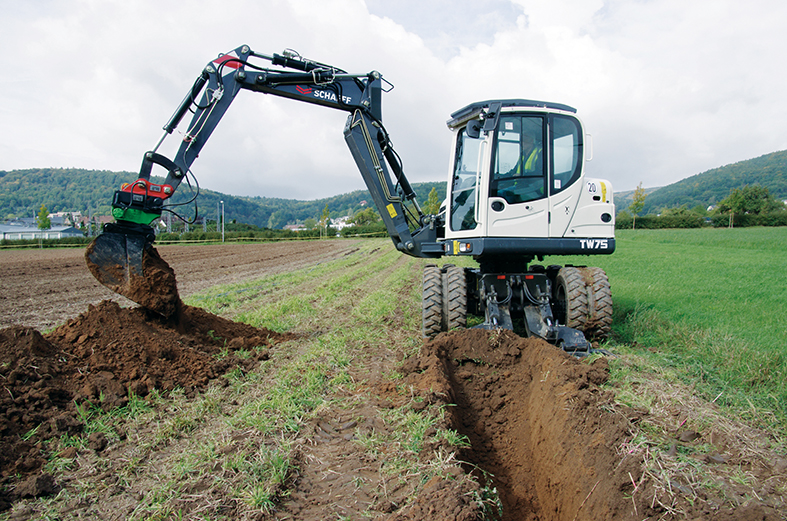

Wheel Excavators Schaeff TW 75
Wheel Excavators Schaeff TW 75
Wheel Excavators Schaeff TW 75
Wheel Excavators Schaeff TW 75
Wheel Excavators Schaeff TW 75
Wheel Excavators Schaeff TW 75
Wheel Excavators Schaeff TW 75
Wheel Excavators Schaeff TW 75

Technical specs - TW 75 Schaeff

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.4 t
Standard tyres
8.25-20
Bucket capacity
0.127 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
5.71 m
Transport width
2.2 m
Transport height
2.94 m
Max. Reach horizontal
6.81 m
Dredging depth
3.58 m
Tear-out force
30 kN
Bucket width
0.4 m
Travel speed
20 km/h
Engine manuf.
Deutz
Engine type
TCD2.9 L4
Engine power
55.4 kW
Displacement
2.9 l
Revolutions at max torque
1600 rpm
Max. torque
300 Nm
No. of cylinders
4
Cylinder bore x stroke
92x110 mm
Emission level
EU IIIB / T4F

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, model series, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
Yes

Download datasheets (PDF)

Schaeff TW 75 FAQ

When was the Schaeff TW 75 manufactured?

The Schaeff TW 75 was first produced in 2017.

How much does the Schaeff TW 75 weigh?

The Schaeff TW 75 weighs 7.4 tons.

What are the transport dimensions of the Schaeff TW 75 wheel excavator?

The Schaeff TW 75 has a transport length of 5.71 meters, a transport width of 2.2 meters, and a transport height of 2.94 meters.

What is the travel speed of the Schaeff TW 75 wheel excavator?

The Schaeff TW 75 has a travel speed of 20 km/h.

What are the undercarriage specifications of the Schaeff TW 75 wheel excavator?

The Schaeff TW 75 is equipped with standard tyres sized 8.25-20 and has 2 outrigger stabilisers.

What are the excavation performance specifications of the Schaeff TW 75 wheel excavator?

The Schaeff TW 75 has a dredging depth of 3.58 meters, a maximum horizontal reach of 6.81 meters, and features an adjustable boom.

What power rating information is available for the Schaeff TW 75 wheel excavator?

There is no power rating information available for the Schaeff TW 75 wheel excavator in the provided data.

What are the bucket specifications of the Schaeff TW 75 wheel excavator?

The Schaeff TW 75 wheel excavator has a bucket capacity of 0.127 cubic meters and a bucket width of 0.4 meters.
