E57W Bobcat Excavator Specs & Dimensions - (2016 - 2026)

The E 57 W mini excavator model is manufactured by Bobcat. Find and download detailed specs and data sheets for this machine here.…

The E 57 W mini excavator model is manufactured by Bobcat. Find and download detailed specs and data sheets for this machine here.

This mini excavator is built to provide up to 42.5kW or 56 horse power, delivered from its powerful Bobcat engine to the 5.93t E 57 W machine. The Bobcat E 57 W can be grouped in the biggest machine segment in the mini excavators category. The E 57 W’s size is 2.29m x 6.12m x 2.95m.

Quick hitch mech., Track adaption and Aircondition are not provided on this model as of 2017. There are more detailed specifications and machine descriptions available in the original Bobcat E 57 W specs data sheet.

The production is still going in 2017, where this E 57 W is available at a new list price between €79000 and €101000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Bobcat models of this type on LECTURA Specs are the E 25, E 50 and E 35, and 13 other mini excavators, which currently range from 1.1t up to 5.5t are also available. Having been in production from 2016 to 2017, the E 57 W mini excavator ranks in the LECTURA index at #77. Want more detailed specifications? Download the latest Bobcat E 57 W specs data sheet on LECTURA Specs today!

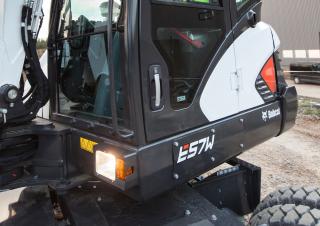

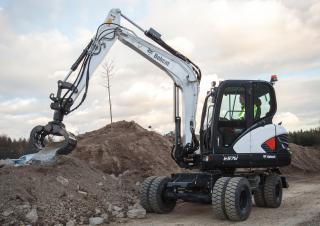

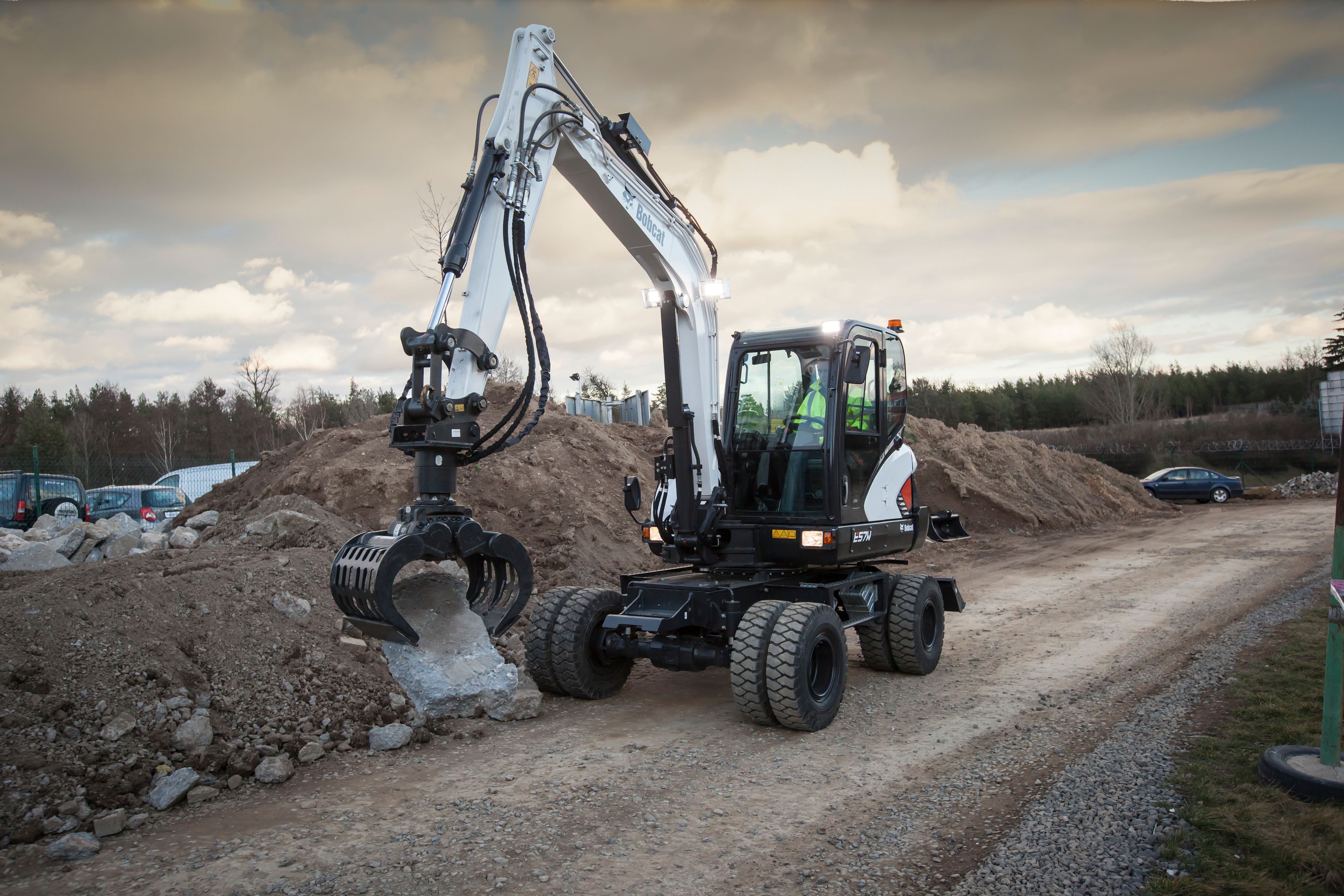

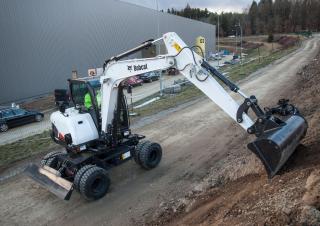

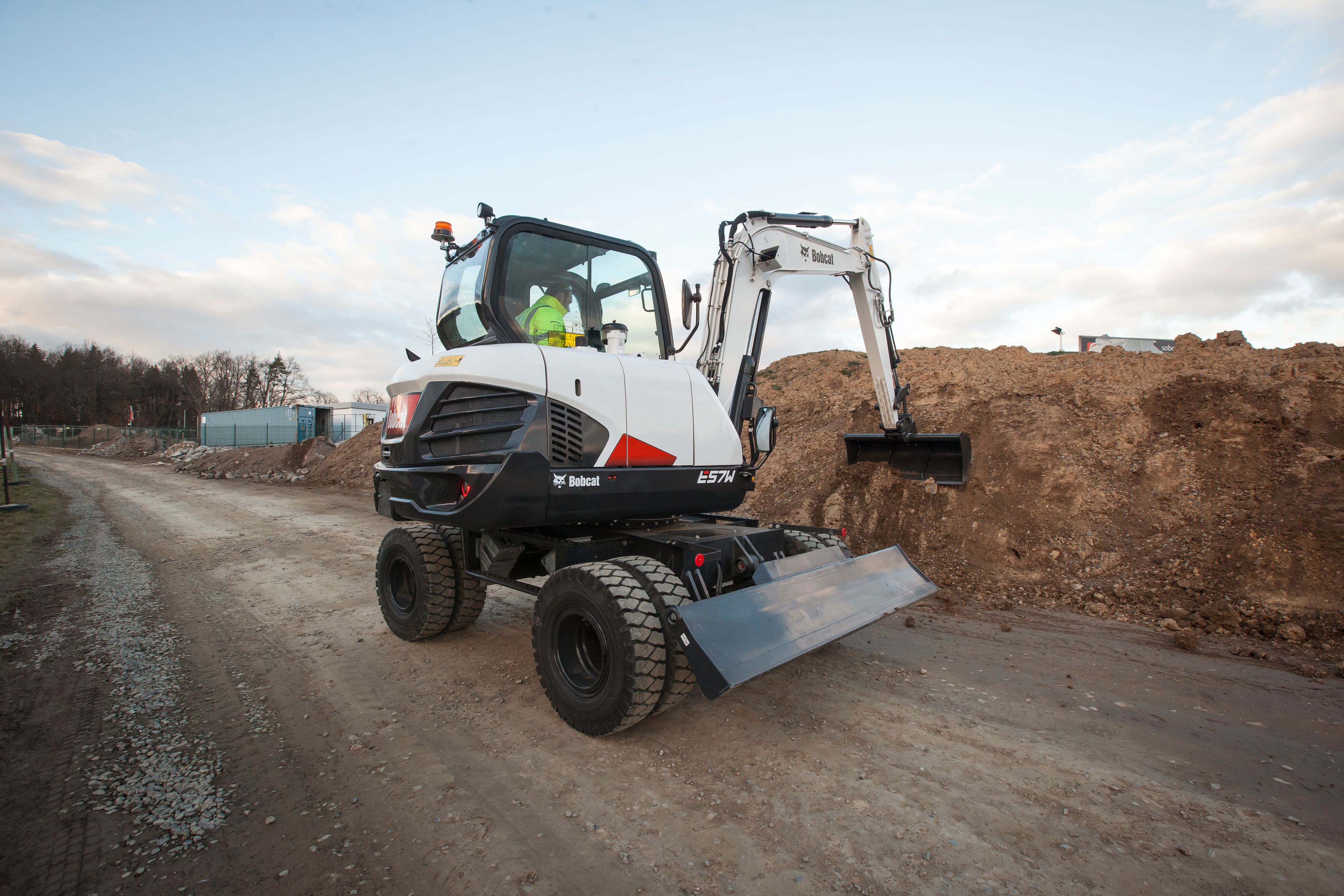

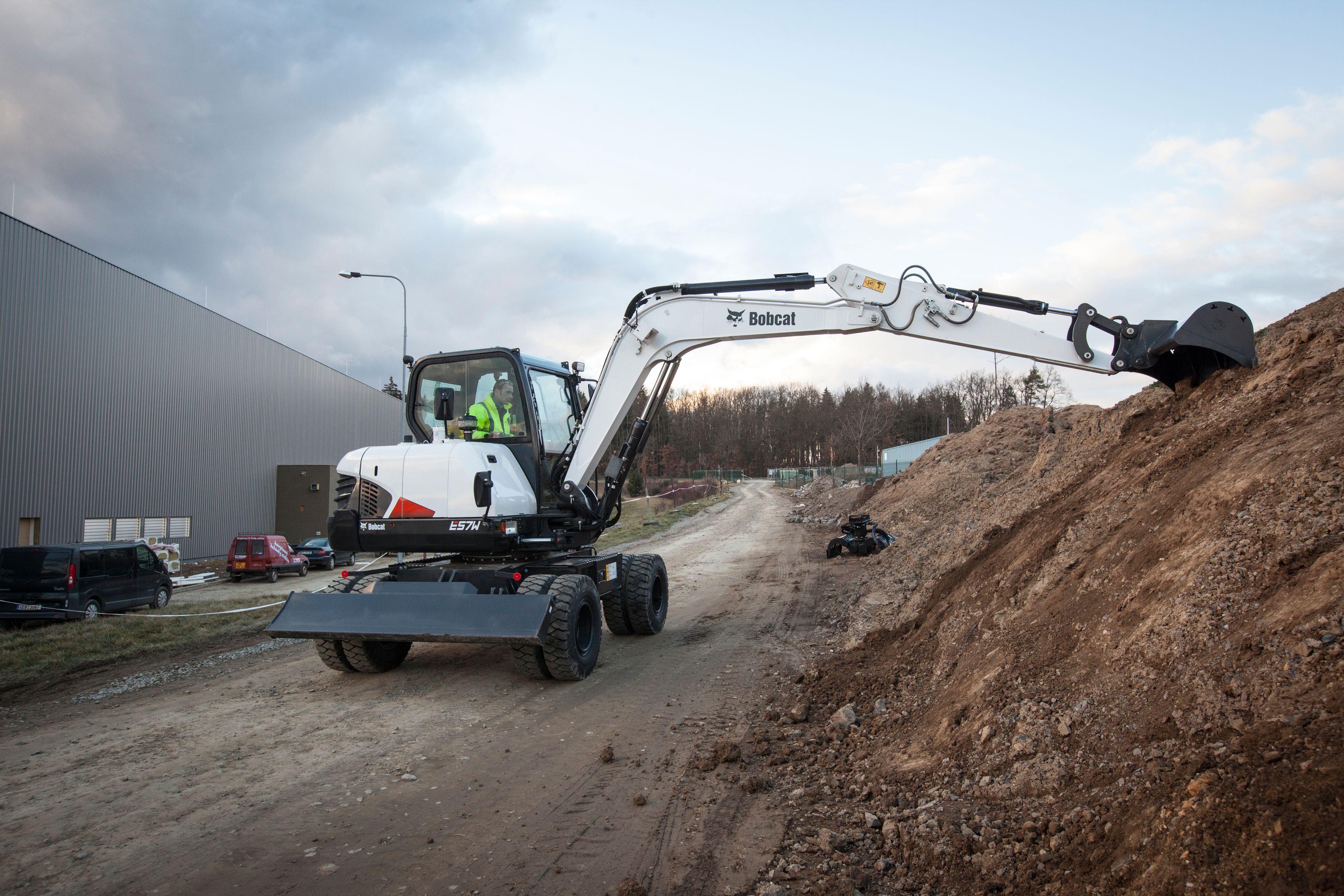

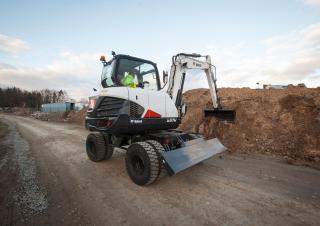

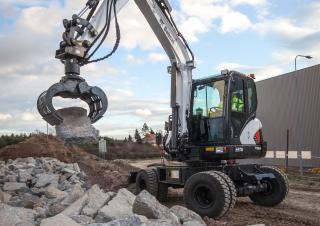

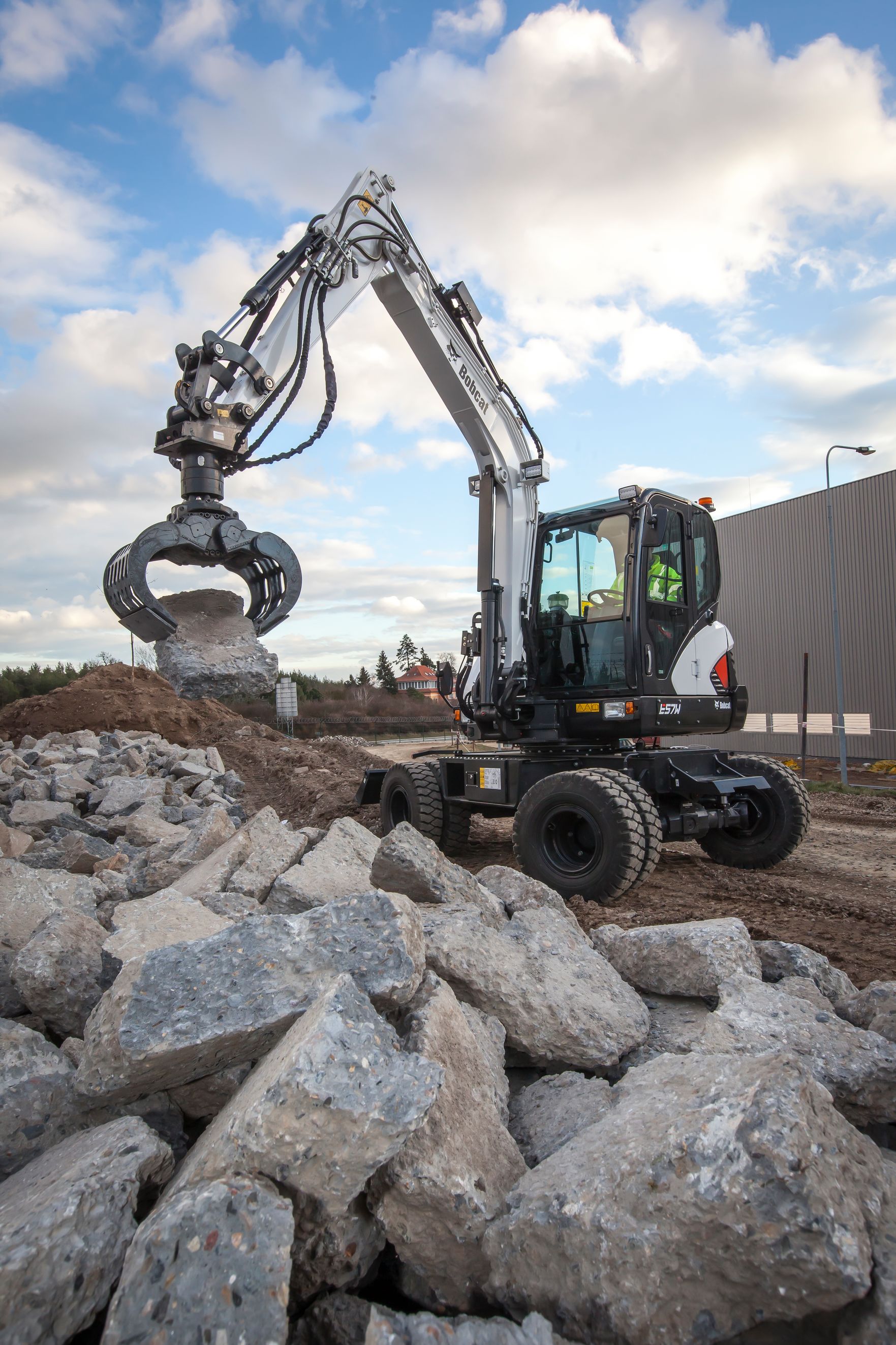

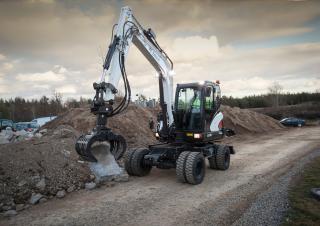

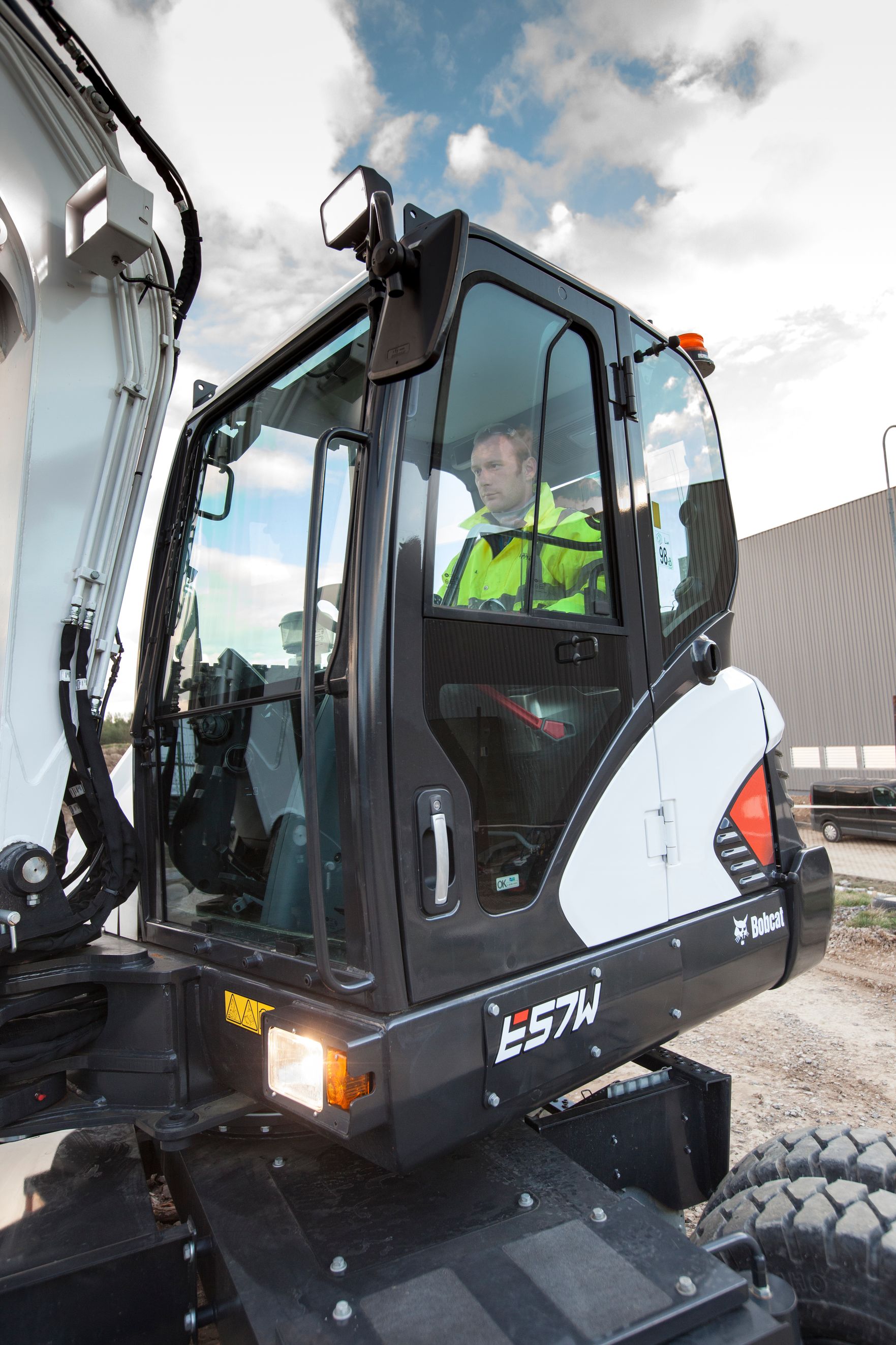

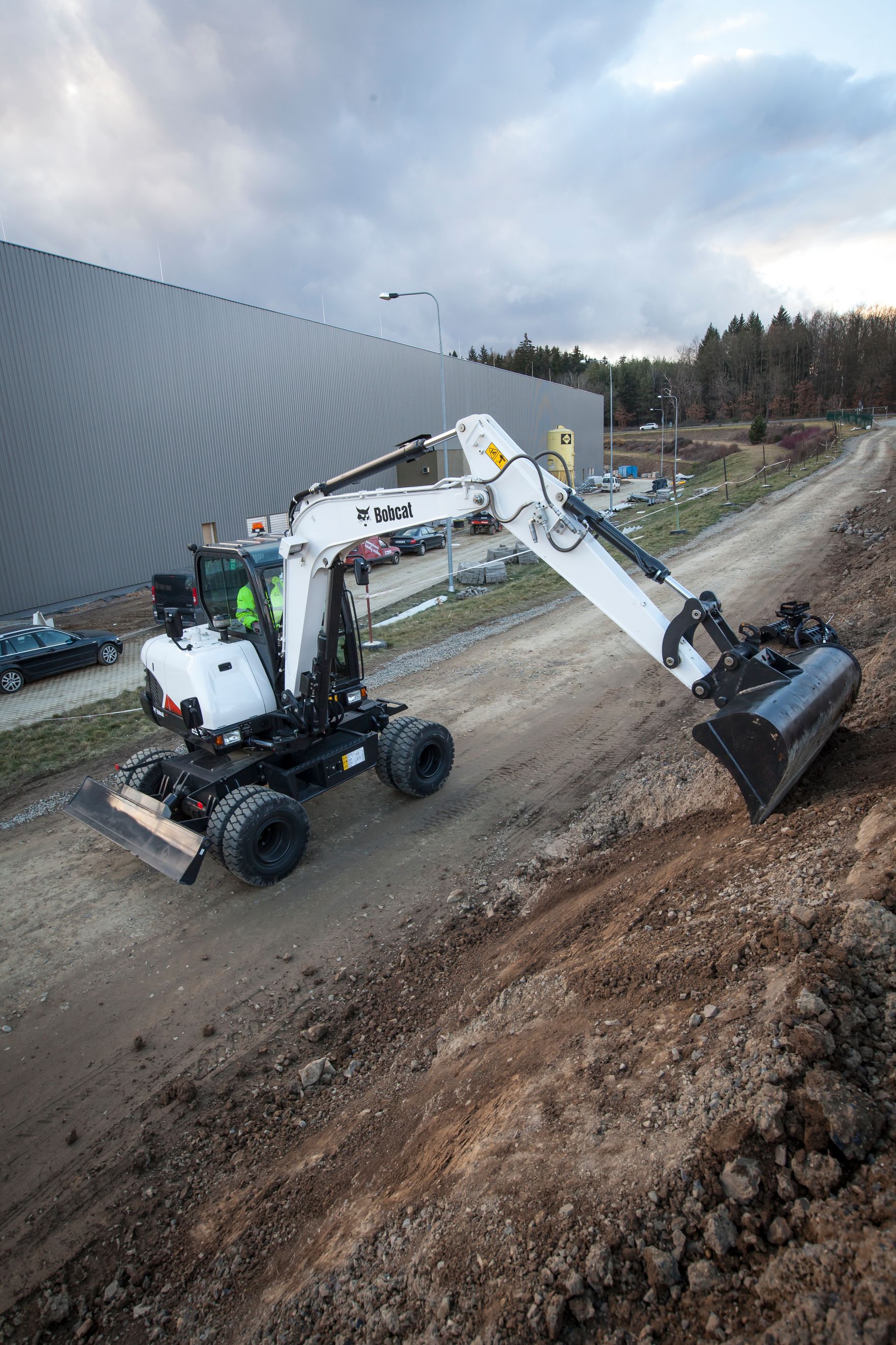

Wheel Excavators Bobcat E57W
Wheel Excavators Bobcat E57W
Wheel Excavators Bobcat E57W
Wheel Excavators Bobcat E57W
Wheel Excavators Bobcat E57W
Wheel Excavators Bobcat E57W
Wheel Excavators Bobcat E57W
Wheel Excavators Bobcat E57W
Wheel Excavators Bobcat E57W
Wheel Excavators Bobcat E57W
Wheel Excavators Bobcat E57W
Wheel Excavators Bobcat E57W
Wheel Excavators Bobcat E57W
Wheel Excavators Bobcat E57W
Wheel Excavators Bobcat E57W
Wheel Excavators Bobcat E57W

Visit Bobcat live at

Technical specs - E57W Bobcat

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.93 t
Transport length
6.12 m
Transport height
2.95 m
Max. Reach horizontal
5.888 m
Dredging depth
3.495 m
Model series
E
Engine manuf.
Bobcat
Engine type
D24
Engine power
42.5 kW
Displacement
2.392 l
Max. torque
204 Nm
No. of cylinders
4
Emission level
TIER4

More technical details, like: standard tyres, bucket capacity, bucket capacity min., bucket capacity max., boom, outrigger stabilisers, transport width, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside...

More technical details, like: standard tyres, bucket capacity, bucket capacity min., bucket capacity max., boom, outrigger stabilisers, transport width, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, revolutions at max torque, cylinder bore x stroke, number of mono booms, total number of dippers - mono, emission rating, engine manufacturer, engine model, auto idle, rated speed, transmission type, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, overall width, machine width - maximum, wheelbase, tailswing radius, cab height, overall width - stabilisers down, mono boom size, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, dozer blade - width, fuel tank, slew speed, sound level standard, sound level internal, sound level external, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Bobcat E57W FAQ

When was the Bobcat E57W manufactured?

The Bobcat E57W was first produced in 2016.

How much does the Bobcat E57W weigh?

The Bobcat E57W weighs 5.93 tons.

What are the transport dimensions of the Bobcat E57W?

The Bobcat E57W has a transport length of 6.12 meters and a transport height of 2.95 meters.

What are the excavation performance specifications of the Bobcat E57W wheel excavator?

The Bobcat E57W wheel excavator has a dredging depth of 3.495 meters and a maximum horizontal reach of 5.888 meters.

How much is a Bobcat E57W Wheel excavator (2016u20132025) worth?

The residual value of the Bobcat E57W depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
