HML 20 Terex-Schaeff Excavator Specs & Dimensions - ( - 1994)

Terex-Schaeff is the manufacturer of the mini excavator model HML 20. Find and download detailed specs and data sheets for this ma…

Terex-Schaeff is the manufacturer of the mini excavator model HML 20. Find and download detailed specs and data sheets for this machine here.

The Terex-Schaeff HML 20 is a 4.9t machine with Deutz engine which powers this model with up to 38kW or 50 horse power. The HML 20 is categorised in the biggest machine segment in the mini excavators category. The bucket capacity of HML 20 is 0.2m³, which is above average for this type of machine.

Quick hitch mech., Blade and Rubber track are not provided on this model as of 1994. There are more detailed specifications and machine descriptions available in the original Terex-Schaeff HML 20 specs data sheet. You can download it for free in German on LECTURA Specs.

At present, other mini excavators, which range from up to are produced by Terex-Schaeff. Of these, are the most frequently visited on LECTURA Specs. Want more detailed specifications? Download the latest Terex-Schaeff HML 20 specs data sheet on LECTURA Specs today!

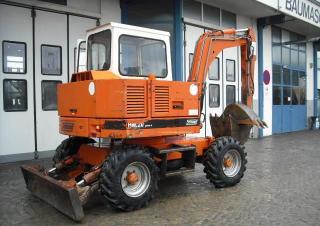

Wheel Excavators Terex-Schaeff HML 20

Technical specs - HML 20 Terex-Schaeff

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.9 t
Standard tyres
12.0-18
Bucket capacity min.
0.065 m³
Bucket capacity max.
0.200 m³
Model series
HML
Engine manuf.
Deutz
Engine type
F4L1011
Engine power
38 kW

More technical details, like: bucket capacity, boom, outrigger stabilisers, transport length, transport width, transport height, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside...

More technical details, like: bucket capacity, boom, outrigger stabilisers, transport length, transport width, transport height, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Terex-Schaeff HML 20 FAQ

When was the Terex-Schaeff HML 20 manufactured?

The Terex-Schaeff HML 20 was manufactured until 1994.

How much does the Terex-Schaeff HML 20 weigh?

The Terex-Schaeff HML 20 weighs 4.9 tons.

What is the standard tyre size of the Terex-Schaeff HML 20 wheel excavator?

The Terex-Schaeff HML 20 wheel excavator has standard tyres sized 12.0-18.

What are the bucket capacity specifications of the Terex-Schaeff HML 20 wheel excavator?

The Terex-Schaeff HML 20 has a bucket capacity ranging from 0.07 to 0.2 cubic meters.

How much is a Terex-Schaeff HML 20 Wheel excavator (manufactured before 1994) worth?

The residual value of the Terex-Schaeff HML 20 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
