A 920 Litronic Liebherr Excavator Specs & Dimensions - (2012 - 2017)

Manufactured by Liebherr, this is the A 920 Litronic wheel excavator. Find and download detailed specs and data sheets for this ma…

Manufactured by Liebherr, this is the A 920 Litronic wheel excavator. Find and download detailed specs and data sheets for this machine here.

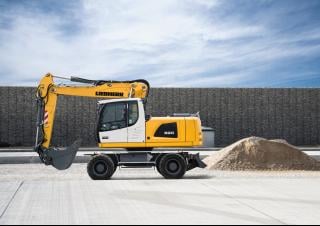

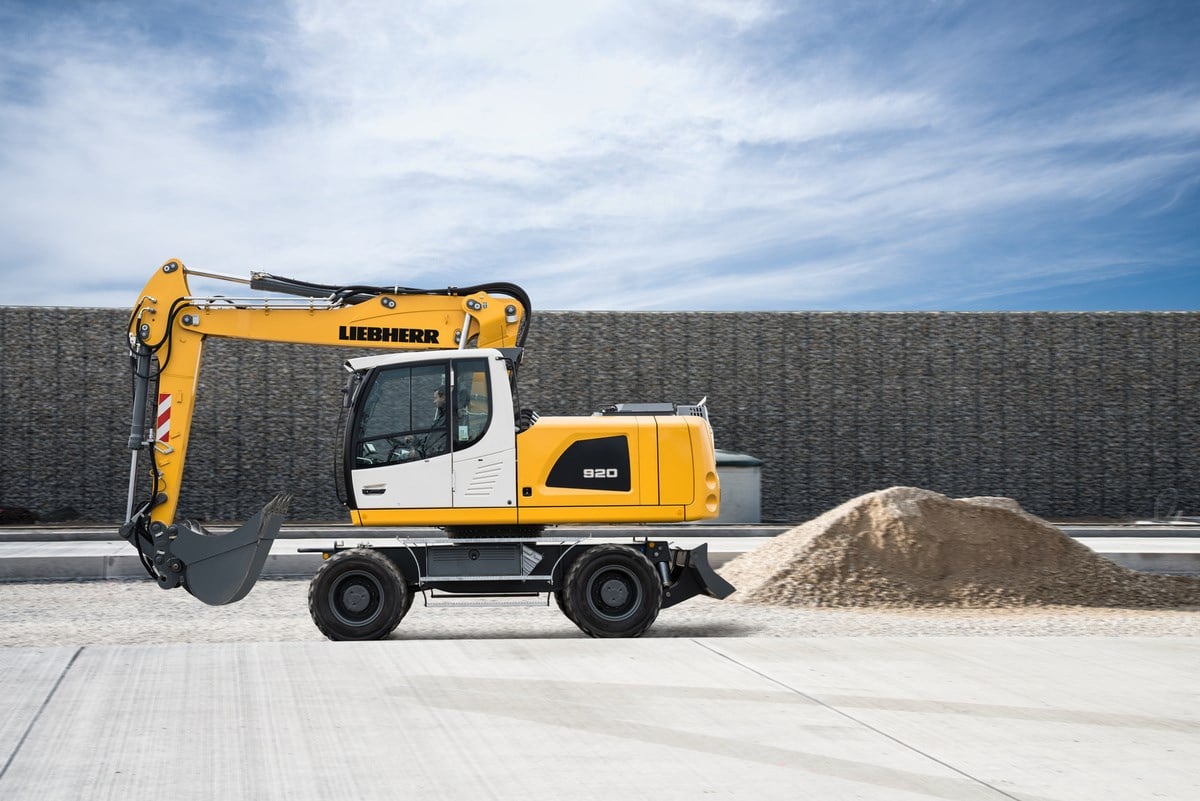

The Liebherr A 920 Litronic is a 19.4t machine with Liebherr engine which powers this model with up to 120kW or 160 horse power. This Liebherr wheel excavator belongs to the biggest machine segment in the wheel excavators category. The model's dimensions are 9.2m x 2.55m x 3.16m. The bucket of A 920 Litronic has a capacity of 0.8m³ which is average for this type of machine.

The A 920 Litronic is manufactured and distributed with Quick hitch hydr., Blade and Overload alert. It does not include Track guidance, Cabin adjustment and Material Handling Excavator. There are more detailed specifications and machine descriptions available in the original Liebherr A 920 Litronic specs data sheet.

This model can be acquired for a list price between €303000 and €386000. Production of the A 920 Litronic continues in 2017. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, 11 other wheel excavators, which range from 11.8t up to 27.1t are produced by Liebherr. Of these, A 914 Litronic, A 914 Compact Litronic and also A 916 Litronic are the most frequently visited on LECTURA Specs. Ranked in the LECTURA index at #116, this A 920 Litronic wheel excavator has models that date from 2012 to 2017. Want more detailed specifications? Download the latest Liebherr A 920 Litronic specs data sheet on LECTURA Specs today!

Wheel Excavators Liebherr A 920 Litronic

Visit Liebherr live at

Technical specs - A 920 Litronic Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
19.4 t
Standard tyres
10.00-20
Bucket capacity
0.8 m³
Boom
VA
Outrigger stabilisers
2/4 2/4-fold
Transport length
9.2 m
Transport width
2.55 m
Transport height
3.16 m
Max. Reach horizontal
9.95 m
Dredging depth
6.6 m
Tear-out force
96.6 kN
Bucket width
1.05 m
Travel speed
25 km/h
Model series
A
Engine manuf.
Liebherr
Engine type
D 834
Engine power
120 kW
Displacement
4.6 l
Revolutions at max torque
1800 rpm
Emission level
IIIB

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, number of mono booms, total number of dippers - mono, number of articulated booms...

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, number of mono booms, total number of dippers - mono, number of articulated booms, telematics available, platform, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, overall width, machine width - maximum, wheelbase, rear axle to slew centre, tailswing radius, cab height, ground clearance, overall width - stabilisers down, mono boom size, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, max bucket breakout, mono boom, max bucket breakout, artic boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Liebherr A 920 Litronic FAQ

When was the Liebherr A 920 Litronic manufactured?

The Liebherr A 920 Litronic was manufactured from 2012 to 2017.

How much does the Liebherr A 920 Litronic weigh?

The Liebherr A 920 Litronic weighs 19.4 tons.

What are the transport dimensions of the Liebherr A 920 Litronic wheel excavator?

The Liebherr A 920 Litronic has a transport length of 9.2 meters, a transport width of 2.55 meters, and a transport height of 3.16 meters.

What is the travel speed of the Liebherr A 920 Litronic wheel excavator?

The Liebherr A 920 Litronic has a travel speed of 25 km/h.

What is the fuel consumption range of the Liebherr A 920 Litronic wheel excavator?

The fuel consumption range of the Liebherr A 920 Litronic wheel excavator is between 6 and 10 liters per hour.

What are the undercarriage specifications of the Liebherr A 920 Litronic wheel excavator?

The Liebherr A 920 Litronic is equipped with standard 10.00-20 tyres and features 2/4-fold outrigger stabilisers.

What are the excavation performance specifications of the Liebherr A 920 Litronic wheel excavator?

The Liebherr A 920 Litronic has a dredging depth of 6.6 meters, a maximum horizontal reach of 9.95 meters, and features an adjustable boom.

What is the tear-out force of the Liebherr A 920 Litronic wheel excavator?

The Liebherr A 920 Litronic wheel excavator has a tear-out force of 96.6 kN.

What are the specifications of the bucket on the Liebherr A 920 Litronic wheel excavator?

The bucket of the Liebherr A 920 Litronic has a capacity of 0.8 cubic meters and a width of 1.05 meters.

How much is a Liebherr A 920 Litronic Wheel excavator (2012u20132017) worth?

The residual value of the Liebherr A 920 Litronic depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
