A 918 Compact Litronic Liebherr Excavator Specs & Dimensions - (2011 - 2016)

Model rating
4,50 / 10

Liebherr is the manufacturer of the wheel excavator model A 918 Compact Litronic. Find and download detailed specs and data sheets…

Liebherr is the manufacturer of the wheel excavator model A 918 Compact Litronic. Find and download detailed specs and data sheets for this machine here.

This wheel excavator is built to provide up to 110kW or 147 horse power, delivered from its powerful Liebherr engine to the 17.8t A 918 Compact Litronic machine. The Liebherr A 918 Compact Litronic can be grouped in the medium sized machine segment in the wheel excavators category. The A 918 Compact Litronic’s size is 2.55m x 8.35m x 3.165m. The bucket of A 918 Compact Litronic has a capacity of 0,6m³ which is average for this type of machine.

The Liebherr A 918 Compact Litronic has been equipped and sold with Blade, Aircondition and Overload alert. Quick hitch hydr., Track guidance and Quick hitch mech. Are not provided on this model as of 2016. There are more detailed specifications and machine descriptions available in the original Liebherr A 918 Compact Litronic specs data sheet. You can download it for free in French, English and German on LECTURA Specs.

This model can be acquired for a list price between €281000 and €358000. Production of the A 918 Compact Litronic stopped in 2016. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Liebherr models of this type on LECTURA Specs are the A 914 Compact Litronic, A 916 Litronic and A 914 Litronic, and 12 other wheel excavators, which currently range from 11.8t up to 27.1t are also available. Want more detailed specifications? Download the latest Liebherr A 918 Compact Litronic specs data sheet on LECTURA Specs today!

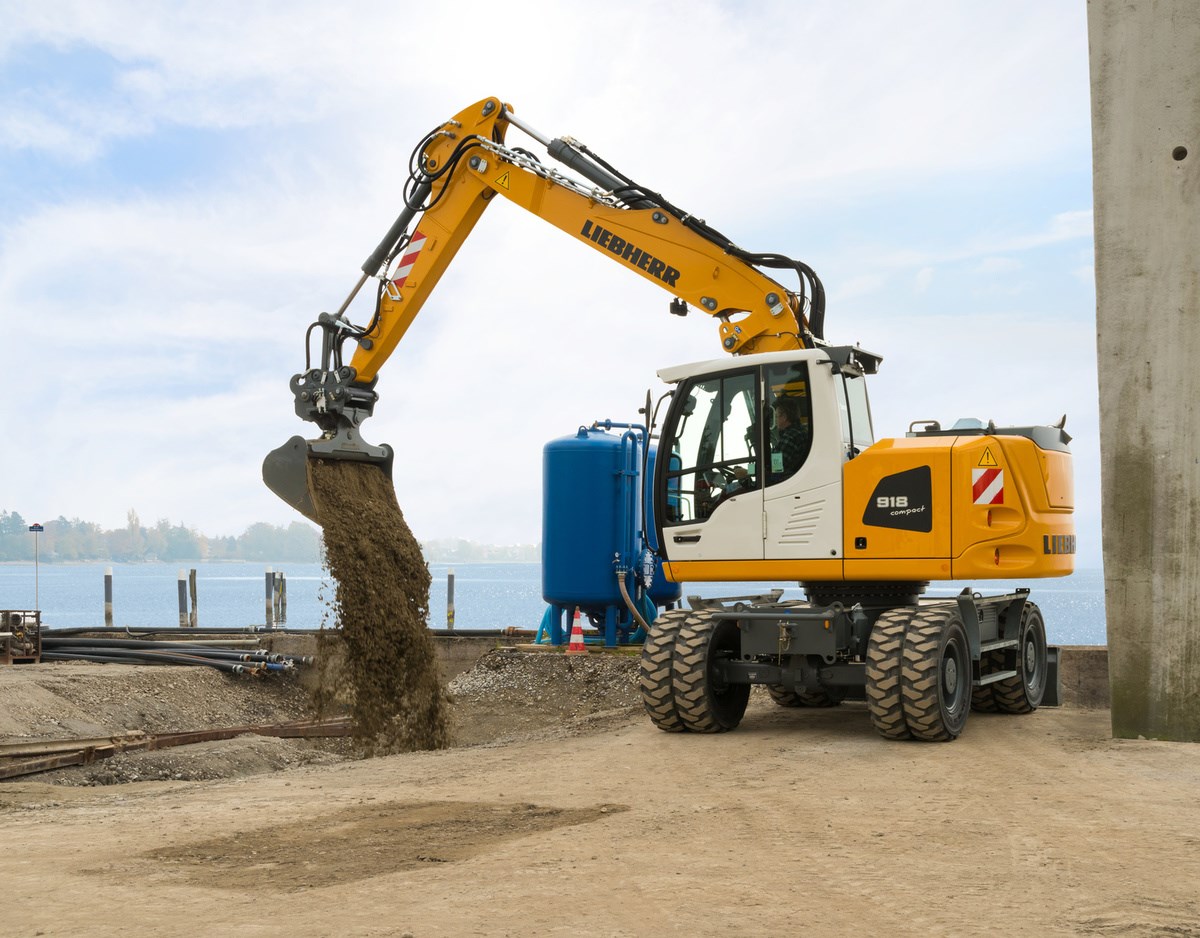

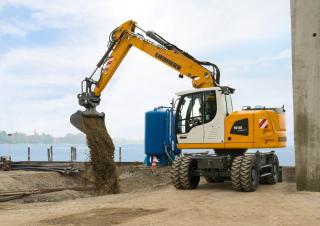

Wheel Excavators Liebherr A 918 Compact Litronic
Wheel Excavators Liebherr A 918 Compact Litronic
Wheel Excavators Liebherr A 918 Compact Litronic
Wheel Excavators Liebherr A 918 Compact Litronic

Visit Liebherr live at

Technical specs - A 918 Compact Litronic Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.8 t
Standard tyres
10.00-20
Bucket capacity
0.6 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
8.35 m
Transport width
2.55 m
Transport height
3.165 m
Max. Reach horizontal
8.7 m
Dredging depth
5.4 m
Tear-out force
81 kN
Bucket width
0.85 m
Travel speed
30 km/h
Model series
A
Engine manuf.
Liebherr
Engine type
D 834
Engine power
110 kW
Displacement
4.6 l
Revolutions at max torque
1800 rpm
Emission level
IIIB

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, number of mono booms, total number of dippers - mono, number of articulated booms...

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, number of mono booms, total number of dippers - mono, number of articulated booms, telematics available, platform, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, maximum transport length - mono boom, transport height - over mono boom, overall width, machine width - maximum, wheelbase, rear axle to slew centre, tailswing radius, cab height, ground clearance, overall width - stabilisers down, mono boom size, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr A 918 Compact Litronic FAQ

When was the Liebherr A 918 Compact Litronic manufactured?

The Liebherr A 918 Compact Litronic was manufactured from 2011 to 2016.

How much does the Liebherr A 918 Compact Litronic weigh?

The Liebherr A 918 Compact Litronic weighs 17.8 tons.

What are the transport dimensions of the Liebherr A 918 Compact Litronic wheel excavator?

The Liebherr A 918 Compact Litronic has a transport length of 8.35 meters, a transport width of 2.55 meters, and a transport height of 3.17 meters.

What is the travel speed of the Liebherr A 918 Compact Litronic wheel excavator?

The Liebherr A 918 Compact Litronic has a travel speed of 30 km/h.

What is the fuel consumption range of the Liebherr A 918 Compact Litronic wheel excavator?

The Liebherr A 918 Compact Litronic has a fuel consumption range of 5 to 9 liters per hour.

What are the undercarriage specifications of the Liebherr A 918 Compact Litronic?

The Liebherr A 918 Compact Litronic has standard tyres sized 10.00-20 and is equipped with 2 outrigger stabilisers (2/4-fold).

What are the excavation performance specifications of the Liebherr A 918 Compact Litronic wheel excavator?

The Liebherr A 918 Compact Litronic has a dredging depth of 5.4 meters, a maximum horizontal reach of 8.7 meters, and features an adjustable boom.

What is the tear-out force of the Liebherr A 918 Compact Litronic?

The Liebherr A 918 Compact Litronic has a tear-out force of 81 kN. No power rating data is available for this machine.

What are the bucket specifications of the Liebherr A 918 Compact Litronic wheel excavator?

The Liebherr A 918 Compact Litronic has a bucket capacity of 0.6 cubic meters and a bucket width of 0.85 meters.

How much is a Liebherr A 918 Compact Litronic Wheel excavator (2011u20132016) worth?

The residual value of the Liebherr A 918 Compact Litronic depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
