MX 18 Hydrema Excavator Specs & Dimensions - (2014 - 2016)

Hydrema is the manufacturer of the wheel excavator model MX 18. Find and download detailed specs and data sheets for this machine …

Hydrema is the manufacturer of the wheel excavator model MX 18. Find and download detailed specs and data sheets for this machine here.

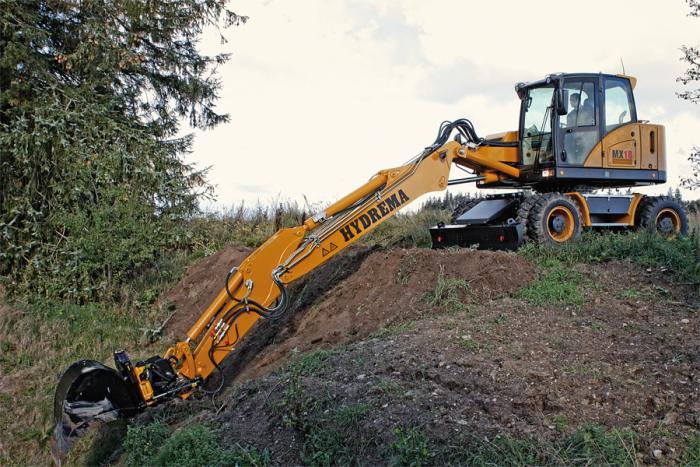

The Hydrema MX 18 is a 19.3t machine with Cummins engine which powers this model with up to 119kW or 159 horse power. The MX 18 is categorised in the biggest machine segment in the wheel excavators category.

The MX 18 is manufactured and distributed with Blade and Aircondition. It does not include Track guidance, Cabin adjustment and Material Handling Excavator. There are more detailed specifications and machine descriptions available in the original Hydrema MX 18 specs data sheet. Specification sheet is available for a free download in French, German and English - providing the machine descriptions and more detailed specs about this particular model.

This model can be acquired for a list price between €209000 and €266000. Production of the MX 18 stopped in 2016. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Hydrema models of this type on LECTURA Specs are the MX 16, MX 14 and MX 18, and 3 other wheel excavators, which currently range from 15.3t up to 19.3t are also available. Want more detailed specifications? Download the latest Hydrema MX 18 specs data sheet on LECTURA Specs today!

Wheel Excavators Hydrema MX 18

Visit Hydrema live at

Technical specs - MX 18 Hydrema

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
19.3 t
Standard tyres
10.00-20
Boom
VA
Outrigger stabilisers
2/4 2/4-fold
Max. Reach horizontal
9.73 m
Dredging depth
5.85 m
Tear-out force
79 kN
Bucket width
3 m
Travel speed
35 km/h
Model series
MX
Engine manuf.
Cummins
Engine type
QSB4.5 IIIb
Engine power
119 kW
Displacement
4.5 l
Revolutions at max torque
1500 rpm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., transport length, transport width, transport height, dipper length, turning radius inside, turning radius outside, dimension lxwxh, max. torque, no. of cylinders...

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., transport length, transport width, transport height, dipper length, turning radius inside, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hydrema MX 18 FAQ

When was the Hydrema MX 18 manufactured?

The Hydrema MX 18 was manufactured from 2014 to 2016.

How much does the Hydrema MX 18 wheel excavator weigh?

The Hydrema MX 18 wheel excavator weighs 19.3 tons.

What is the travel speed of the Hydrema MX 18 wheel excavator?

The Hydrema MX 18 has a travel speed of 35 km/h.

What are the undercarriage specifications of the Hydrema MX 18 wheel excavator?

The Hydrema MX 18 wheel excavator is equipped with standard tyres sized 10.00-20 and features 2/4-fold outrigger stabilisers.

What are the excavation performance specifications of the Hydrema MX 18 wheel excavator?

The Hydrema MX 18 has a dredging depth of 5.85 meters, a maximum horizontal reach of 9.73 meters, and features an adjustable boom.

What is the tear-out force of the Hydrema MX 18 wheel excavator?

The Hydrema MX 18 wheel excavator has a tear-out force of 79 kN.

What is the bucket width of the Hydrema MX 18 wheel excavator?

The Hydrema MX 18 wheel excavator has a bucket width of 3 meters.

How much is a Hydrema MX 18 Wheel excavator (2014u20132016) worth?

The residual value of the Hydrema MX 18 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
