MX 16 Hydrema Excavator Specs & Dimensions - (2014 - 2016)

Manufactured by Hydrema, this is the MX 16 wheel excavator. Find and download detailed specs and data sheets for this machine here…

Manufactured by Hydrema, this is the MX 16 wheel excavator. Find and download detailed specs and data sheets for this machine here.

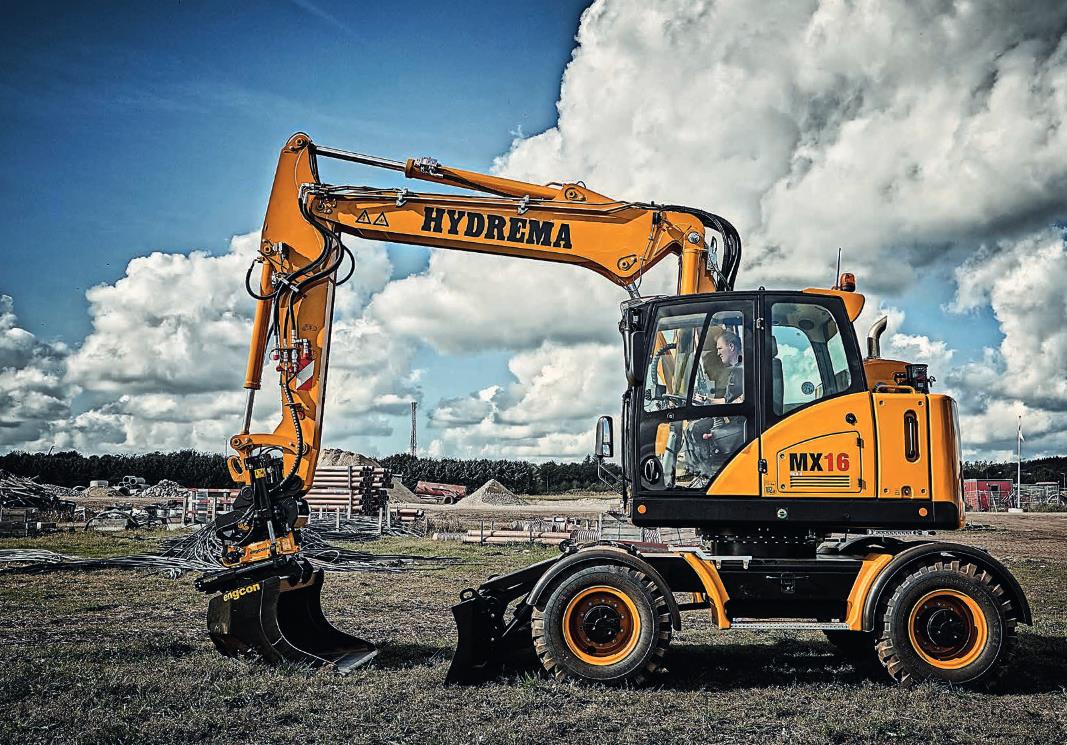

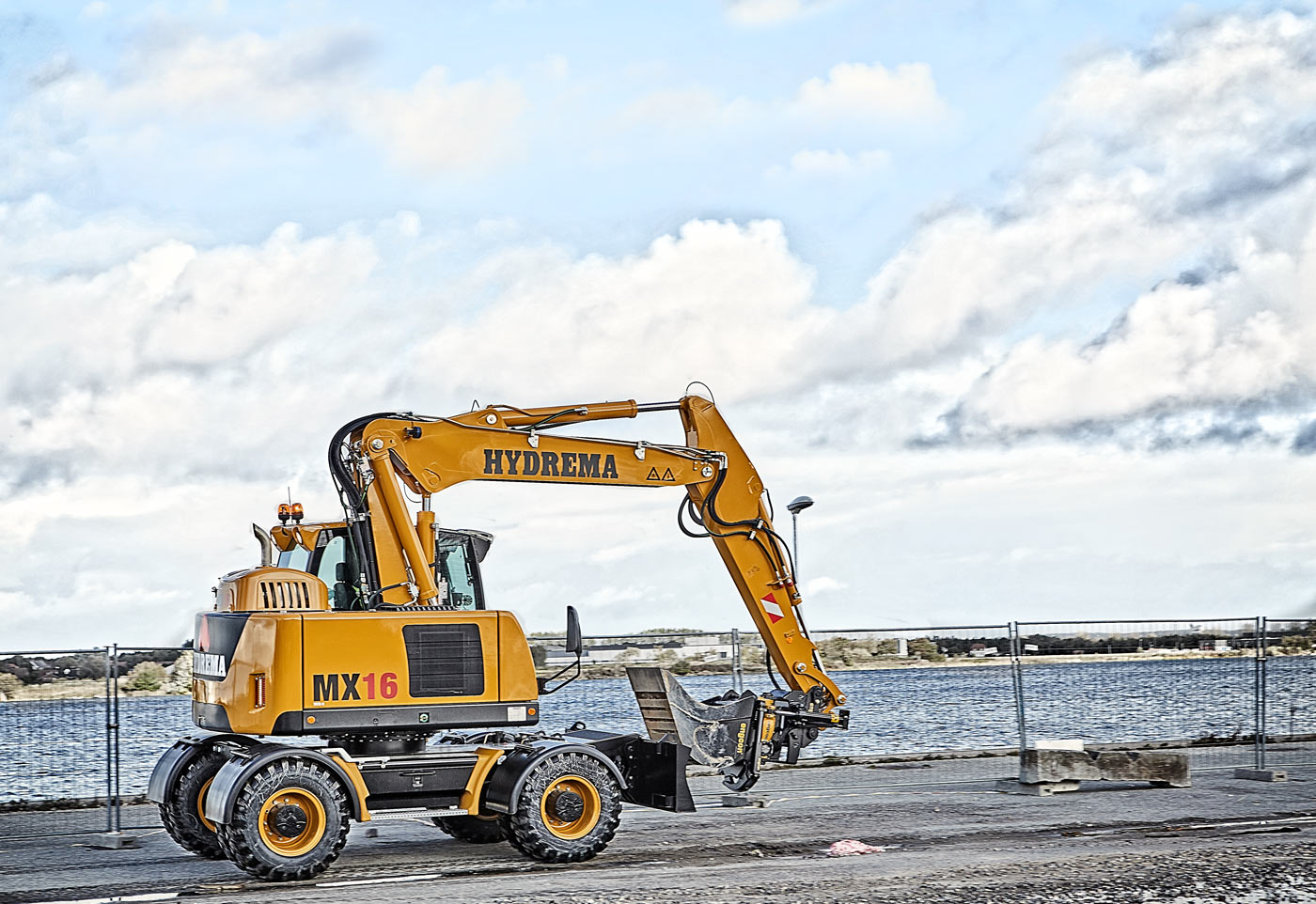

This wheel excavator is built to provide up to 119kW or 159 horse power, delivered from its powerful Cummins engine to the 17.5t MX 16 machine. This Hydrema wheel excavator belongs to the medium sized machine segment in the wheel excavators category.

The Hydrema MX 16 has been equipped and sold with Blade and Aircondition. It does not include Overload alert, Cabin adjustment and Diesel particulate filter. There are more detailed specifications and machine descriptions available in the original Hydrema MX 16 specs data sheet. Specification sheet is available for a free download in English, German and French - providing the machine descriptions and more detailed specs about this particular model.

This model can be acquired for a list price between €197000 and €251000. Production of the MX 16 stopped in 2016. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Hydrema models of this type on LECTURA Specs are the MX 14, MX 16 and MX 18, and 3 other wheel excavators, which currently range from 15.3t up to 19.3t are also available. Want more detailed specifications? Download the latest Hydrema MX 16 specs data sheet on LECTURA Specs today!

Wheel Excavators Hydrema MX 16
Wheel Excavators Hydrema MX 16
Wheel Excavators Hydrema MX 16
Wheel Excavators Hydrema MX 16
Wheel Excavators Hydrema MX 16
Wheel Excavators Hydrema MX 16

Visit Hydrema live at

Technical specs - MX 16 Hydrema

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.5 t
Standard tyres
16.00-20
Boom
VA
Outrigger stabilisers
2/4 2/4-fold
Max. Reach horizontal
9.16 m
Dredging depth
5.28 m
Tear-out force
79 kN
Bucket width
3 m
Travel speed
35 km/h
Model series
MX
Engine manuf.
Cummins
Engine type
QSB4.5 IIIb
Engine power
119 kW
Displacement
4.5 l
Revolutions at max torque
1500 rpm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., transport length, transport width, transport height, dipper length, turning radius inside, turning radius outside, dimension lxwxh, max. torque, no. of cylinders...

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., transport length, transport width, transport height, dipper length, turning radius inside, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of articulated booms, total number of dippers - articulated, dipper length - shortest articulated, dipper length - longest articulated, dipper length - standard articulated, emission rating, engine manufacturer, engine model, engine output - net, transmission type, number of tyres - standard, overall width, machine width - maximum, tailswing radius, standard dipper length, longest dipper length, maximum dig height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, max bucket breakout, artic boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hydrema MX 16 FAQ

When was the Hydrema MX 16 manufactured?

The Hydrema MX 16 was manufactured from 2014 to 2016.

How much does the Hydrema MX 16 weigh?

The Hydrema MX 16 weighs 17.5 tons.

What is the travel speed of the Hydrema MX 16 wheel excavator?

The Hydrema MX 16 has a travel speed of 35 km/h.

What are the undercarriage specifications of the Hydrema MX 16 wheel excavator?

The Hydrema MX 16 wheel excavator is equipped with standard 16.00-20 tyres and features 2/4-fold outrigger stabilisers.

What are the excavation performance specifications of the Hydrema MX 16 wheel excavator?

The Hydrema MX 16 wheel excavator has a dredging depth of 5.28 meters, a maximum horizontal reach of 9.16 meters, and features an adjustable boom.

What is the tear-out force of the Hydrema MX 16 wheel excavator?

The Hydrema MX 16 has a tear-out force of 79 kN.

What is the bucket width of the Hydrema MX 16 wheel excavator?

The Hydrema MX 16 wheel excavator has a bucket width of 3 meters.

How much is a Hydrema MX 16 Wheel excavator (2014u20132016) worth?

The residual value of the Hydrema MX 16 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
