M 1620 C2 Hydrema Excavator Specs & Dimensions - (2008 - 2014)

Manufactured by Hydrema, this is the M 1620 C2 wheel excavator. Find and download detailed specs and data sheets for this machine …

Manufactured by Hydrema, this is the M 1620 C2 wheel excavator. Find and download detailed specs and data sheets for this machine here.

This wheel excavator is built to provide up to 96kW or 128 horse power, delivered from its powerful Perkins engine to the 16.9t M 1620 C2 machine. This Hydrema wheel excavator belongs to the medium sized machine segment in the wheel excavators category. The bucket capacity of M 1620 C2 is 0,9m³, which is above average for this type of machine.

The Hydrema M 1620 C2 has been equipped and sold with Blade, Cabin adjustment and Aircondition. It has been sold without air Quick hitch hydr., Overload alert and Material Handling Excavator as of 2014. There are more detailed specifications and machine descriptions available in the original Hydrema M 1620 C2 specs data sheet. Available in French, German and English, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.

The production stopped in 2014, where this M 1620 C2 was available at a new list price between €159000 and €202000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Hydrema models of this type on LECTURA Specs are the MX 16, MX 14 and MX 18, and 3 other wheel excavators, which currently range from 15.3t up to 19.3t are also available. Want more detailed specifications? Download the latest Hydrema M 1620 C2 specs data sheet on LECTURA Specs today!

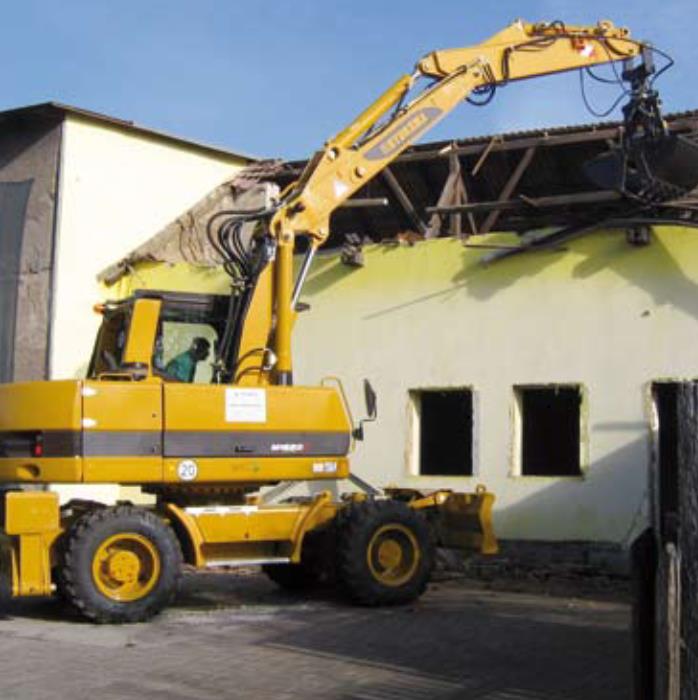

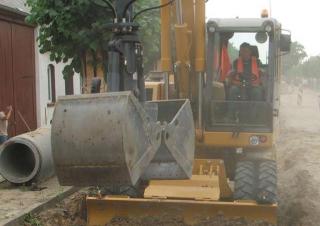

Wheel Excavators Hydrema M 1620 C2
Wheel Excavators Hydrema M 1620 C2
Wheel Excavators Hydrema M 1620 C2
Wheel Excavators Hydrema M 1620 C2

Visit Hydrema live at

Technical specs - M 1620 C2 Hydrema

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.9 t
Standard tyres
10.00-20
Bucket capacity
0.9 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Model series
2
Engine manuf.
Perkins
Engine type
1104D-44TA
Engine power
96 kW

More technical details, like: bucket capacity min., bucket capacity max., transport length, transport width, transport height, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside...

More technical details, like: bucket capacity min., bucket capacity max., transport length, transport width, transport height, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of mono booms, total number of dippers - mono, number of articulated booms, emission rating, engine manufacturer, engine model, rated speed, transmission type, number of tyres - standard, tyre size - standard, overall width, wheelbase, tailswing radius, cab height, overall width - stabilisers down, standard dipper length, ground level reach - mono boom, dig depth - mono boom, dozer blade - width, slew speed, max bucket breakout, mono boom, number of main pumps, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Track guidance
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hydrema M 1620 C2 FAQ

When was the Hydrema M 1620 C2 manufactured?

The Hydrema M 1620 C2 was manufactured from 2008 to 2014.

How much does the Hydrema M 1620 C2 weigh?

The Hydrema M 1620 C2 weighs 16.9 tons.

What are the undercarriage specifications of the Hydrema M 1620 C2 wheel excavator?

The Hydrema M 1620 C2 is equipped with 10.00-20 standard tyres and has 2 outrigger stabilisers.

What type of boom does the Hydrema M 1620 C2 use for excavation?

The Hydrema M 1620 C2 uses an adjustable boom for excavation.

What is the bucket capacity of the Hydrema M 1620 C2 wheel excavator?

The Hydrema M 1620 C2 wheel excavator has a bucket capacity of 0.9 cubic meters.

How much is a Hydrema M 1620 C2 Wheel excavator (2008u20132014) worth?

The residual value of the Hydrema M 1620 C2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
