B95W MB Yanmar Excavator Specs & Dimensions - (2021 - 2026)

Weight: 9.1t – Standard tyres: 8.25-20 14 PR Zwillingsbereifung – Boom: MB – Transport length: 7.63m – Transport width: 2.46m – Tr…

Weight: 9.1t – Standard tyres: 8.25-20 14 PR Zwillingsbereifung – Boom: MB – Transport length: 7.63m – Transport width: 2.46m – Transport height: 2.9m

Check out detailed dimensions, specifications, information and technical data for Yanmar B95W MB excavator manufactured between 2021 - 2026. Get more in-depth insight with Yanmar B95W MB digger specifications. See information, like: Weight: 9.1t – Standard tyres: 8.25-20 14 PR Zwillingsbereifung – Boom: MB – Transport length: 7.63m – Transport width: 2.46m – Transport height: 2.9m and more.

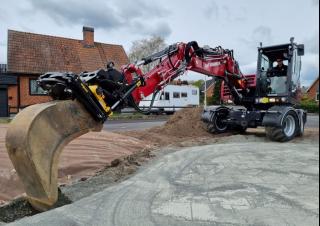

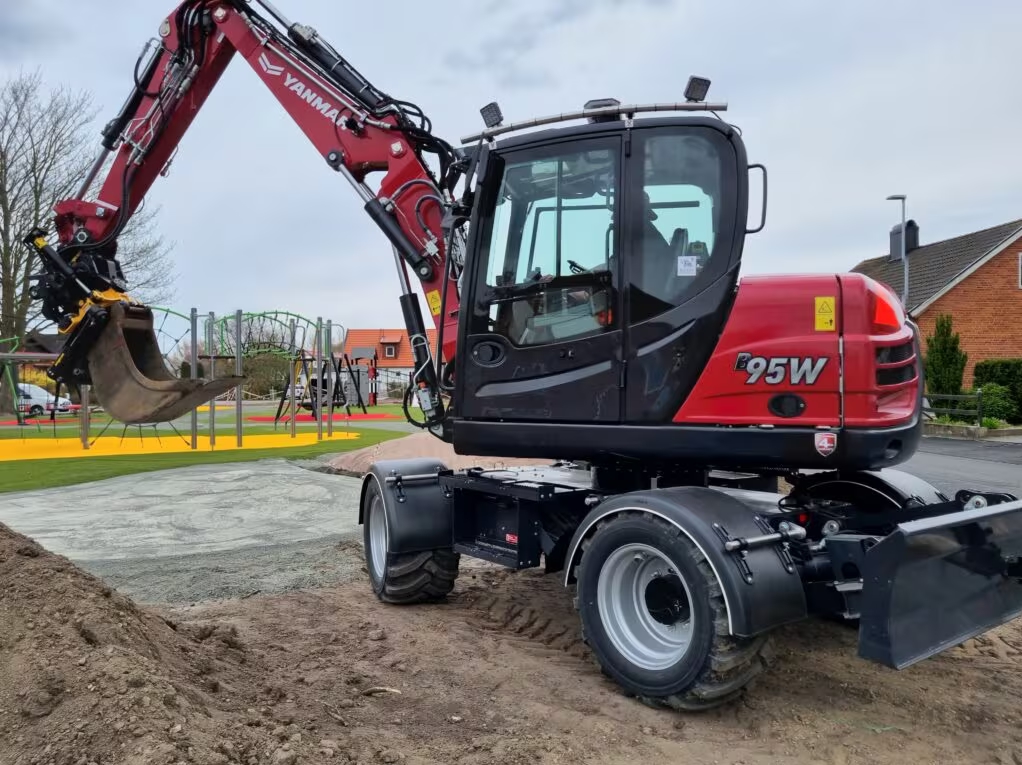

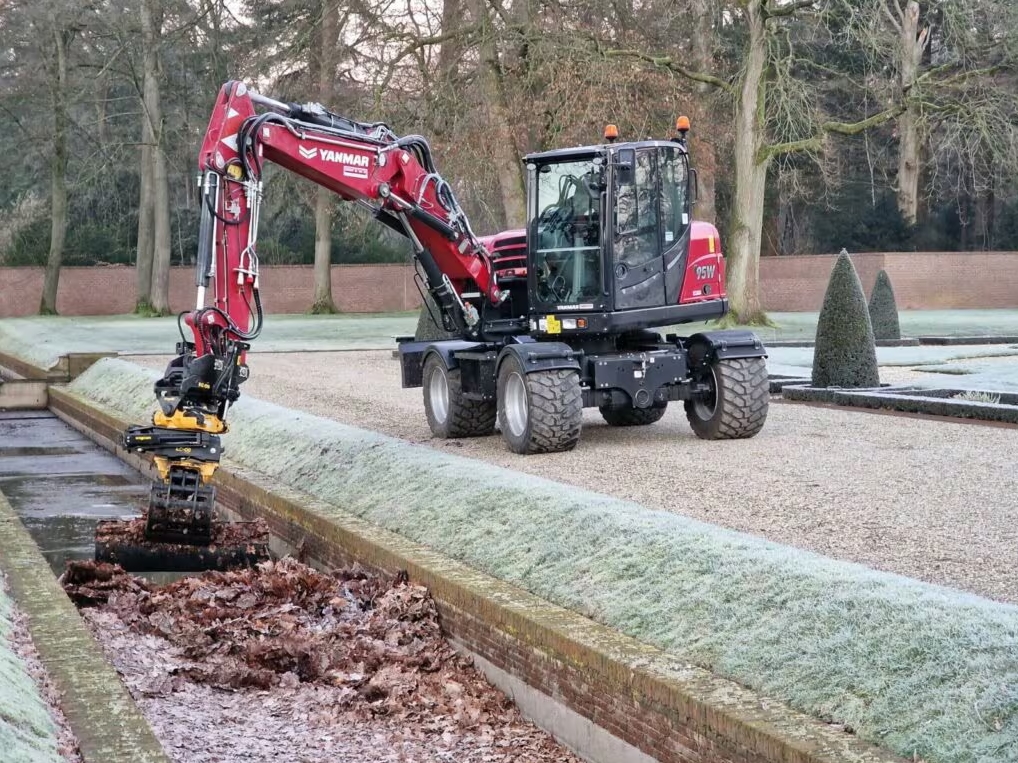

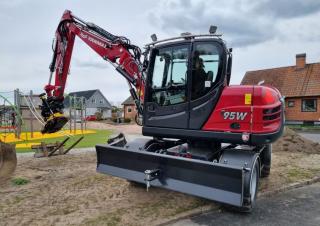

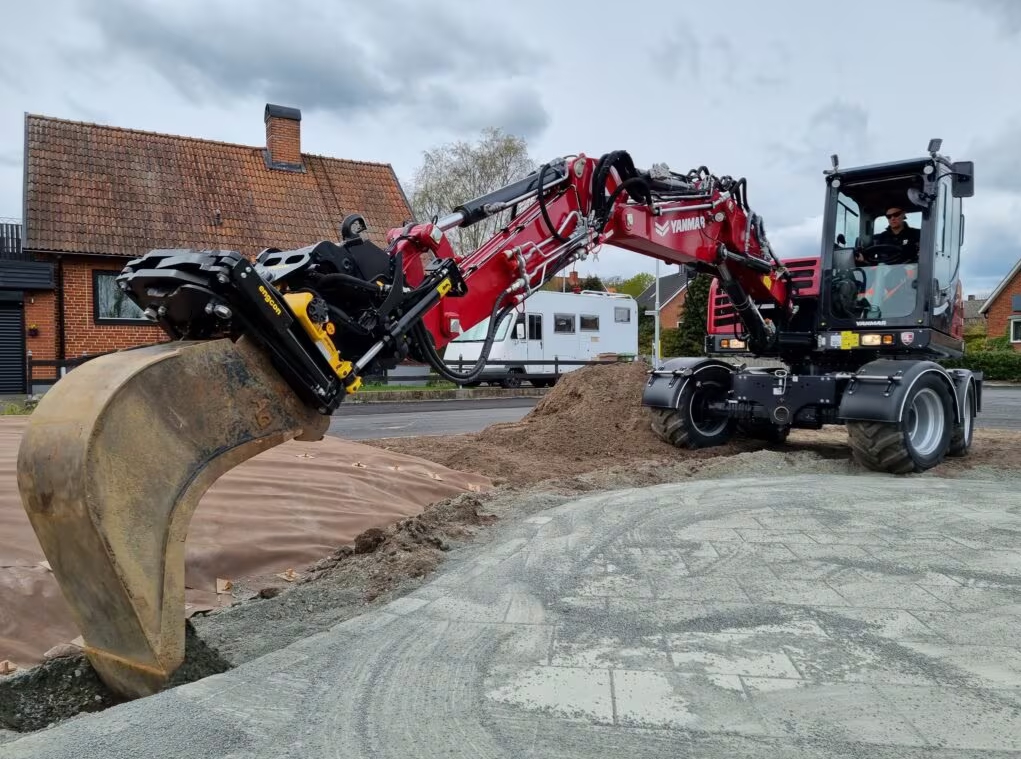

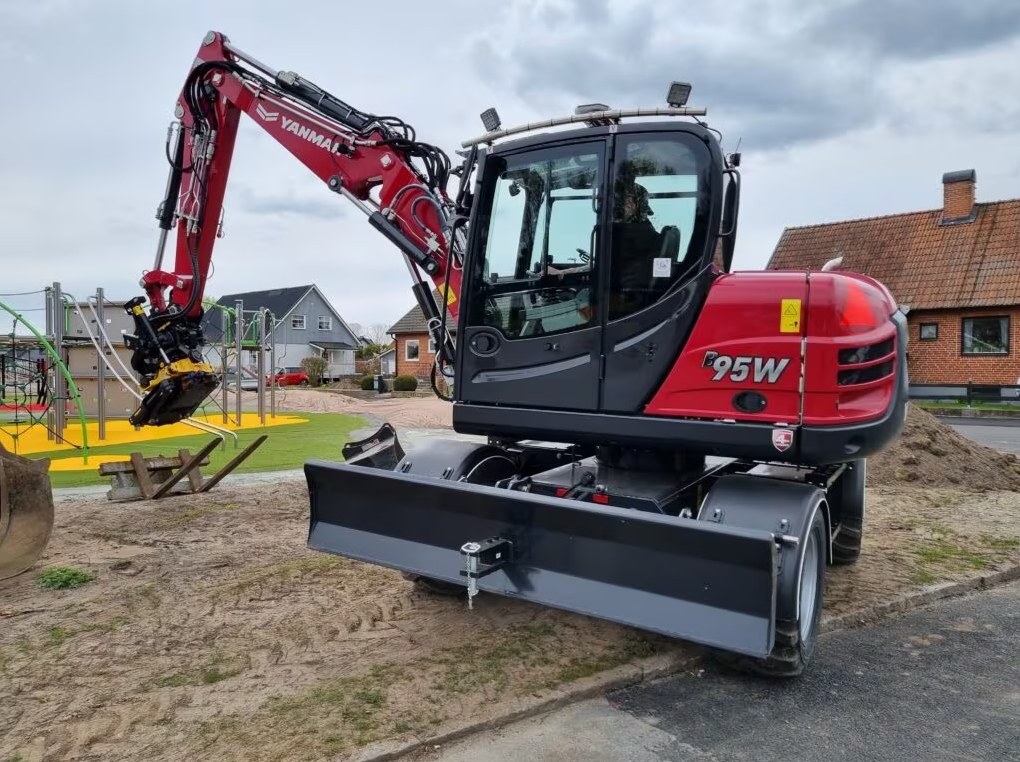

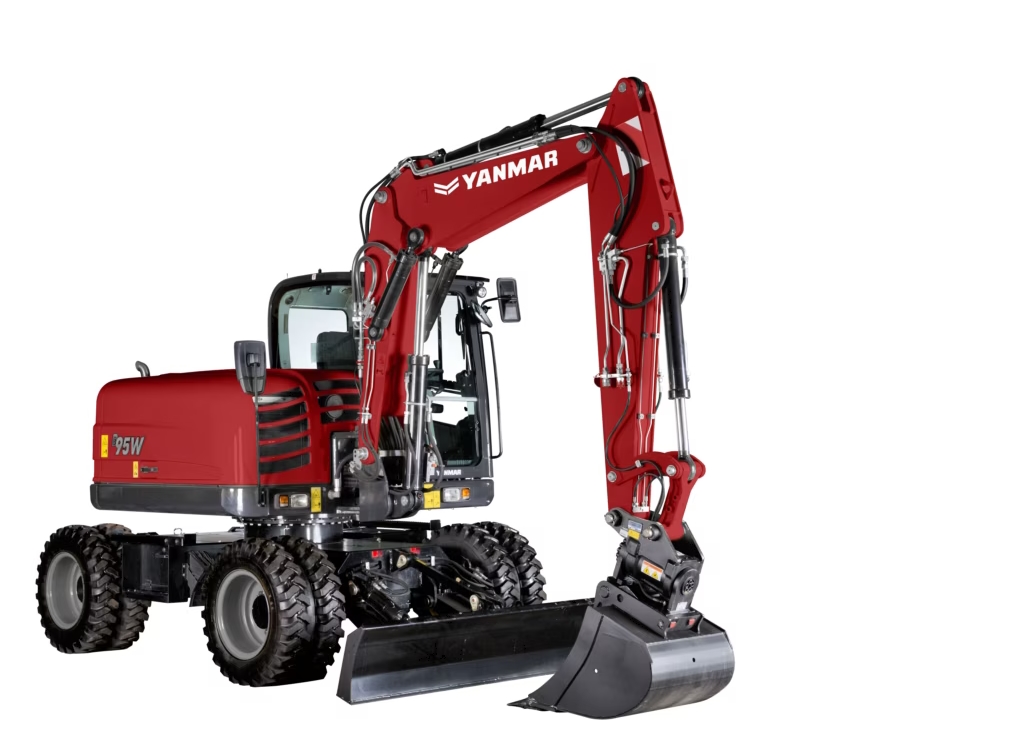

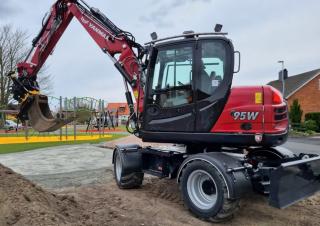

Wheel Excavators Yanmar B95W MB
Wheel Excavators Yanmar B95W MB
Wheel Excavators Yanmar B95W MB
Wheel Excavators Yanmar B95W MB
Wheel Excavators Yanmar B95W MB
Wheel Excavators Yanmar B95W MB
Wheel Excavators Yanmar B95W MB
Wheel Excavators Yanmar B95W MB
Wheel Excavators Yanmar B95W MB
Wheel Excavators Yanmar B95W MB

Technical specs - B95W MB Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.1 t
Standard tyres
8.25-20 14 PR Zwillingsbereifung
Boom
MB
Transport length
7.63 m
Transport width
2.46 m
Transport height
2.9 m
Max. Reach horizontal
7.82 m
Dredging depth
4.09 m
Tear-out force
42.6 kN
Travel speed
36 km/h
Model series
B
Engine manuf.
Deutz
Engine type
TCD3.6 L4
Engine power
74.4 kW
Displacement
3.6 l
Revolutions at max torque
2000 rpm
Max. torque
410/1600 Nm
No. of cylinders
4
Emission level
EU V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., outrigger stabilisers, bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Yanmar B95W MB FAQ

When was the Yanmar B95W MB manufactured?

The Yanmar B95W MB was first produced in 2024.

How much does the Yanmar B95W MB wheel excavator weigh?

The Yanmar B95W MB wheel excavator weighs 9.1 tons.

What are the transport dimensions of the Yanmar B95W MB wheel excavator?

The Yanmar B95W MB has a transport length of 7.63 meters, a transport width of 2.46 meters, and a transport height of 2.9 meters.

What is the travel speed of the Yanmar B95W MB wheel excavator?

The Yanmar B95W MB has a travel speed of 36 km/h.

What are the standard tyres used on the undercarriage of the Yanmar B95W MB wheel excavator?

The Yanmar B95W MB wheel excavator uses 8.25-20 14 PR Zwillingsbereifung as its standard tyres on the undercarriage.

What are the excavation performance specifications of the Yanmar B95W MB wheel excavator?

The Yanmar B95W MB wheel excavator has a dredging depth of 4.09 meters, a maximum horizontal reach of 7.82 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Yanmar B95W MB wheel excavator?

The Yanmar B95W MB wheel excavator has a tear-out force of 42.6 kN.

How much is a Yanmar B95W MB Wheel excavator (2024u20132025) worth?

The residual value of the Yanmar B95W MB depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
