B 55 W 8-1 Yanmar Excavator Specs & Dimensions - (2003 - 2011)

Yanmar is the manufacturer of the mini excavator model B 55 W 8-1. Find and download detailed specs and data sheets for this machi…

Yanmar is the manufacturer of the mini excavator model B 55 W 8-1. Find and download detailed specs and data sheets for this machine here.

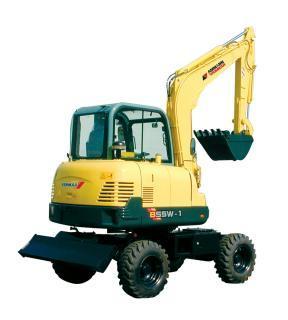

The Yanmar B 55 W 8-1 is a 5.87t machine with Yanmar engine which powers this model with up to 39kW or 52 horse power. The B 55 W 8-1 is categorised in the biggest machine segment in the mini excavators category. The B 55 W 8-1’s size is 2.27m x 6.19m x 2.86m.

The Yanmar B 55 W 8-1 has been equipped and sold with Blade and Aircondition. It does not include Track adaption, Rubber track and Quick hitch hydr.. There are more detailed specifications and machine descriptions available in the original Yanmar B 55 W 8-1 specs data sheet.

The production stopped in 2011, where this B 55 W 8-1 was available at a new list price between €65000 and €82000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Yanmar models of this type on LECTURA Specs are the VIO 10-2 A, SV 26 CR and SV 18 CR, and 24 other mini excavators, which currently range from 0.6t up to 5.5t are also available. Want more detailed specifications? Download the latest Yanmar B 55 W 8-1 specs data sheet on LECTURA Specs today!

Wheel Excavators Yanmar B 55 W 8-1

Technical specs - B 55 W 8-1 Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.87 t
Transport length
6.19 m
Transport width
2.27 m
Transport height
2.86 m
Max. Reach horizontal
4.303 m
Dredging depth
3.405 m
Model series
B
Engine manuf.
Yanmar
Engine type
4TNV94L
Engine power
39 kW
Displacement
3.054 l
Revolutions at max torque
2400 rpm

More technical details, like: standard tyres, bucket capacity, bucket capacity min., bucket capacity max., boom, outrigger stabilisers, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed...

More technical details, like: standard tyres, bucket capacity, bucket capacity min., bucket capacity max., boom, outrigger stabilisers, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of mono booms, total number of dippers - mono, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, overall width, machine width - maximum, wheelbase, tailswing radius, cab height, ground clearance, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, dozer blade - width, fuel tank, slew speed, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Yanmar B 55 W 8-1 FAQ

When was the Yanmar B 55 W 8-1 manufactured?

The Yanmar B 55 W 8-1 was manufactured from 2003 to 2011.

How much does the Yanmar B 55 W 8-1 weigh?

The Yanmar B 55 W 8-1 weighs 5.87 tons.

What are the transport dimensions of the Yanmar B 55 W 8-1 wheel excavator?

The Yanmar B 55 W 8-1 has a transport length of 6.19 meters, a transport width of 2.27 meters, and a transport height of 2.86 meters.

What are the excavation performance specifications of the Yanmar B 55 W 8-1 wheel excavator?

The Yanmar B 55 W 8-1 has a dredging depth of 3.405 meters and a maximum horizontal reach of 4.303 meters.
