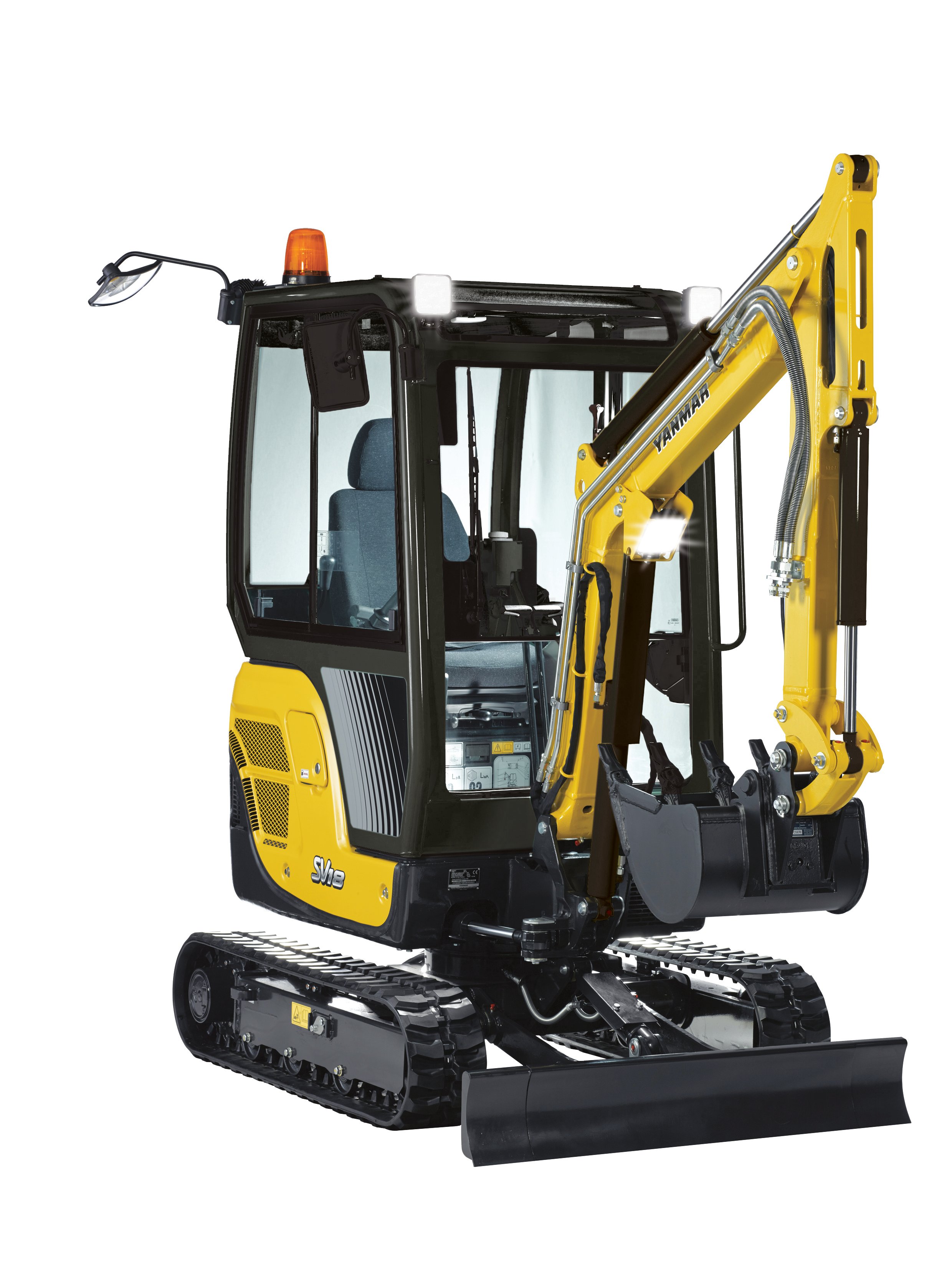

    Yanmar SV 18 CR excavator specs (2014 - 2021)

    Rate this machine now!

    Yanmar is the manufacturer of the mini excavator model SV 18 CR. Find and download detailed specs and data sheets for this machine... Read more

    Yanmar is the manufacturer of the mini excavator model SV 18 CR. Find and download detailed specs and data sheets for this machine here.

    This mini excavator is built to provide up to 9.5kW or 12 horse power, delivered from its powerful Yanmar engine to the 1.84t SV 18 CR machine. The Yanmar SV 18 CR can be grouped in the medium sized machine segment in the mini excavators category. The SV 18 CR’s size is 0.98m x 3.66m x 2.24m.

    The SV 18 CR is manufactured and distributed with Rubber track. Track adaption, Aircondition and Quick hitch hydr. Are not provided on this model as of 2017. There are more detailed specifications and machine descriptions available in the original Yanmar SV 18 CR specs data sheet.

    This model can be acquired for a list price between €29000 and €37000. Production of the SV 18 CR continues in 2017. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

    The most commonly viewed Yanmar models of this type on LECTURA Specs are the SV 26 CR, VIO 10-2 A and VIO 33 UCR, and 23 other mini excavators, which currently range from 0.6t up to 5.5t are also available. Ranked in the LECTURA index at #53, this SV 18 CR mini excavator has models that date from 2014 to 2017. Currently, 23 models of the SV 18 CR mini excavator exist, at an average sale value of €21800 at 1 years of age. Want more detailed specifications? Download the latest Yanmar SV 18 CR specs data sheet on LECTURA Specs today!


    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 1.84 t
    • Transport length 3.66 m
    • Transport width 0.98 m
    • Transport height 2.24 m
    • Track width 230 mm
    • Driver protection Kb
    • Max. Reach horizontal 2.74 m
    • Dredging depth 2.42 m
    • Tear-out force 15.2 kN
    • Engine manuf. Yanmar
    • Engine type 3TNV70VBV A2
    • Engine power 9.5 kW
    • Displacement 0.85 l
    • Max. torque 51.4 Nm

    More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, revolutions at max torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

    Basic model with standard bucket

    Special equipment

    • Track adjustment
    • Rubber track
    • Blade
    • Aircondition
    • Quick hitch hydr.
    • Quick hitch mech.

    Carbon footprint calculator for Mini Excavators

    See the ERA equipment CO2 Calculator to track the carbon emissions per hour of use of the Yanmar SV 18 CR or alternative Mini Excavators.

    The carbon footprint analysis can be carried out for different fuel consumption scenarios or other variables.

    or go directly to the ERA Equipment CO2 Calculator to find out how to reduce your carbon footprint.

    service provided by ERA

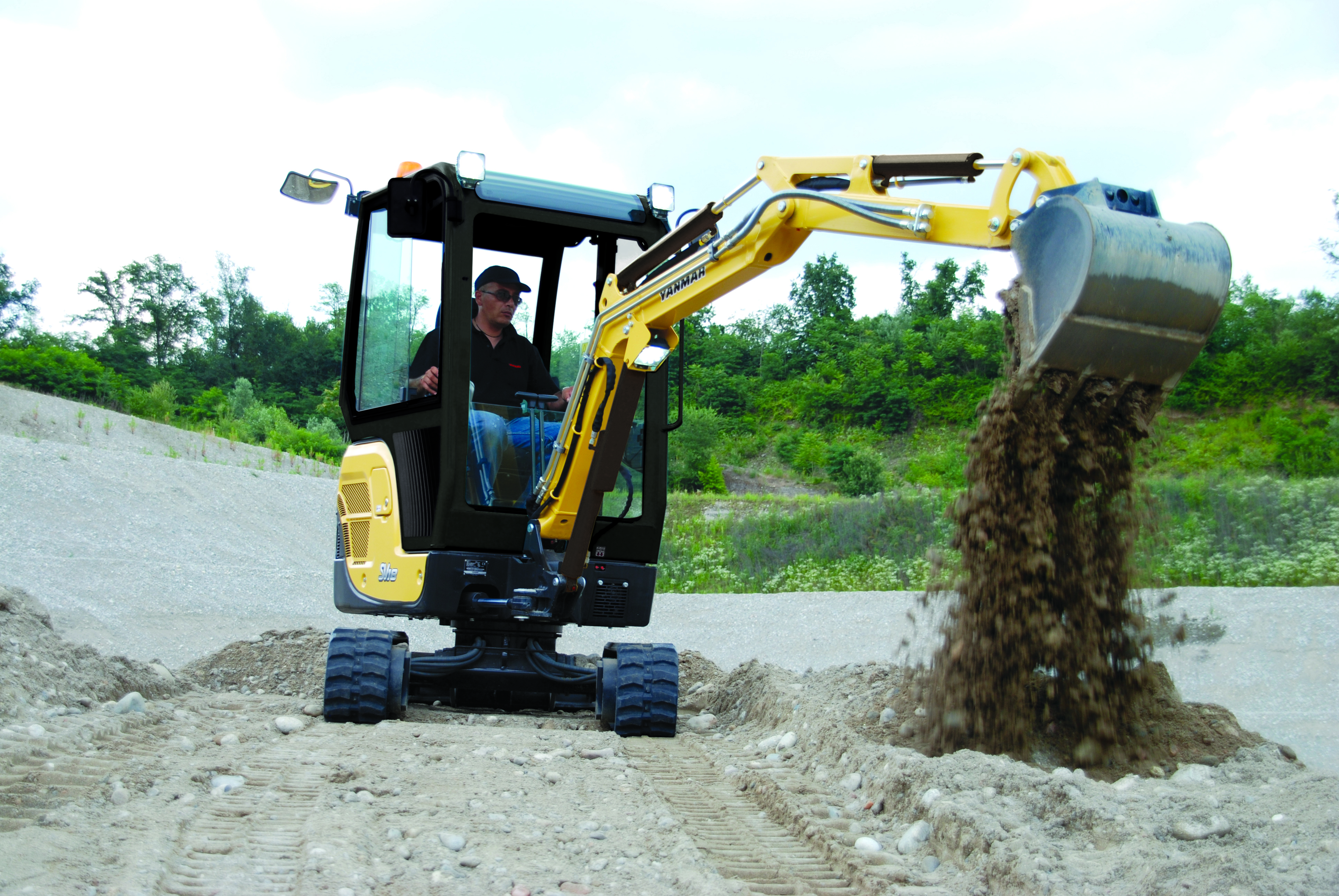

    Yanmar SV 18 CR overview

    • Yanmar SV 18 CR features overview

      design and performance of components for heavy-duty jobsites and a long service life.
      The SV18 cab interior architecture has been studied to improve operator position and facilitate its work, particularly on the long and demanding construction sites.
      Based on our unique experience and know-how, Yanmar technology ensures excellent performance with environmental considerations. The optimal combination of the SV18 excavation strengths and its work cycles ensure exceptional productivity.
      The SV18 perfectly meets the reputation for quality and durability of Yanmar machines. Excellent accessibility to components and speed of maintenance and cleaning operations enable an excellent level of on-site availability.
    • Engine / Driveline and transmission

      Designed to combine high power and cleaner emissions, the YANMAR TNV engine meets European Commission (EC) emission standards with its sophisticated injection system.
      3TNV70-VBVA2 Yanmar Dieseling Meets EN Standards Indirect Injection • Water Separator • LUDV Hydraulic Circuit: fl ow sharing ■ 1 Auxiliary circuit with proportional control• 2nd speed ● Hydraulic oil indicator · 1 LED light integrated into the boom.
      Handrails Attaching lever Proven seat belt actuating hammer for evacuation - 3 mirrorsFlects Extendable undercarriageThese are 4 anchor points (2 on the undercarriage, 2 on the blade)The Blade Cylinder delivers hose in two partsExclusive protection of cylinders (arm, boom, blade)Hoses are protected by abrasion resistant and projection resistant sleeves.Cational treatment of steel parts... Lockable engine hood and drop door of fuel tank The Antidrop system for the fuel tank's trap door anti-drop system.
    • Hydraulics

      Ideally located, the second gear control knob (located on the blade lever) and the control levers offer exceptional movement precision. A proportional control auxiliary line allows for perfect mastery of accessories.
      The SV18 hydraulic circuit features proportional distribution of flow rates. Variable flow pump and load sensing closed center circuit guarantee precision, flexibility, performance and perfect simultaneity of movements. This system allows the operator to perform all movements with an excellent power, regardless of flow or load.
      Yanmar gives you the accessories that meet your needs and comply with safety standards applicable in your country: mechanical quick hitch, hydraulic quick hitch, digging bucket, swing shovel, backhoe bucket, hydraulic hammer...
    • Tyres / Tracks

      + Structure of the chassis and durable steel covers provide foolproof resistance.
      + Large counterweight protects against possible shocks and friction against the walls. + Hose guard with abrasion resistant sleeves. Routing on top of the boom and to the right side of the machine to avoid risk of twisting and limiting machine downtime. + Formstringers prevent accumulation of ground, reducing internal track wear.

      The rear and side covers, panel under the seat and removable floor provide direct access to service points reducing maintenance time and costs. The blade cylinder flexible is made from two parts for quick replacement in case of perforation.
      LCD interface Heatable Adjustable and leching seat with fabric covers and headrests Customizable wrist support pointFitting screen in 2 parts (retractable upper part)Version double sliding right side windowWidth upper front sectionDisc washersWashing machineAutomatic ceiling light-up lights
      Special paint finish • Quick couplers• Bio oil• 2 LED head lights on the front of machine• 1 LED rear light + fl ashing LED light.
    • Dimensions and weight

      Operating weight (canopy / cabin)1835 / 1975 kg
      Digging force (arm)74 kN"
      Digging force (bucket)152 kN"
      AOverall length3660 mmH Overall blade width980 – 1320 ** mm
      A’Overall length with blade at the back3775 mmI Overall blade height230 mm
      BOverall height2215 – 2280 * mmJ Blade distance1095 mm
      COverall width980 – 1320 ** mmK Max. lifting height above the ground240 mm
      DLength of track on ground1180 mmL Max. lowering depth from the ground300 mm
      EUndercarriage length1560 mmM Minimum ground clearance160 mm
      FLane750 – 1090 ** mmN Ground clearance under counterweight410 mm
      GTrack width230 mm
      Operating weight (rubber tracks)1835 kg03 kg/cm2"1975 kg033 kg/cm2"
      Transport weight (rubber tracks)1760 kg029 kg/cm2"1900 kg032 kg/cm2"
    • Other features

      Easy maintenance structure for quick and easy access to all components. Facilitates daily checks.
      Large comfortable cabin Excellent air circulation
      The SV18 cabin interior is very spacious for maximum freedom of movement. The large legroom allows the operator to work comfortably over long hours. The also very large entrance provides easy cab access and exit. The standard SV18 seat has a comfortable suspension with multiple adjustment options, and is equipped with a headrest to reduce operator stress and fatigue. The SV18 features a heater that can operate in pleasant temperature under extreme weather conditions.
      The SV18 is equipped with a digital interface, which informs the operator in real time about the status of his machine. Perfectly integrated into the right-hand console, the 3.3 screen provides excellent visibility. The interface delivers useful information to the customer through LED lamps or references to important elements such as fuel consumption, fuel gauge, coolant temperature indicator etc. The interface assists the customer during maintenance intervals and for programming such interventions. It also functions as a diagnostic tool in case of malfunction by sending an error code and info symbol to the display.
      The SV18 is equipped with 3 rear and side view mirrors. The operator can control the working area as well as the area around the machine without moving from his seat. To be able to work efficiently and accurately in darkness, the SV18 features a standard LED light positioned in the lower part of the boom where it is protected from shocks. LED technology provides powerful light while reducing energy consumption and increasing battery life. Optionally, one beacon and 3 additional LED lamps can also be added on the cab.
    • Safety

      The use of a ROPS structure for the cab guarantees operator safety in an overstroke. The canopy and cabin also comply with FOPS1 standards (concerning structures protecting against falling objects) and TOPS (tip on protective structure).
      Because you are more effective in a safe environment, operator and employee safety around the machine is one of our priorities.
      Safety valves for lifting anti-theft (button/keypad)
    • Tables

      AMax.35 m"3 m25 m"2 m15 m"Max35 m"3 m25 m"2 m15 m"
      B1- 10pulg-800polly=- 000polly-10|polly-100|plg-800polly-000polly-000polly |-010|play| 110/plg)=100polly= 100polly
      25 m"*280*275--*265*265------*275*270--*265*260------
      2 m*285*285--*265*265*255*245----*285*275--*265*260*255*220----
      15 m"*290*290--*290*290*310*305*360*335--*290*280--*295*280*310*295*360*310--
      1 m*295*295--*325*320*375*365*500*475--*295*295--*325*305*375*350*500*455--
      05 m"*300*305--*350*350*440*430*610*600--*300*295--*350*330*440*410*600*560--C
      0 m*325*325--*370*370*475*465*650*645*855*800*310*310--*365*365*470385*610*600*840*725
      -05 m"*325*325--*375*375*470*490*680*680*920*930*325*315--*350*350*400355*600470*780*685
      -1 m*335*330----*450*450*585*585*825*850*340*330----*440*425*590480*830*915
      -15 m"*335*340------*475*495*665*640*335*345------*495*495*720*775
      Blade on groundBlade above ground
      AMax.35 m"3 m25 m"2 m15 m"Max35 m"3 m25 m"2 m15"m
      B- 10polly= 100polly000polly000polly000polly|000polly-000polly-010|polly|-010 |polly |=-110|polly |=- 10| polly |=- 100)
      3 m*275*280----------*275*270----------
      25 m"*275*275--*265*265------*275*270--*265*260------C
      2 m*285*285--*265*265*255*245----*285*275--*265*260*255*220----
      15 m"*290*290--*290*290*310*305*360*335--*290*280--*295*280*310*295*360*310--
      1 m*295*295--*325*320*375*365*500*475--*295235--*325*305*375*350*500*455--
      05 m"*300*305--*350*350*440*430*610*600--*300235--*350*330*440*410*600*560--
      0 m270*325--*370*370*475*465560*645*855*800265235--*365275*470350550475*840*725
      -05 m"*325*325--325*375405*490550*680*920*930*325255--315280400355540485780685
      -1 m*335*330----*450*450*625*545*825*850*340280----*440350525460*830*915
      -15 m"*335*340------*475*495*665*650*335*345------*495*495*720*775
      Net Power95 kW / 129 HP / 2100 rpm"
      Gross Power99 kW / 135 HP / 2100 rpm"
      Displacement854 cm3
      Maximum torque514 N.m. / 1500 rpm"
      Starter14 kW"
      Battery12 V - 45 Ah
      Alternator12 V - 40 A
      Maximum pressure200 bars
      1 piston pump with variable flow483 l/min"
      Fuel tank245 l"
      Cooling system32 l"
      Engine oil28 l"
      Hydraulic system285 l"
      Hydraulic tank20 l
      Travel speed22 / 41 km/h"
      Rotation speed10 rpm
      Digging force (arm)74 kN"
      Digging force (bucket)152 kN"
      Traction force17 kN
      Grade ability30°
      Noise level (2000/14/CE & 2005/88/CE)91 dB(A) / 79 dB(A)

    Used Yanmar Mini Excavators for sale

    LECTURA gathers current offers from many sources about Mini Excavators.
    Find current offers on trusted classified websites presenting second hand Mini Excavators for sale in many countries.

    Get in touch for more details:

    Mini Excavator Buyers Guide - price ranges of new and used models

    At LECTURA we collect data since 40 years and based on this infromation, we can support sellers with price lists of used mini excavators, such as Yanmar SV 18 CR.

    Check what new and used models of mini excavators you can get in each price range:

    Data provided by

    Compare Yanmar SV 18 CR with similar Mini Excavators

    Press 1 image

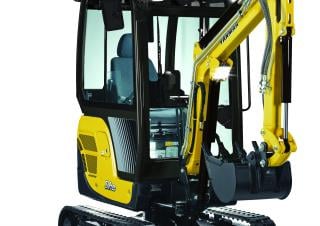

    Yanmar SV 18 CR
