SV40 Yanmar excavator specs & dimensions (2022 - 2026)

Yanmar SV40 is a mini excavator manufactured since 2022, with a weight of 4.32 tons. It features a track width of 350 mm, a transp…

Yanmar SV40 is a mini excavator manufactured since 2022, with a weight of 4.32 tons. It features a track width of 350 mm, a transport length of 4.81 meters, a transport width of 1.74 meters, and a transport height of 2.54 meters. The machine has a tear-out force of 32.1 kN, a dredging depth of 3.607 meters, and a maximum horizontal reach of 5.5 meters. It comes equipped with a blade, quick hitch hydraulic, and rubber tracks.

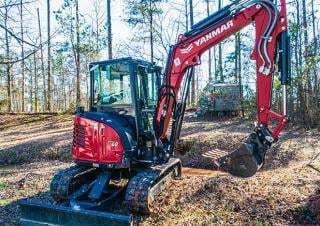

Mini Excavators Yanmar SV40

Technical specs - SV40 Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.32 t
Transport length
4.81 m
Transport width
1.74 m
Transport height
2.54 m
Track width
350 mm
Driver protection
FD
Max. Reach horizontal
5.5 m
Dredging depth
3.607 m
Tear-out force
32.1 kN
Model series
SV
Engine manuf.
Yanmar
Engine type
4TNV88C-PBV1
Engine power
29.1 kW
Revolutions at max torque
2400 rpm
No. of cylinders
4
Emission level
Tier 4 Final

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, displacement, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Yanmar SV40 FAQ

When was the Yanmar SV40 manufactured?

The Yanmar SV40 was first produced in 2022.

How much does the Yanmar SV40 mini excavator weigh?

The Yanmar SV40 mini excavator weighs 4.32 tons.

What are the transport dimensions of the Yanmar SV40 mini excavator?

The Yanmar SV40 has a transport length of 4.81 meters, a transport width of 1.74 meters, and a transport height of 2.54 meters.

What is the track width of the Yanmar SV40 mini excavator?

The Yanmar SV40 mini excavator has a track width of 350 mm.

What are the dredging depth and maximum horizontal reach of the Yanmar SV40 mini excavator?

The Yanmar SV40 mini excavator has a dredging depth of 3.607 meters and a maximum horizontal reach of 5.5 meters.

What is the tear-out force of the Yanmar SV40 mini excavator, given that no power ratings are provided?

The Yanmar SV40 mini excavator has a tear-out force of 32.1 kN. No power ratings are provided in the available data.

What operator safety and support features does the Yanmar SV40 have?

The Yanmar SV40 is equipped with a canopy for driver protection.
