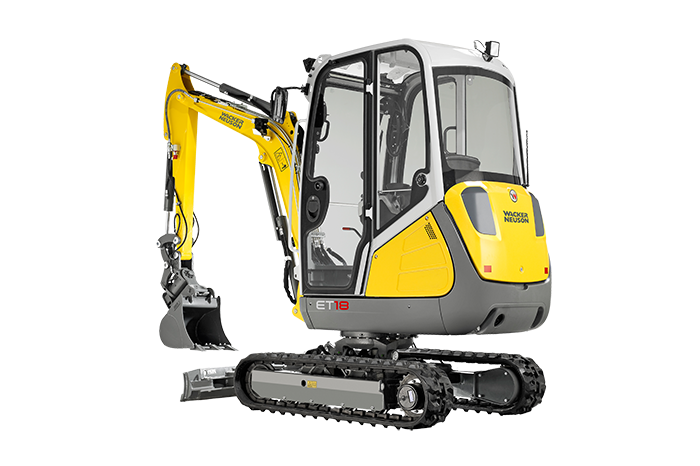

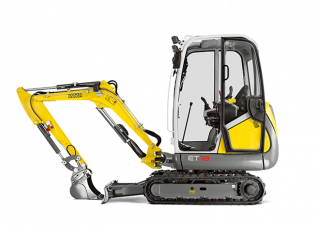

Wacker Neuson ET 18 excavator specs (2012 - 2017)
The ET 18 mini excavator model is manufactured by Wacker-Neuson. Find and download detailed specs and data sheets for this machine... Read more
The ET 18 mini excavator model is manufactured by Wacker-Neuson. Find and download detailed specs and data sheets for this machine here.
Equipped with a powerful Yanmar engine, this ET 18 1.738t machine can provide 13.2kW or 17 horse power for the mini excavator. This Wacker-Neuson mini excavator belongs to the smallest machine segment in the mini excavators category. The ET 18’s size is 0.99m x 3.8m x 2.29m.
The Wacker-Neuson ET 18 has been equipped and sold with Rubber track and Blade. It does not include Aircondition, Quick hitch hydr. And Track adaption. There are more detailed specifications and machine descriptions available in the original Wacker-Neuson ET 18 specs data sheet. Available in Swedish, Russian, Dutch, German, Italian, Spanish, Polish, Turkish, English, French, Czech and Portuguese, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.
The production is still going in 2017, where this ET 18 is available at a new list price between €29000 and €37000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.
At present, 27 other mini excavators, which range from 1t up to 5.8t are produced by Wacker-Neuson. Of these, 3503, 1404 and also 50 Z 3 are the most frequently visited on LECTURA Specs. Having been in production from 2012 to 2017, the ET 18 mini excavator ranks in the LECTURA index at #10. Throughout the production cycle of this ET 18 mini excavator, there have been around 27 models that average a price of €12400 for an age of 4 years Want more detailed specifications? Download the latest Wacker-Neuson ET 18 specs data sheet on LECTURA Specs today!
Technical specs - ET 18 Wacker Neuson
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.
- Weight 1.74 t
- Transport length 3.8 m
- Transport width 0.99 m
- Transport height 2.29 m
- Track width 230 mm
- Driver protection FD
- Max. Reach horizontal 3,8 m
- Dredging depth 2,1 m
- Tear-out force 11,59 kN
- Engine manuf. Yanmar
- Engine type 3TNV76
- Engine power 13.2 kW
- Displacement 1.116 l
- Revolutions at max torque 2200 rpm
- No. of cylinders 3
More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with standard bucket
Special equipment
- Track adjustment
- Rubber track
- Blade
- Aircondition
- Quick hitch hydr.
- Quick hitch mech.
Carbon footprint calculator for Mini Excavators
Use the ERA equipment CO2 Calculator to estimate the CO2 emissions per hour of use of the Wacker Neuson ET 18 or alternative Mini Excavators.
The carbon footprint evaluation can be carried out based on different energy consumption scenarios or other variables.
or visit the ERA Equipment CO2 Calculator to find out how to optimise your CO2 emissions.
service provided by
Download datasheets (PDF)
Wacker Neuson ET 18 overview
-
Dimensions and weight
Duty pump Double variable pump with 2 gear pumps Flow rate max. 73 l/min Operating pressure for working and traction hydraulics 200 bar Operating pressure Slewing gear 125 bar RPM / speed Superstructure 10 rpm Hydraulic oil tank Contents 19 l Travel speed max. 5 3 km/h" Gradeability max. 58 % Chain width 230 mm Ground clearance Standard undercarriage 210 mm -
Tables
Engine / Motor manufacturer Yanmar Engine / Motor type 3TNV76 Engine / Motor Water-cooled 3-cylinder diesel engine Displacement 1.116 cm³ RPM / speed 2.200 rpm Engine performance acc. to ISO 13 4 kW" Battery Voltage 44 Ah Tank capacity 24 l Sound level (LwA) acc. to 2000/14/EC 93 dB(A) Cabin - specified sound pressure level LpA acc. to ISO 6394 77 dB(A) Width 990 mm Height 230 mm Stroke Standard dozer blade above ground 200 mm Stroke Standard dozer blade below ground 320 mm
Buy & Rent
Used Wacker Neuson Mini Excavators for sale
LECTURA gathers current offers from many sources about Mini Excavators.
Find current offers on trusted classified websites presenting second hand Mini Excavators for sale in many countries.
Get in touch for more details:
Mini Excavator Buyers Guide - price ranges of new and used models
At LECTURA we gather information since 40 years and using this data, we can support sellers with pricing lists of used mini excavators, such as Wacker Neuson ET 18.
Check what new and used models of mini excavators you can get in each price range:
Data provided by
Compare Wacker Neuson ET 18 with similar Mini Excavators
.jpg)

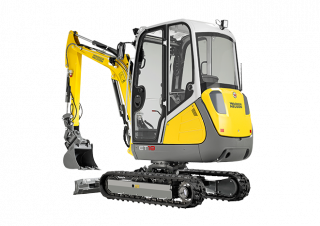

Wacker Neuson ET 18
