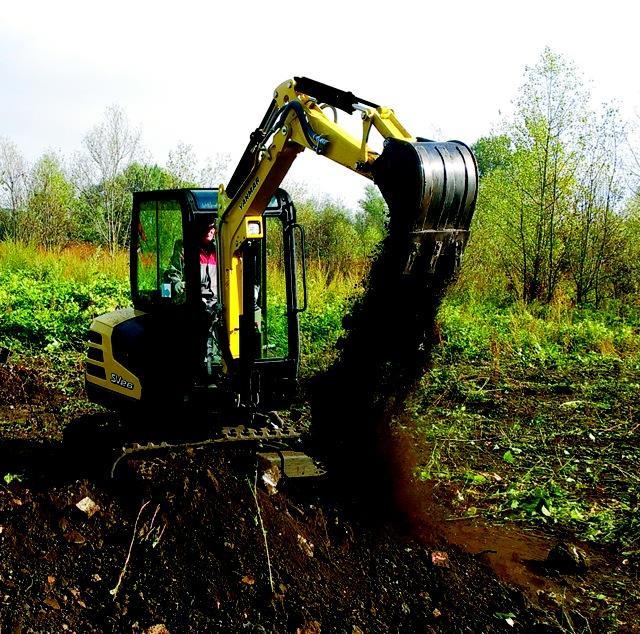

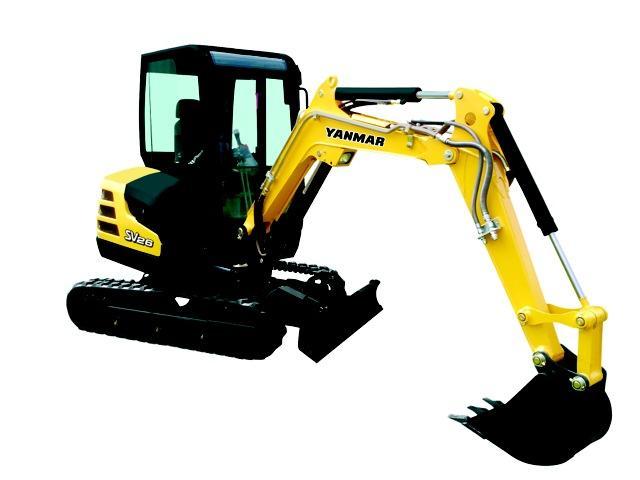

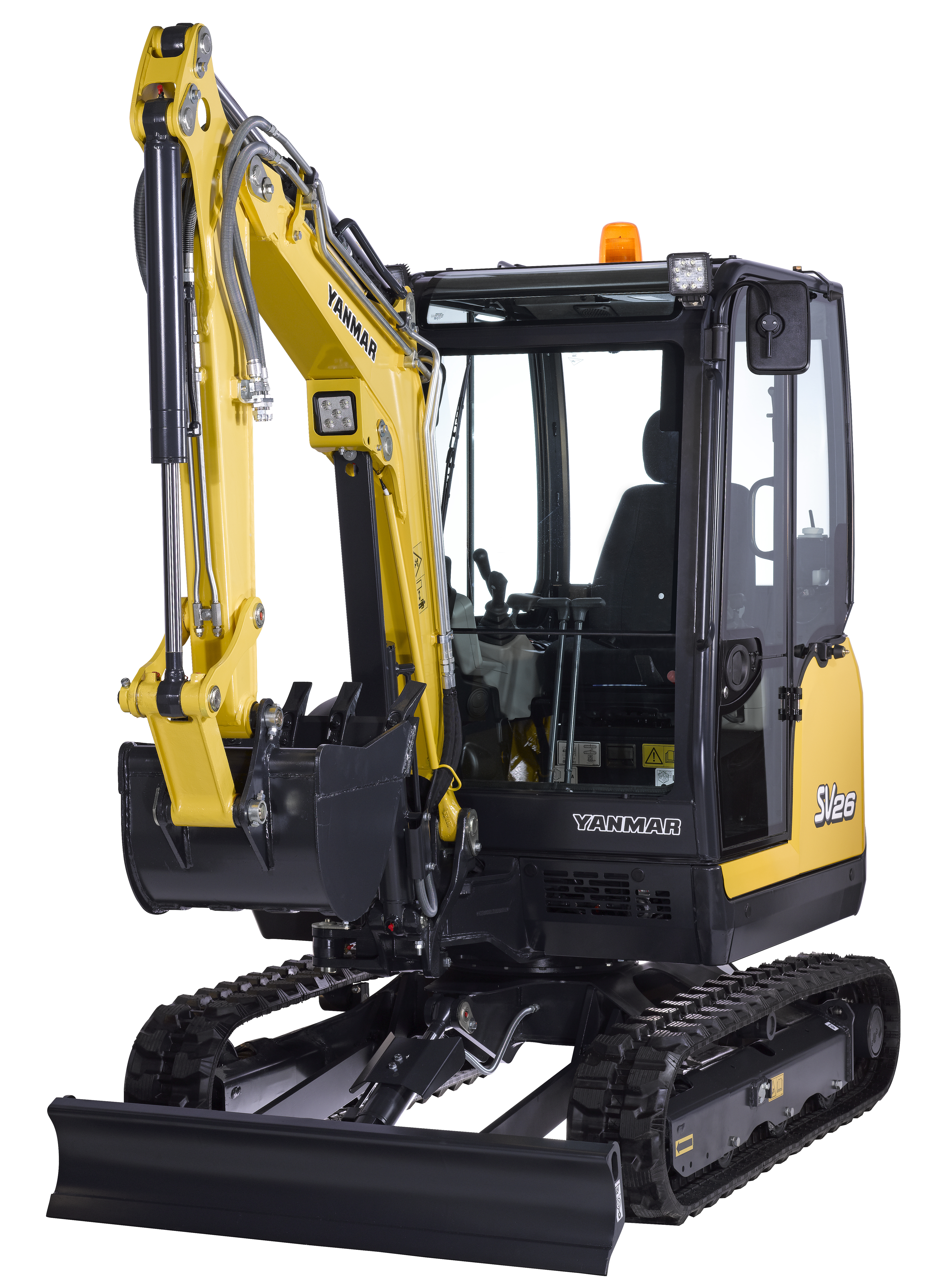

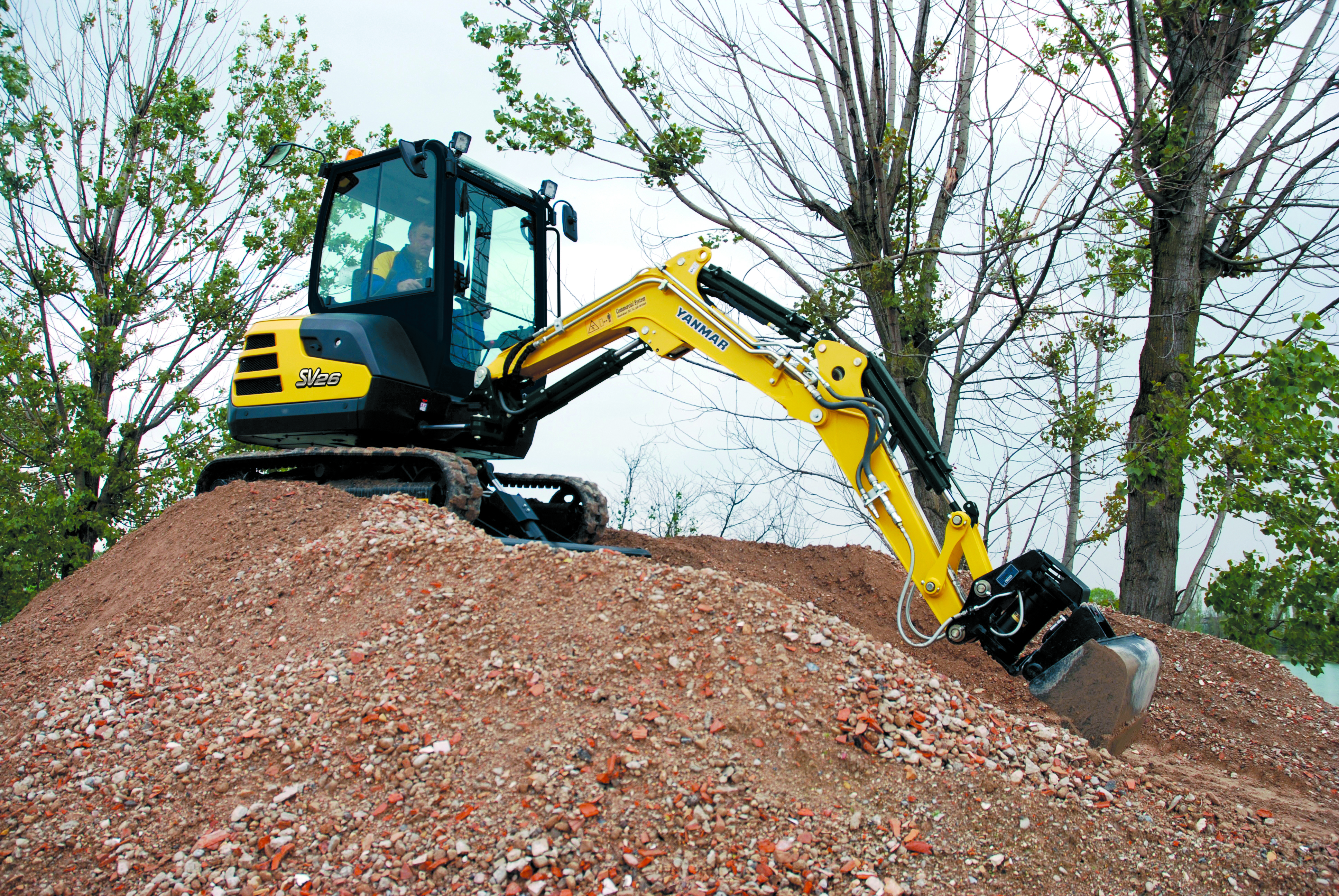

Yanmar SV 26 CR excavator specs (2013 - 2023)
Manufactured by Yanmar, this is the SV 26 CR mini excavator. Find and download detailed specs and data sheets for this machine her... Read more
Manufactured by Yanmar, this is the SV 26 CR mini excavator. Find and download detailed specs and data sheets for this machine here.
Equipped with a powerful Yanmar engine, this SV 26 CR 2.675t machine can provide 17.4kW or 23 horse power for the mini excavator. The SV 26 CR is categorised in the medium sized machine segment in the mini excavators category. The model's dimensions are 4.25m x 1.5m x 2.435m.
Since 2013, this model has included Rubber track. Quick hitch hydr., Quick hitch mech. And Aircondition are not provided on this model as of 2017. There are more detailed specifications and machine descriptions available in the original Yanmar SV 26 CR specs data sheet. Available in English and German, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.
The production is still going in 2017, where this SV 26 CR is available at a new list price between €37000 and €47000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.
Yanmar currently produces 23 other mini excavators, which range from 0.6t up to 5.5t - the most visited on LECTURA Specs are VIO 10-2 A, VIO 33 UCR, SV 18 CR. Ranked in the LECTURA index at #60, this SV 26 CR mini excavator has models that date from 2013 to 2017. Throughout the production cycle of this SV 26 CR mini excavator, there have been around 23 models that average a price of €71300 for an age of 2 years Want more detailed specifications? Download the latest Yanmar SV 26 CR specs data sheet on LECTURA Specs today!
Technical specs - SV 26 CR Yanmar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.
- Weight 2.74 t
- Transport length 4.25 m
- Transport width 1.55 m
- Transport height 2.435 m
- Track width 300 mm
- Driver protection KbR
- Max. Reach horizontal 4.51 m
- Dredging depth 2.995 m
- Tear-out force 14.5 kN
- Engine manuf. Yanmar
- Engine type 3TNV82A-BPBVA
- Engine power 17.6 kW
- Displacement 1.331 l
- Revolutions at max torque 1400 rpm
More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with standard bucket
Special equipment
- Track adjustment
- Rubber track
- Blade
- Aircondition
- Quick hitch hydr.
- Quick hitch mech.
Carbon footprint calculator for Mini Excavators
See the ERA equipment CO2 Calculator to find out the CO2 footprint per hour of use of the Yanmar SV 26 CR or other Mini Excavators.
The emission evaluation can be carried out considering different biofuel scenarios or other variables.
or visit the ERA Equipment CO2 Calculator to find out how to optimise your carbon footprint.
service provided by
Download datasheets (PDF)
Reviews
It's a great all rounder
Yanmar SV 26 CR user fromYanmar SV 26 CR overview
-
Yanmar SV 26 CR features overview
THE IDEAL PARTNER FOR WORK IN CONFINED SPACES
The SV26 features excellent performance in a compact package. It is ideal for urban work (no obligation to block 2 travel tracks) and landscaping. Its low ground pressure provides excellent efficiency on all types of terrain, reducing soil degradation. Overhang: Overall machine width: 1500 mm
Engine - Yanmar water cooled diesel - meets EC standards - Direct Injection Hydraulic System - vipps hydraulic system (vio progressive 3 pump system) - 1 Auxiliary circuit with proportional control - 2nd speed - Hydraulic oil indicator - LCD interface - Cab mounted on viscoelastic rubber blocks - Fabric covered, adjustable and tilt-adjustable seat at the suspension with headrest - Adjustable wrist bracket - Foot rests - Wide travel pedals - Windshield in 2 parts (retractable upper part) - Double sliding right window - Transparent upper front section - Selectors - Disc washer system - Automatic ceiling light - 2 x 12V sockets - Lockable document reservoir - Cup holder Undercarriage - 4 anchor points - Blade cylinder feed hose in two parts Safety - Handrails - Safety lever - Safety belt - Hammer for evacuation - 3 mirrors - Horn lighting - 1 LED light integrated into the various - Fuel blade - Protection of the blade and boom cylinders - Hoses protected by abrasion resistant sleeves. -
Engine / Driveline and transmission
A powerful engine that remains respectful of the environment
The direct injection motor YANMAR TNV is designed to combine high power and cleaner emissions. With its sophisticated injection system, it meets European Commission (EC) emission standards.
Reduced fuel consumption
The SV26 consumes less than 4 litres per hour. This consumption can be further reduced by installing an optional Auto - Idling system, which shuts the engine speed to idle if the machine has not been in use for more than 4 seconds and then automatically accelerated when needed.
Accessibility to service points has been simplified to reduce maintenance time and costs. Rear and side covers, the panel under the seat and removable floor provide direct access to the battery, alternator, auxiliary circuit selector valve and electrical components. The blade cylinder flexible consists of two parts for quick replacement during perforation. Engine oil change frequency is 500 hours to increase timing between scheduled maintenance work. -
Hydraulics
VIPPS® Hydraulic system (3 pump progressive vio system)
The SV26 features a hydraulic circuit with power summation control, equipped with 2 variable flow piston pumps, gear pump and multiple combination directional control valve. Pumps engage automatically depending on the operation being carried out ensuring greater ease of use. On the one hand, cumulative flow of these pumps allows for increasing working speed while also allowing smooth and simultaneous operations during travel time.
Auxiliary hydraulics come standard
A proportional control auxiliary line enables the use of many accessories such as a hammer or auger. The oil flow rate is adapted to the usage of each implement. Thus, the operator has perfect mastery of the accessory. Options such as the 2nd auxiliary line and installation of a potentiometer are available for greater flexibility in application and increased versatility of the machine.
ACCESSORIES
Yanmar gives you the accessories that meet your needs and comply with safety standards applicable in your country: mechanical quick coupler, hydraulic quick coupler, digging bucket, swing bucket, backhoe bucket, hydraulic hammer... -
Tyres / Tracks
DESIGNED TO LAST
The undercarriage structure as well as the durable steel covers provide a foolproof resistance of the chassis. A large counterweight protects against possible shocks and friction against the walls. Hoses are protected with abrasion resistant sleeves. Their guidance at the top of the boom and on the right side of the machine is particularly thought-out to avoid risk of twisting and limiting machine interruption time. The connections of the cylinders to the blade and outriggers are fully protected by steel plates. The cylinders are optionally strengthened by spring steel cover plates. Cataphoresis treatment of the steel parts provides excellent corrosion resistance for paint. Formstringer prevent accumulation of ground and reduce internal track wear. Finally, the operating temperature of the machine has been reduced considerably contributing to extending the service life of the SV26 components. -
Dimensions and weight
A » Overall length 4250 / 4295* mm H » Overall blade width 1500 mm A’ » Overall length with blade at the back 4470 / 4515* mm I » Overall blade height 280 mm B » Overall height 2435 mm J » Blade distance 1380 mm C » Overall width 1500 mm K » Max. blade height above the ground 300 mm D » Length of track on ground 1550 mm L » Max. lowering blade depth 350 mm E » Undercarriage length 2030 mm M » Minimum ground clearance 320 mm F » Lane 1250 mm N » Ground clearance under counterweight 540 mm G » Track width 250 mm A » Max. digging depth - Blade lifted 2595 / 2845* mm H » Boom swinging base to left 45° B » Max. digging depth - Blade lowered 2735 / 2995* mm I » Boom swinging base to right 75° C » Max. digging reach on ground 4400 / 4580* mm J »Arm length 1150 / 1400* mm D » Max. digging reach 4510 / 4695* mm K » Minimum front swing radius 1900 / 1960* mm E » Max vertical wall 2245 / 2455* mm L » Minimum front swing radius with boom swing 1600 / 1655* mm F » Max. dumping height 2835 / 2995* mm M » Rear swing radius 1160 mm G » Max. cutting height 3995 / 4130* mm M’ » Rear swing radius with additional counterweight 1240 mm Cabin Canopy Operating weight (rubber tracks) 2675 kg 0.33 kg/cm2 2535 kg 0.30 kg/cm2 Transport weight (rubber tracks) 2600 kg 0.33 kg/cm2 2460 kg 0.30 kg/cm2 With steel tracks + 110 kg 0.34 kg/cm2 + 110 kg 0.32 kg/cm2 With additional counterweight + 100 kg 0.34 kg/cm2 + 100 kg 0.31 kg/cm2 -
Other features

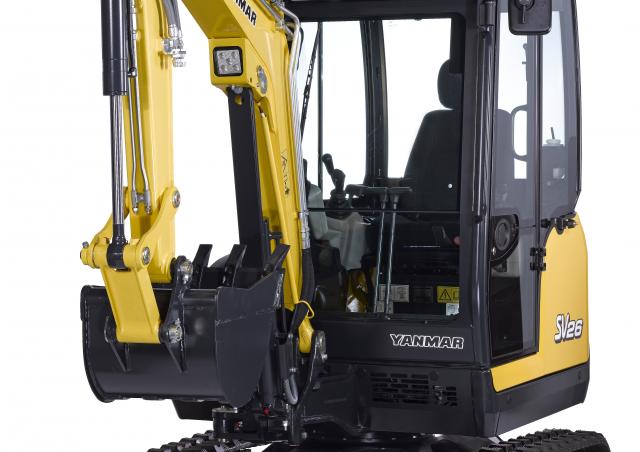

Large and comfortable cabin
The interior of the SV26 cab is very spacious for maximum freedom of movement. The large legroom allows the operator to work comfortably over long hours.
Excellent air circulation
The SV26 features a heater that can work in extreme weather conditions at pleasant temperature. Ventilation vents are placed to ensure an even temperature inside the cab, ensuring perfect window desisting. The standard SV26 seat has several adjustment options comfortable travel gear and is equipped with a head rest to reduce stress and operator fatigue.
OPTIMUM VISIBILITY FOR EFFICIENT AND SAFE WORK
The large cab windows and shape of SV26 covers offer the operator a perfect view. The front windshield is recessed into two parts with its upper part. Side windows on the right-hand slider. This excellent visibility ensures optimum job site safety, reducing the risk of damage to the machine, especially in tight spaces or congested jobsites. The transparent front portion of the roof provides perfect control during loading and demolition operations. The SV26 is equipped with 3 rearview and side vision mirrors. The operator can control the working area as well as the area around the machine without moving from his seat. To be able to work efficiently and accurately in the dark, the SV26 comes with a standard located LED light source in the lower section of the boom where it is protected against shocks.
Digital interface: for better control of the machine and greater productivity
The SV26 is equipped with a digital interface, which informs the operator in real time about the status of his machine. Perfectly integrated into the right-hand console, the 3.3' screen provides excellent visibility in bright sunlight or at night. This interface allows you to manage working hours, daily maintenance operations and programming interventions. It delivers useful information for operating the machine such as engine oil and coolant temperatures or fuel level saving major events. Also, it alerts the operator when malfunctioning the machine (insufficient battery charge, abnormal oil pressure...). Optional one beacon and three additional LED lamps can be added on the cab. -
Safety
The canopy and the cabin conform to ISO standards
The use of a very rigid and high-capacity ROPS structure for the cab increases operator safety in an overlay. The canopy and cabin also comply with FOPS1 standards (reference structures to protect against falling objects) and TOPS. -
Tables
Cabin Canopy Blade on ground Blade above ground Blade on ground Blade above ground A Max. 3.5 m 3 m 2.5 m 2 m Max. 3.5 m 3 m 2.5 m 2 m B TC 2.5 m *455 *455 *455 *455 *465 *465 *465 *465 *435 *435 *435 *435 - - - - - - - - 395 390 *455 *455 *465 *465 *465 *465 - - - - - - - - - - - - 2 m *470 *470 *470 *470 *470 *470 *470 *470 *480 *480 *480 *480 - - - - - - - - 380 375 *470 *470 *470 *470 *470 *470 *480 *480 *480 *480 - - - - - - - - 1 m 385 380 *490 *490 *545 *545 *545 *545 *620 *620 *620 *620 *770 *770 *770 *770 *1050 *1050 *1050 *1050 355 345 *490 395 435 430 *545 475 545 540 *620 *620 *770 *770 *770 *770 *1050 *1050 *1050 *1050 C 0 m 390 390 *520 *520 460 460 *590 *590 570 570 *730 *730 730 720 *920 *920 1000 990 *1320 *1320 358 355 *520 400 410 415 *590 460 520 515 *730 580 670 650 *920 745 910 900 *1320 1044 -1 m *545 425 *545 *545 - - - - 530 525 *610 *610 700 700 *835 *835 915 915 *1110 *1110 400 395 *545 485 - - - - 510 500 *610 555 655 640 *835 745 915 910 *1110 *1110 -1.5 m *560 *560 *560 *560 - - - - - - - - 710 695 *645 *645 980 985 *830 *830 470 465 *560 *560 - - - - - - - - 545 540 *645 *645 745 740 *830 *830 Blade on ground Blade above ground Blade on ground Blade above ground A Max. 3.5 m 3 m 2.5 m 2 m Max. 3.5 m 3 m 2.5 m 2 m B TC 2.5 m *455 *455 455 *455 *465 *465 *465 *465 *435 *435 *435 *435 - - - - - - - - 365 350 *455 *455 *465 *465 *465 *465 - - - - - - - - - - - - 2 m 370 365 *470 *470 *470 *470 *470 *470 *480 *480 *480 *480 - - - - - - - - 330 330 *470 *470 *470 *470 *470 *470 *480 *480 *480 *480 - - - - - - - - 1 m 340 330 *490 380 425 415 *545 *545 *620 *620 *620 *620 *770 *770 *770 *770 *1050 *1050 *1050 *1050 310 300 *490 350 385 375 *545 420 480 470 *620 *620 *770 *770 *770 *770 *1050 *1050 *1050 *1050 C 0 m 345 340 *520 390 400 400 *590 445 505 500 *730 560 650 635 *920 725 885 872 *1320 1020 310 310 *520 355 360 365 *590 405 455 450 *730 510 585 565 *920 660 800 785 *1320 925 -1 m 385 380 *545 *545 - - - - 490 490 *610 *610 630 620 *835 *835 890 879 *1110 *1110 345 340 *545 430 - - - - 445 440 *610 490 570 560 *835 665 800 790 *1110 870 -1.5 m *560 *560 *560 *560 - - - - - - - - *645 *645 *645 *645 *830 *830 *830 *830 405 400 *560 *565 - - - - - - - - 510 505 *645 *645 630 625 *830 *830 Cabin Canopy Blade on ground Blade above ground Blade on ground Blade above ground A Max. 3.5 m 3 m 2.5 m 2 m Max. 3.5 m 3 m 2.5 m 2 m B 2.5 m *515 *515 *515 *515 - - - - *525 *525 *525 *525 - - - - - - - - 405 405 *515 *515 - - - - *525 *525 *525 *525 - - - - - - - - 2 m 415 415 *535 *535 *530 *530 *530 *530 *560 *560 *560 *560 *570 *570 *570 *570 - - - - 375 375 *535 *535 *530 *530 *530 *530 *560 *560 *560 *560 *570 *570 *570 *570 - - - - 1 m 375 370 *545 430 420 420 *590 *590 525 515 *695 *695 700 680 *815 *815 890 860 *1040 *1040 340 330 *545 365 380 380 *590 505 475 465 *695 525 635 615 *815 620 800 775 *1040 *1040 C 0 m 380 370 *580 450 415 400 *610 450 510 495 *760 585 660 640 *935 650 920 885 *1335 1050 340 335 *580 370 375 365 *610 405 465 450 *760 535 595 575 *935 580 835 800 *1335 955 -1 m 430 430 *580 *580 - - - - 505 500 *610 *610 645 640 *830 *830 930 780 *1105 *1105 385 385 *580 515 - - - - 455 450 *610 *610 580 575 *830 *830 840 695 *1105 *1105 -1.5 m *540 *540 *540 *540 - - - - - - - - *580 *580 *580 *580 *765 *765 *810 *810 410 410 *540 *540 - - - - - - - - 440 *580 *580 *580 570 555 *810 *810 Blade on ground Blade above ground Blade on ground Blade above ground A Max. 3.5 m 3 m 2.5 m 2 m Max. 3.5 m 3 m 2.5 m 2 m B 2.5 m *515 *515 *515 *515 - - - - *525 *525 *525 *525 - - - - - - - - 515 *515 *515 *515 - - - - *525 *525 *525 *525 - - - - - - - - 2 m *535 *535 *535 *535 *530 *530 *530 *530 *560 *560 *560 *560 *570 *570 *570 *570 - - - - 425 425 *535 *535 *530 *530 *530 *530 *560 *560 *560 *560 *570 *570 *570 *570 - - - - 1 m 410 405 *545 *545 *590 475 *590 *590 *695 *695 *695 *695 *815 *815 *815 *815 *1040 *1040 *1040 *1040 385 380 *545 440 435 430 *590 515 540 530 *695 595 720 *680 *815 *815 916 890 *1040 *1040 C 0 m 460 420 *580 *580 470 460 *610 *610 575 570 *760 *760 735 720 *935 *935 1035 1030 *1335 *1335 390 385 *580 560 425 415 *610 460 525 510 *760 600 680 660 *935 665 951 915 *1335 1075 -1 m 485 480 *580 *580 - - - - 570 560 *610 *610 735 730 *830 *830 1000 980 *1105 *1105 445 440 *580 530 - - - - *505 520 *610 *610 665 655 *830 *830 *930 810 *1105 *1105 -1.5 m *540 *540 *540 *540 - - - - - - - - *580 *580 *580 *580 *810 *810 *810 *810 *540 *540 *540 *540 - - - - - - - - *580 *580 *580 *580 *810 670 *810 *810 Type 3TNV82A-BPBVA Fuel Diesel Net Power 17.6 kW / 23.9 HP / 2400 rpm Gross Power 18.1 kW / 24.8 HP / 2400 rpm Displacement 1331 cm3 Maximum torque 85.5 N.m. / 1400 rpm Cooling Liquid Starter 2.3 kW Battery 12 V – 56 Ah Alternator 12 V - 40 A Fuel tank 38.5 l Coolant 3.8 l Engine oil 3.7 l Hydraulic circuit 30 l Hydraulic tank 25.2 l Number of top rollers 1 Number of bottom rollers 3 Track tensioning system Using grease pump Travel speed 2.9 / 4.8 km/h Rotation speed 10.2 rpm Digging force (arm) 14.5 kN (1500 kgf) / 12.7 kN with long arm Digging force (bucket) 24.5 kN (2500 kgf) Traction force 37 kN Grade ability 30° Noise level (2000/14/CE & 2005/88/CE) 76 dB(A) / 94 dB(A) (LwA) Maximum pressure 210 bar 1 double piston pump with variable flow 2 x 32.4 l/min 1 gear pump 21.6 l/min 1 gear pump trochoid 10.8 l/min PTO Theoretical data at 1900 rpm Pressure Oil flow 0 ~ 210 bar 56 ~ 15 l/min 0 ~ 210 bar 56 ~ 15 l/min
