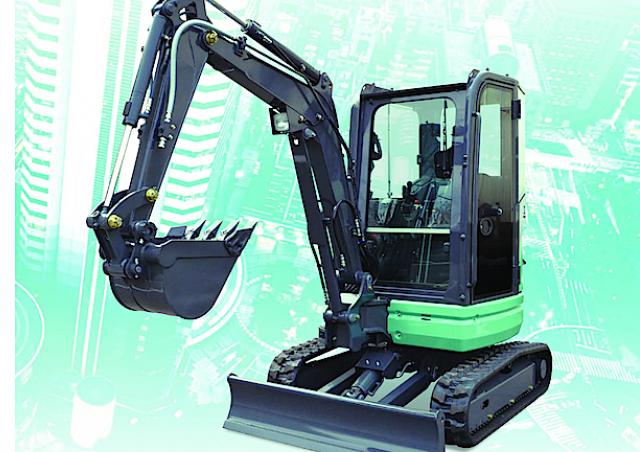

    Kato 25V4-F excavator specs (2017 - 2023)

    Rate this machine now!

    Weight: 2.5t – Transport length: 4m – Transport width: 1.55m – Transport height: 2.46m – Bucket capacity: 0.08m³ – Bucket width: 0... Read more

    Weight: 2.5t – Transport length: 4m – Transport width: 1.55m – Transport height: 2.46m – Bucket capacity: 0.08m³ – Bucket width: 0.5m

    Check out detailed specifications, information and technical data for Kato 25V4-F excavator manufactured between 2017 - 2023. Get more in-depth insight with Kato 25V4-F digger specifications. See information, like: Weight: 2.5t – Transport length: 4m – Transport width: 1.55m – Transport height: 2.46m – Bucket capacity: 0.08m³ – Bucket width: 0.5m and more.

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 2.5 t
    • Transport length 4 m
    • Transport width 1.55 m
    • Transport height 2.46 m
    • Bucket capacity 0.08 m³
    • Bucket width 0.5 m
    • Track width 250 mm
    • Driver protection FD
    • Max. Reach horizontal 4.56 m
    • Dredging depth 2.44 m
    • Tear-out force 21 kN
    • Engine manuf. Kubota
    • Engine type D1305-E4B
    • Engine power 17.6 kW
    • Emission level Tier 4

    More technical details, like: bucket capacity min., bucket capacity max., standard tyres, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

    Basic model with standard bucket

    Special equipment

    • Track adjustment
    • Rubber track
    • Blade
    • Aircondition
    • Quick hitch hydr.
    • Quick hitch mech.

    Carbon footprint calculator for Mini Excavators

    See the ERA equipment CO2 Calculator to find out the CO2 footprint per hour of use of the Kato 25V4-F or alternative Mini Excavators.

    The carbon emission evaluation can be carried out using different motor oil consumption scenarios or other variables.

    or visit the ERA Equipment CO2 Calculator to find out how to optimise your carbon footprint.

    service provided by ERA

    Kato 25V4-F overview

    • Dimensions and weight

      Std. armLong. arm
      AMax. digging radius45604840
      BMax. digging depth24402740
      CMax. digging height42204410
      DMax. dumping height29003090
      EMax. vertical digging depth18402120
      FMin. front turning radius20302090
      At right boom swing17401790
      Bucket capacity0.08m3
      Bucket width500mm
      Operating weight: Canopy (Cabin)2575(2725)kg
      Transportation weight: Canopy (Cabin)2500(2650)kg
      Swing speed9.0min−1
      Travel speed (low/high)2.5 / 4.4km/h
      Gradeability58%(30°)
      Ground pressure31kPa(0.32kgf/cm2 )
      Max bucket digging force21kN(2140kgf)
      ◇ Engine
      ModelKUBOTA D1305-E4B
      Rated output17.6kW(23.9PS)/2400min−1
      Fuel tank capacity42L
    • Tables

      TypeBoom ofset with hydraulic cylinder
      Swing angle (L/R)80°/ 50°
      ◇ Hydraulic system
      Pressure21.6MPa (220kgf/cm2 ) 18.1MPa (185kgf/cm2 )
      Pump hydraulic flow28.8 L/min×2+ 19.2L/min
      ◇ Dozer blade
      Size1550×380mm
      Lift above ground / Drop below ground355mm / 410mm
      ◇ Max auxiliary flow
      1st line48L/min
      2nd line19L/min
      DescriptionStandard equipmentOptional equipmentRemarks
      Operator roomROPS/FOPS Canopy (4-Post)ROPS Cabin Ⓐ
      FOPS Guard Heater2-Post Canopy Ⓑ (※)(※) No ROPS compatibility
      SeatSuspension SeatHigh back suspension seat ⒸFabric suspension seat
      Control leverwith propotional switch Ⓓw/o propotional switch (※)(※) combination with
      Lever patternType A (ISO standard)AF changerABCD changer Ⓔ
      Control pedalBoom swing pedalTraction foot pedals Ⓕ1st aux. hydraulic control pedal Ⓖ
      CrawlerRubber shoesSteel shoesRubber Pads Ⓗ
      ArmStandard armLong arm (+300mm)
      BuacketStandard bucketDigging buckets (※)Loading buckets (※)(※) Various sizes
      Auxiliary hydraulics1st auxiliary hydraulic piping2nd auxiliary hydraulic piping3rd auxiliary hydraulic piping
