XE155WD XCMG Excavator Specs & Dimensions - (2025 - 2026)

Weight: 13.9t – Bucket capacity: 0.58m³ – Tear-out force: 95kN – Travel speed: 38km/h – Model series: XE – Engine manuf.: Perkins…

Weight: 13.9t – Bucket capacity: 0.58m³ – Tear-out force: 95kN – Travel speed: 38km/h – Model series: XE – Engine manuf.: Perkins

Check out detailed dimensions, specifications, information and technical data for XCMG XE155WD excavator manufactured between 2025 - 2026. Get more in-depth insight with XCMG XE155WD digger specifications. See information, like: Weight: 13.9t – Bucket capacity: 0.58m³ – Tear-out force: 95kN – Travel speed: 38km/h – Model series: XE – Engine manuf.: Perkins and more.

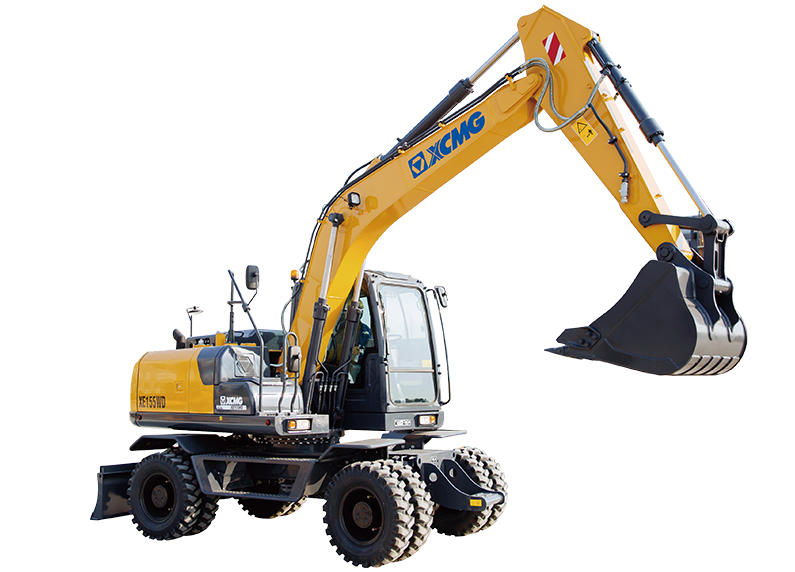

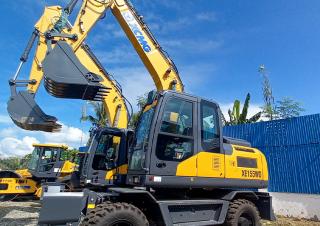

Wheel Excavators XCMG XE155WD
Wheel Excavators XCMG XE155WD
Wheel Excavators XCMG XE155WD
Wheel Excavators XCMG XE155WD
Wheel Excavators XCMG XE155WD
Wheel Excavators XCMG XE155WD

Visit XCMG live at

Technical specs - XE155WD XCMG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.9 t
Bucket capacity
0.58 m³
Tear-out force
95 kN
Travel speed
38 km/h
Model series
XE
Engine manuf.
Perkins
Engine type
1104D-E44TA
Engine power
106 kW
Displacement
4.4 l
Max. torque
516/1400 Nm
Emission level
III

More technical details, like: standard tyres, bucket capacity min., bucket capacity max., boom, outrigger stabilisers, transport length, transport width, transport height, max. reach horizontal, dredging depth, bucket width, dipper length...

More technical details, like: standard tyres, bucket capacity min., bucket capacity max., boom, outrigger stabilisers, transport length, transport width, transport height, max. reach horizontal, dredging depth, bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh, revolutions at max torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No
