EW180E Volvo Excavator Specs & Dimensions - (2019 - 2026)

Weight: 19.9t – Standard tyres: 10.00x20 – Bucket capacity: 0.87m³ – Boom: MB – Transport length: 8.88m – Transport width: 2.54m…

Weight: 19.9t – Standard tyres: 10.00x20 – Bucket capacity: 0.87m³ – Boom: MB – Transport length: 8.88m – Transport width: 2.54m

Check out detailed dimensions, specifications, information and technical data for Volvo EW180E excavator manufactured between 2019 - 2026. Get more in-depth insight with Volvo EW180E digger specifications. See information, like: Weight: 19.9t – Standard tyres: 10.00x20 – Bucket capacity: 0.87m³ – Boom: MB – Transport length: 8.88m – Transport width: 2.54m and more.

Wheel Excavators Volvo EW180E
Wheel Excavators Volvo EW180E
Wheel Excavators Volvo EW180E
Wheel Excavators Volvo EW180E
Wheel Excavators Volvo EW180E
Wheel Excavators Volvo EW180E
Wheel Excavators Volvo EW180E
Wheel Excavators Volvo EW180E
Wheel Excavators Volvo EW180E
Wheel Excavators Volvo EW180E
Wheel Excavators Volvo EW180E
Wheel Excavators Volvo EW180E
Wheel Excavators Volvo EW180E
Wheel Excavators Volvo EW180E

Visit Volvo live at

Technical specs - EW180E Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
19.9 t
Standard tyres
10.00x20
Bucket capacity
0.87 m³
Boom
MB
Transport length
8.88 m
Transport width
2.54 m
Transport height
3.19 m

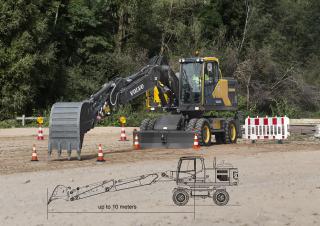

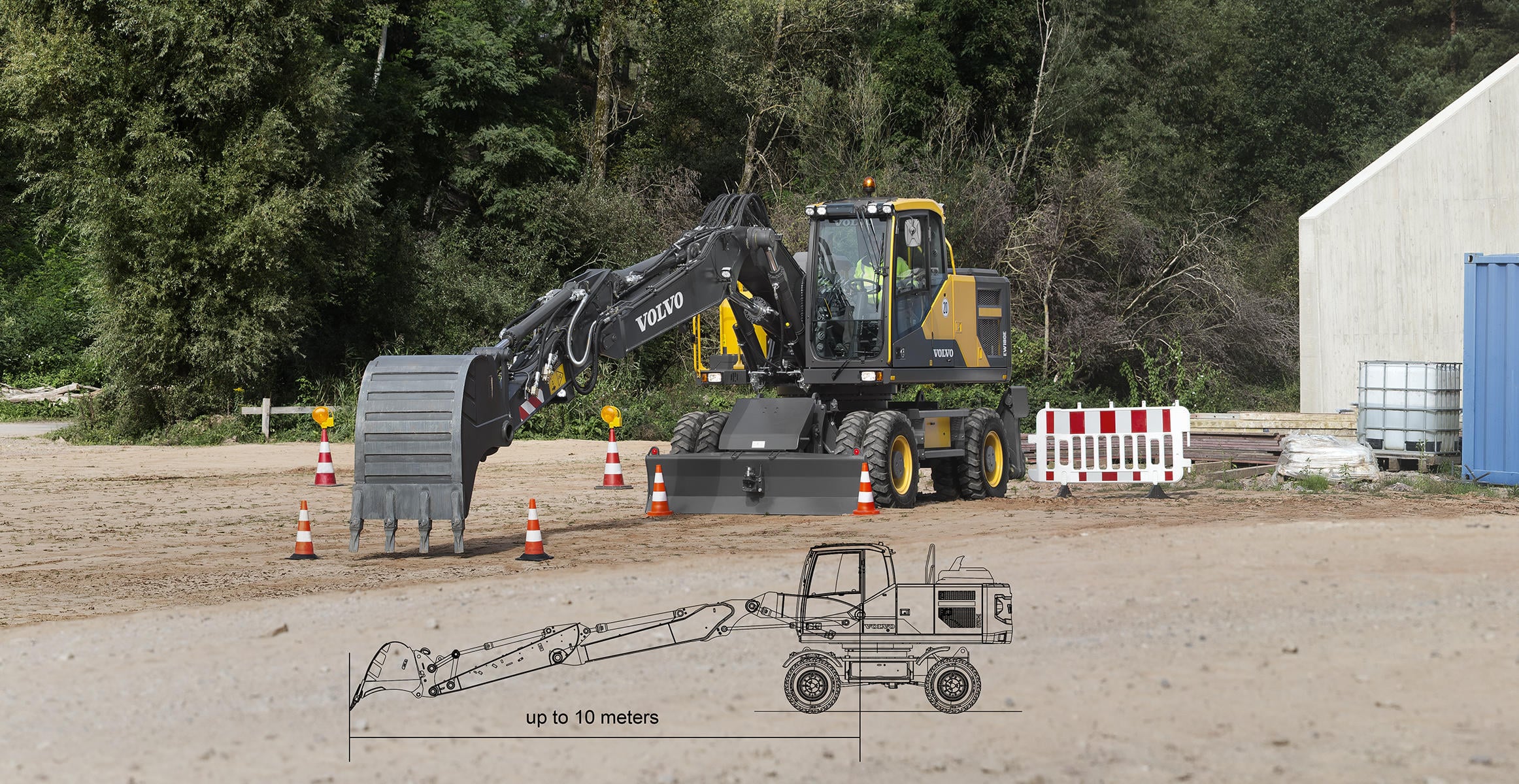

Max. Reach horizontal
9.4 m
Dredging depth
5.54 m
Tear-out force
132 kN
Travel speed
35 km/h
Model series
EW
Engine manuf.
Volvo
Engine type
D6J
Engine power
126 kW
Displacement
5.7 l
Revolutions at max torque
1800 rpm
Max. torque
850/1350 Nm
No. of cylinders
6
Cylinder bore x stroke
98x126 mm
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., outrigger stabilisers, bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EW180E FAQ

When was the Volvo EW180E manufactured?

The Volvo EW180E was first produced in 2019.

How much does the Volvo EW180E wheel excavator weigh?

The Volvo EW180E wheel excavator weighs 19.9 tons.

What are the transport dimensions of the Volvo EW180E wheel excavator?

The Volvo EW180E has a transport length of 8.88 meters, a transport width of 2.54 meters, and a transport height of 3.19 meters.

What is the travel speed of the Volvo EW180E wheel excavator?

The Volvo EW180E wheel excavator has a travel speed of 35 km/h.

What are the undercarriage specifications of the Volvo EW180E wheel excavator?

The Volvo EW180E wheel excavator is equipped with standard tyres sized 10.00x20.

What are the excavation performance specifications of the Volvo EW180E wheel excavator?

The Volvo EW180E has a dredging depth of 5.54 meters, a maximum horizontal reach of 9.4 meters, and features a monobloc boom.

What is the tear-out force of the Volvo EW180E wheel excavator, and is there any power rating available?

The Volvo EW180E wheel excavator has a tear-out force of 132 kN. No power rating data is provided in the available information.

What is the bucket capacity of the Volvo EW180E wheel excavator?

The Volvo EW180E wheel excavator has a bucket capacity of 0.87 cubic meters.

How much is a Volvo EW180E Wheel excavator (2019u20132025) worth?

The residual value of the Volvo EW180E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
