EW180E Volvo Excavator Specs & Dimensions - (2016 - 2018)

Volvo is the manufacturer of the wheel excavator model EW 180 E. Find and download detailed specs and data sheets for this machine…

Volvo is the manufacturer of the wheel excavator model EW 180 E. Find and download detailed specs and data sheets for this machine here.

This wheel excavator is built to provide up to 129kW or 172 horse power, delivered from its powerful Volvo engine to the 19.9t EW 180 E machine. This Volvo wheel excavator belongs to the biggest machine segment in the wheel excavators category. The model's dimensions are 8.8m x 2.54m x 3.19m. The bucket of EW 180 E has a capacity of 0,87m³ which is average for this type of machine.

The EW 180 E is manufactured and distributed with Blade. It has been sold without air Track guidance, Diesel particulate filter and Overload alert as of 2017. There are more detailed specifications and machine descriptions available in the original Volvo EW 180 E specs data sheet. Available in English, Italian, German, Spanish, French and Polish, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.

At present, 7 other wheel excavators, which range from 7.2t up to 22.2t are produced by Volvo. Of these, EW 210 D, EW 140 D and also EW 60 E are the most frequently visited on LECTURA Specs. Having been in production from 2016 to 2017, the EW 180 E wheel excavator ranks in the LECTURA index at #110. Want more detailed specifications? Download the latest Volvo EW 180 E specs data sheet on LECTURA Specs today!

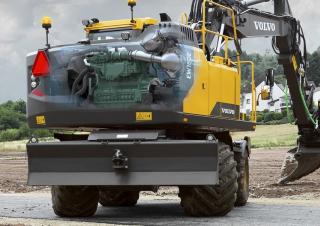

Wheel Excavators Volvo EW180E

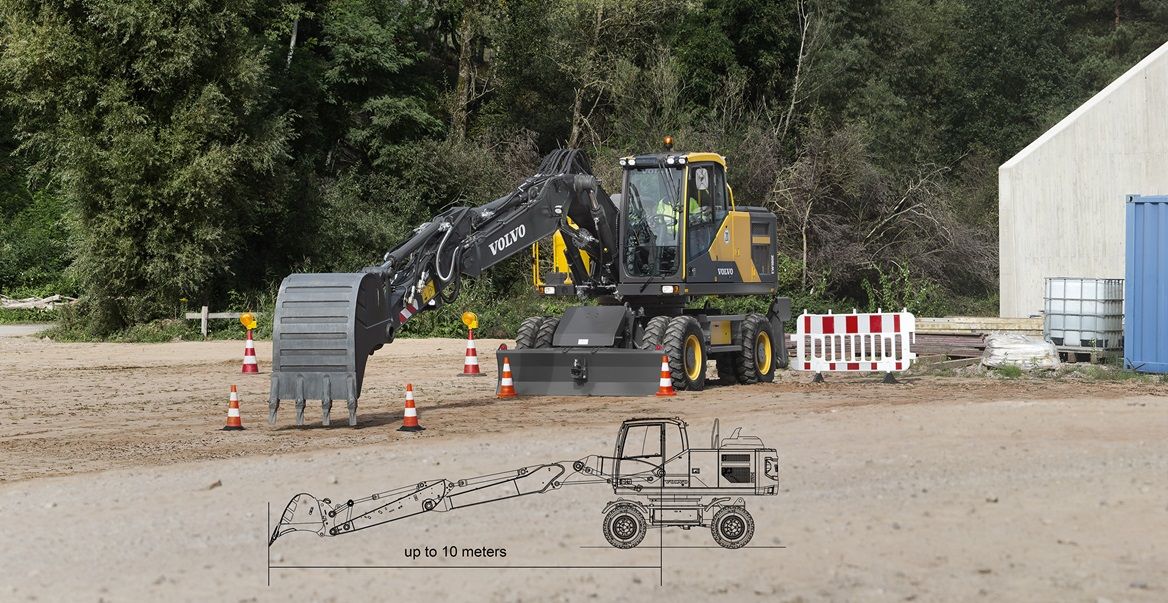

Wheel Excavators Volvo EW180E

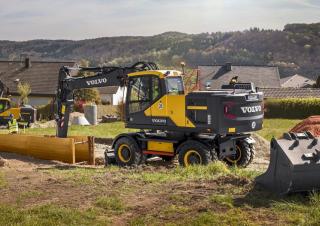

Wheel Excavators Volvo EW180E

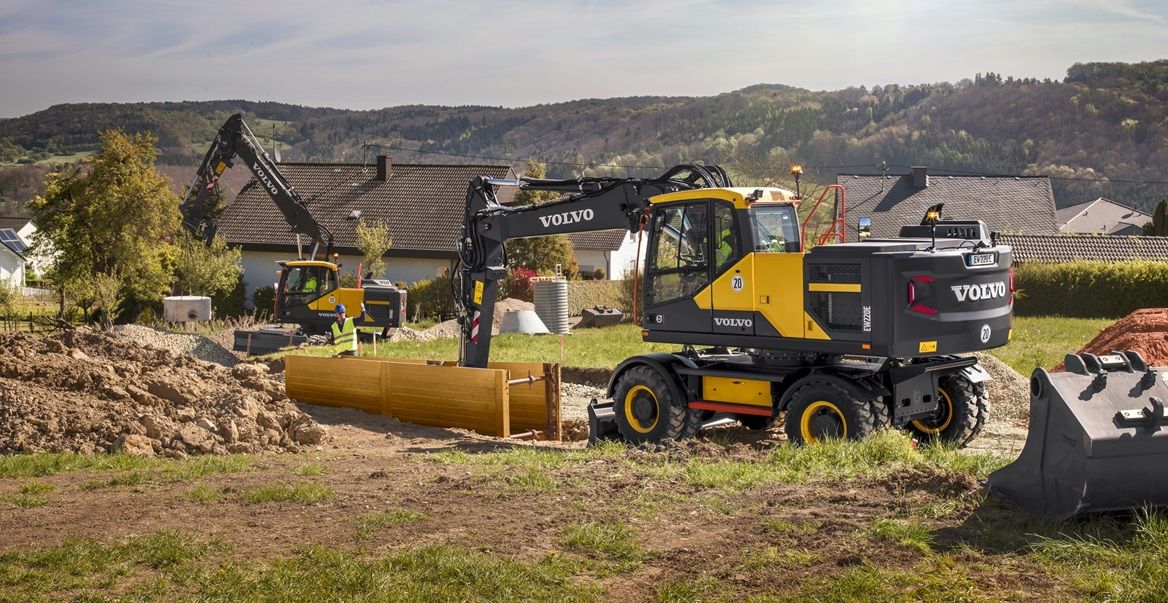

Wheel Excavators Volvo EW180E
Wheel Excavators Volvo EW180E
Wheel Excavators Volvo EW180E

Visit Volvo live at

Technical specs - EW180E Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
19.9 t
Standard tyres
10.00x20
Bucket capacity
0.87 m³
Boom
MB
Transport length
8.8 m
Transport width
2.54 m
Transport height
3.19 m
Max. Reach horizontal
9.4 m
Dredging depth
5.54 m
Tear-out force
136 kN
Travel speed
35 km/h
Model series
EW
Engine manuf.
Volvo
Engine type
D6J
Engine power
129 kW
Displacement
5.7 l
Revolutions at max torque
1800 rpm
Max. torque
850/1350 Nm
No. of cylinders
6
Cylinder bore x stroke
98/126 mm
Emission level
4/Tier 4 f

More technical details, like: bucket capacity min., bucket capacity max., outrigger stabilisers, bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Volvo EW180E FAQ

When was the Volvo EW180E manufactured?

The Volvo EW180E was manufactured from 2016 to 2018.

How much does the Volvo EW180E wheel excavator weigh?

The Volvo EW180E wheel excavator weighs 19.9 tons.

What are the transport dimensions of the Volvo EW180E wheel excavator?

The Volvo EW180E has a transport length of 8.8 meters, a transport width of 2.54 meters, and a transport height of 3.19 meters.

What is the travel speed of the Volvo EW180E wheel excavator?

The Volvo EW180E has a travel speed of 35 km/h.

What are the undercarriage specifications of the Volvo EW180E wheel excavator?

The Volvo EW180E wheel excavator is equipped with standard tyres sized 10.00x20.

What are the excavation performance specifications of the Volvo EW180E wheel excavator?

The Volvo EW180E has a dredging depth of 5.54 meters, a maximum horizontal reach of 9.4 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Volvo EW180E wheel excavator?

The Volvo EW180E wheel excavator has a tear-out force of 136 kN.

What is the bucket capacity of the Volvo EW180E wheel excavator?

The bucket capacity of the Volvo EW180E wheel excavator is 0.87 cubic meters.

How much is a Volvo EW180E Wheel excavator (2016u20132018) worth?

The residual value of the Volvo EW180E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
