TB 1160 W Takeuchi Excavator Specs & Dimensions - (2010 - 2015)

Manufactured by Takeuchi, this is the TB 1160 W wheel excavator. Find and download detailed specs and data sheets for this machine…

Manufactured by Takeuchi, this is the TB 1160 W wheel excavator. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful Isuzu engine, this TB 1160 W 15t machine can provide 95kW or 127 horse power for the wheel excavator. The TB 1160 W is categorised in the medium sized machine segment in the wheel excavators category. The bucket of TB 1160 W has a capacity of 0,4m³ which is average for this type of machine.

The Takeuchi TB 1160 W has been equipped and sold with Diesel particulate filter, Aircondition and Blade. It has been sold without air Quick hitch hydr., Material Handling Excavator and Track guidance as of 2015. There are more detailed specifications and machine descriptions available in the original Takeuchi TB 1160 W specs data sheet. Specification sheet is available for a free download in German and Italian - providing the machine descriptions and more detailed specs about this particular model.

This model can be acquired for a list price between €189000 and €240000. Production of the TB 1160 W stopped in 2015. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Takeuchi models of this type on LECTURA Specs are the TB 295W-1, and 1 other wheel excavators, which currently range from 10t up to 10t are also available. We can see currently about 1 models of the TB 1160 W wheel excavator with an average age of 7 years and average price of €68700. Want more detailed specifications? Download the latest Takeuchi TB 1160 W specs data sheet on LECTURA Specs today!

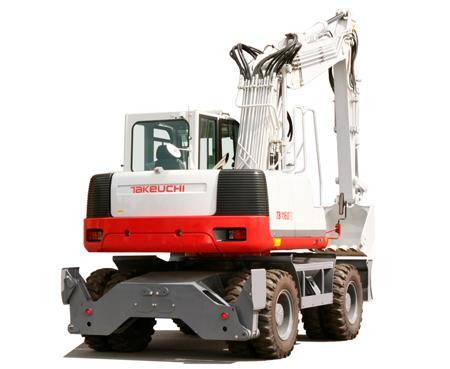

Wheel Excavators Takeuchi TB 1160 W

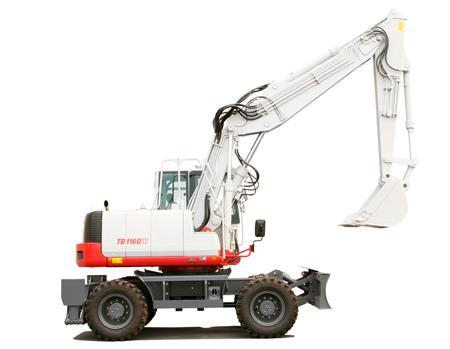

Wheel Excavators Takeuchi TB 1160 W
Wheel Excavators Takeuchi TB 1160 W
Wheel Excavators Takeuchi TB 1160 W

Technical specs - TB 1160 W Takeuchi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
15 t
Standard tyres
10.00-20
Bucket capacity
0.4 m³
Boom
VA
Max. Reach horizontal
8 m
Dredging depth
6 m
Model series
TB
Engine manuf.
Isuzu
Engine type
AI 4 JJ 1 X
Engine power
95 kW
Displacement
3 l

More technical details, like: bucket capacity min., bucket capacity max., outrigger stabilisers, transport length, transport width, transport height, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed...

More technical details, like: bucket capacity min., bucket capacity max., outrigger stabilisers, transport length, transport width, transport height, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Takeuchi TB 1160 W FAQ

When was the Takeuchi TB 1160 W manufactured?

The Takeuchi TB 1160 W was manufactured from 2010 to 2015.

How much does the Takeuchi TB 1160 W weigh?

The Takeuchi TB 1160 W weighs 15 tons.

What are the undercarriage specifications of the Takeuchi TB 1160 W wheel excavator?

The Takeuchi TB 1160 W is equipped with standard tyres sized 10.00-20.

What are the excavation performance specifications of the Takeuchi TB 1160 W wheel excavator?

The Takeuchi TB 1160 W has an adjustable boom, a dredging depth of 6 meters, and a maximum horizontal reach of 8 meters.

What is the bucket capacity of the Takeuchi TB 1160 W wheel excavator?

The Takeuchi TB 1160 W wheel excavator has a bucket capacity of 0.4 cubic meters.

How much is a Takeuchi TB 1160 W Wheel excavator (2010u20132015) worth?

The residual value of the Takeuchi TB 1160 W depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
