818 M Sennebogen Excavator Specs & Dimensions - (2010 - 2019)

Model rating
8,00 / 10

The 818 M wheel excavator model is manufactured by Sennebogen. Find and download detailed specs and data sheets for this machine h…

The 818 M wheel excavator model is manufactured by Sennebogen. Find and download detailed specs and data sheets for this machine here.

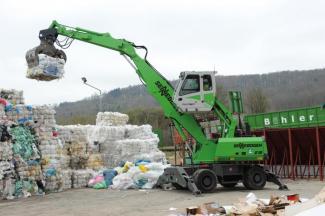

This wheel excavator is built to provide up to 97kW or 130 horse power, delivered from its powerful Cummins engine to the 16.9t 818 M machine. This Sennebogen wheel excavator belongs to the medium sized machine segment in the wheel excavators category. The model's dimensions are 4.97m x 2.5m x 3.12m.

Since 2010, this model has included Material Handling Excavator, Aircondition and Overload alert. Diesel particulate filter, Quick hitch mech. And Quick hitch hydr. Are not provided on this model as of 2017. There are more detailed specifications and machine descriptions available in the original Sennebogen 818 M specs data sheet. Available in English and German, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.

This model can be acquired for a list price between €231000 and €293000. Production of the 818 M continues in 2017. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Sennebogen currently produces 13 other wheel excavators, which range from 21.5t up to 165t - the most visited on LECTURA Specs are 850 M, 821 M, 825 M. Ranked in the LECTURA index at #50, this 818 M wheel excavator has models that date from 2010 to 2017. Throughout the production cycle of this 818 M wheel excavator, there have been around 13 models that average a price of €62900 for an age of 6 years Want more detailed specifications? Download the latest Sennebogen 818 M specs data sheet on LECTURA Specs today!

Wheel Excavators Sennebogen 818 M

Visit Sennebogen live at

Technical specs - 818 M Sennebogen

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.9 t
Standard tyres
10.00-20
Boom
UA
Outrigger stabilisers
2/4 2/4-fold
Transport length
4.97 m
Transport width
2.5 m
Transport height
3.12 m
Max. Reach horizontal
9 m
Travel speed
20 km/h
Model series
M
Engine manuf.
Cummins
Engine type
QSB4.5-C130
Engine power
97 kW
Emission level
T3

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
Yes
Overload alert
Yes
Material Handling Excavator
Yes
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sennebogen 818 M FAQ

When was the Sennebogen 818 M manufactured?

The Sennebogen 818 M was manufactured from 2010 to 2019.

How much does the Sennebogen 818 M wheel excavator weigh?

The Sennebogen 818 M wheel excavator weighs 16.9 tons.

What are the transport dimensions of the Sennebogen 818 M wheel excavator?

The Sennebogen 818 M has a transport length of 4.97 meters, a transport width of 2.5 meters, and a transport height of 3.12 meters.

What is the travel speed of the Sennebogen 818 M wheel excavator?

The Sennebogen 818 M has a travel speed of 20 km/h.

What are the undercarriage specifications of the Sennebogen 818 M wheel excavator?

The Sennebogen 818 M is equipped with standard tyres sized 10.00-20 and features 2/4-fold outrigger stabilisers.

What is the maximum horizontal reach and boom type of the Sennebogen 818 M?

The Sennebogen 818 M has a maximum horizontal reach of 9 meters and is equipped with a material handling boom.

How much is a Sennebogen 818 M Wheel excavator (2010u20132019) worth?

The residual value of the Sennebogen 818 M depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
