MH 5 O&K Excavator Specs & Dimensions - (1995 - 1999)

Model rating
4,67 / 10

O&K is the manufacturer of the wheel excavator model MH 5. Find and download detailed specs and data sheets for this machine h…

O&K is the manufacturer of the wheel excavator model MH 5. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful Deutz engine, this MH 5 19.9t machine can provide 89kW or 119 horse power for the wheel excavator. The MH 5 is categorised in the biggest machine segment in the wheel excavators category. The MH 5’s size is 2.5m x 8.9m x 3.11m. The bucket capacity of MH 5 is 0,5m³, which is above average for this type of machine.

It has been sold without air Material Handling Excavator, Overload alert and Aircondition as of 1999. There are more detailed specifications and machine descriptions available in the original O&K MH 5 specs data sheet. Specification sheet is available for a free download in German - providing the machine descriptions and more detailed specs about this particular model.

The production stopped in 1999, where this MH 5 was available at a new list price between €170000 and €217000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed O&K models of this type on LECTURA Specs are the, and other wheel excavators, which currently range from up to are also available. Want more detailed specifications? Download the latest O&K MH 5 specs data sheet on LECTURA Specs today!

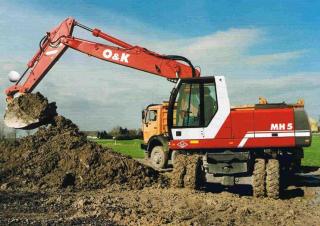

Wheel Excavators O&K MH 5

Technical specs - MH 5 O&K

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
19.9 t
Standard tyres
10.00-20
Bucket capacity
0.5 m³
Transport length
8.9 m
Transport width
2.5 m
Transport height
3.11 m
Model series
MH
Engine manuf.
Deutz
Engine type
BF6M1013
Engine power
89 kW
Displacement
1.19 l
No. of cylinders
6
Cylinder bore x stroke
108x130 mm

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed...

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, revolutions at max torque, max. torque, emission level, number of mono booms, total number of dippers - mono, number of articulated booms, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, overall width, machine width - maximum, wheelbase, rear axle to slew centre, tailswing radius, cab height, ground clearance, overall width - stabilisers down, mono boom size, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

O&K MH 5 FAQ

When was the O&K MH 5 manufactured?

The O&K MH 5 was manufactured from 1995 to 1999.

How much does the O&K MH 5 wheel excavator weigh?

The O&K MH 5 wheel excavator weighs 19.9 tons.

What are the transport dimensions of the O&K MH 5 wheel excavator?

The O&K MH 5 has a transport length of 8.9 meters, a transport width of 2.5 meters, and a transport height of 3.11 meters.

What is the standard tyre size of the O&K MH 5 wheel excavator?

The O&K MH 5 wheel excavator has standard tyres sized 10.00-20.

What is the bucket capacity of the O&K MH 5 wheel excavator?

The bucket capacity of the O&K MH 5 wheel excavator is 0.5 cubic meters.

How much is a O&K MH 5 Wheel excavator (1995u20131999) worth?

The residual value of the O&K MH 5 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
