A 920 Litronic G6.0 Liebherr Excavator Specs & Dimensions - (2016 - 2026)

Weight: 19t – Standard tyres: 10.00-20 – Bucket capacity: 0.8m³ – Boom: VA – Outrigger stabilisers: 2/42/4-fold – Transport length…

Weight: 19t – Standard tyres: 10.00-20 – Bucket capacity: 0.8m³ – Boom: VA – Outrigger stabilisers: 2/42/4-fold – Transport length: 9.1m

Check out detailed dimensions, specifications, information and technical data for Liebherr A 920 Litronic G6.0 excavator manufactured between 2016 - 2026. Get more in-depth insight with Liebherr A 920 Litronic G6.0 digger specifications. See information, like: Weight: 19t – Standard tyres: 10.00-20 – Bucket capacity: 0.8m³ – Boom: VA – Outrigger stabilisers: 2/42/4-fold – Transport length: 9.1m and more.

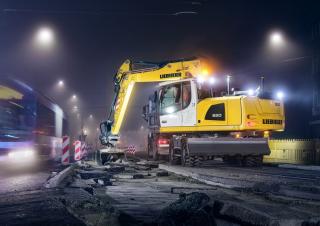

Wheel Excavators Liebherr A 920 Litronic G6.0
Wheel Excavators Liebherr A 920 Litronic G6.0
Wheel Excavators Liebherr A 920 Litronic G6.0
Wheel Excavators Liebherr A 920 Litronic G6.0

Visit Liebherr live at

Technical specs - A 920 Litronic G6.0 Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
19 t
Standard tyres
10.00-20
Bucket capacity
0.8 m³
Boom
VA
Outrigger stabilisers
2/4 2/4-fold
Transport length
9.1 m
Transport width
2.55 m
Transport height
3.16 m
Max. Reach horizontal
9.5 m
Dredging depth
6.05 m
Tear-out force
124.6 kN
Bucket width
1.05 m
Dipper length
2.45 m
Travel speed
37 km/h
Engine manuf.
FPT
Engine type
D924
Engine power
129 kW
Displacement
4.5 l
Revolutions at max torque
1800 rpm
No. of cylinders
4
Cylinder bore x stroke
104x132 mm
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., turning radius inside, turning radius outside, model series, dimension lxwxh, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

Liebherr A 920 Litronic G6.0 FAQ

When was the Liebherr A 920 Litronic manufactured?

The Liebherr A 920 Litronic was first produced in 2016.

How much does the Liebherr A 920 Litronic weigh?

The Liebherr A 920 Litronic weighs 19 tons.

What are the transport dimensions of the Liebherr A 920 Litronic wheel excavator?

The Liebherr A 920 Litronic has a transport length of 9.1 meters, a transport width of 2.55 meters, and a transport height of 3.16 meters.

What is the travel speed of the Liebherr A 920 Litronic wheel excavator?

The Liebherr A 920 Litronic has a travel speed of 37 km/h.

What are the undercarriage specifications of the Liebherr A 920 Litronic wheel excavator?

The Liebherr A 920 Litronic is equipped with 10.00-20 standard tyres and features 2/4-fold outrigger stabilisers.

What are the excavation performance specifications of the Liebherr A 920 Litronic wheel excavator?

The Liebherr A 920 Litronic has an adjustable boom, a dredging depth of 6.6 meters, a maximum horizontal reach of 9.9 meters, and a dipper length of 3.05 meters.

What power rating information is available for the Liebherr A 920 Litronic wheel excavator?

There is no power rating information available for the Liebherr A 920 Litronic wheel excavator in the provided data.

What are the bucket specifications of the Liebherr A 920 Litronic wheel excavator?

The Liebherr A 920 Litronic has a bucket capacity of 0.8 cubic meters and a bucket width of 1.05 meters.

How much is a Liebherr A 920 Litronic Wheel excavator (2016u20132025) worth?

The residual value of the Liebherr A 920 Litronic depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
