A 920 Litronic Liebherr Excavator Specs & Dimensions - (2012 - 2016)

Model rating
9,00 / 10

Liebherr is the manufacturer of the wheel excavator model A 920 Litronic. Find and download detailed specs and data sheets for thi…

Liebherr is the manufacturer of the wheel excavator model A 920 Litronic. Find and download detailed specs and data sheets for this machine here.

This wheel excavator is built to provide up to 120kW or 160 horse power, delivered from its powerful Liebherr engine to the 19.4t A 920 Litronic machine. This Liebherr wheel excavator belongs to the biggest machine segment in the wheel excavators category. The A 920 Litronic’s size is 2.55m x 9.2m x 3.16m. The bucket capacity of A 920 Litronic is 0,8m³, which is above average for this type of machine.

The Liebherr A 920 Litronic has been equipped and sold with Overload alert, Blade and Aircondition. Cabin adjustment, Quick hitch mech. And Track guidance are not provided on this model as of 2016. There are more detailed specifications and machine descriptions available in the original Liebherr A 920 Litronic specs data sheet. Available in German, English and French, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.

This model can be acquired for a list price between €300000 and €382000. Production of the A 920 Litronic stopped in 2016. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Liebherr currently produces 12 other wheel excavators, which range from 11.8t up to 27.1t - the most visited on LECTURA Specs are A 914 Compact Litronic, A 914 Litronic, A 916 Litronic. Want more detailed specifications? Download the latest Liebherr A 920 Litronic specs data sheet on LECTURA Specs today!

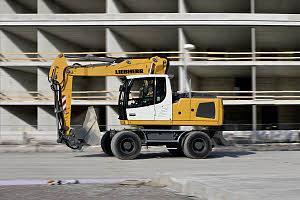

Wheel Excavators Liebherr A 920 Litronic
Wheel Excavators Liebherr A 920 Litronic
Wheel Excavators Liebherr A 920 Litronic
Wheel Excavators Liebherr A 920 Litronic

Visit Liebherr live at

Technical specs - A 920 Litronic Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
19.4 t
Standard tyres
10.00-20
Bucket capacity
0.8 m³
Boom
VA
Outrigger stabilisers
4 2/4-fold
Transport length
9.2 m
Transport width
2.55 m
Transport height
3.16 m
Max. Reach horizontal
9.5 m
Dredging depth
6.05 m
Tear-out force
90.9 kN
Bucket width
1.05 m
Travel speed
25 km/h
Model series
A
Engine manuf.
Liebherr
Engine type
D 834
Engine power
120 kW
Displacement
4.6 l
Revolutions at max torque
1800 rpm
Emission level
IIIB

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, number of mono booms, total number of dippers - mono, number of articulated booms...

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, number of mono booms, total number of dippers - mono, number of articulated booms, telematics available, platform, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, overall width, machine width - maximum, wheelbase, rear axle to slew centre, tailswing radius, cab height, ground clearance, overall width - stabilisers down, mono boom size, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, max bucket breakout, mono boom, max bucket breakout, artic boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr A 920 Litronic FAQ

When was the Liebherr A 920 Litronic manufactured?

The Liebherr A 920 Litronic was manufactured from 2012 to 2016.

How much does the Liebherr A 920 Litronic wheel excavator weigh?

The Liebherr A 920 Litronic wheel excavator weighs 19.4 tons.

What are the transport dimensions of the Liebherr A 920 Litronic wheel excavator?

The Liebherr A 920 Litronic has a transport length of 9.2 meters, a transport width of 2.55 meters, and a transport height of 3.16 meters.

What is the travel speed of the Liebherr A 920 Litronic wheel excavator?

The Liebherr A 920 Litronic has a travel speed of 25 km/h.

What is the fuel consumption range of the Liebherr A 920 Litronic wheel excavator?

The Liebherr A 920 Litronic has a fuel consumption range of 6 to 10 liters per hour.

What are the undercarriage specifications of the Liebherr A 920 Litronic wheel excavator?

The Liebherr A 920 Litronic is equipped with 10.00-20 standard tyres and has 4 outrigger stabilisers.

What are the excavation performance specifications of the Liebherr A 920 Litronic wheel excavator?

The Liebherr A 920 Litronic has an adjustable boom, a maximum horizontal reach of 9.5 meters, and a dredging depth of 6.05 meters.

What is the tear-out force of the Liebherr A 920 Litronic wheel excavator?

The Liebherr A 920 Litronic wheel excavator has a tear-out force of 90.9 kN.

What are the specifications of the primary work tool bucket on the Liebherr A 920 Litronic?

The primary work tool bucket of the Liebherr A 920 Litronic has a capacity of 0.8 cubic meters and a width of 1.05 meters.

How much is a Liebherr A 920 Litronic Wheel excavator (2012u20132016) worth?

The residual value of the Liebherr A 920 Litronic depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
