A 914 B Litonic Liebherr Excavator Specs & Dimensions - (2003 - 2007)

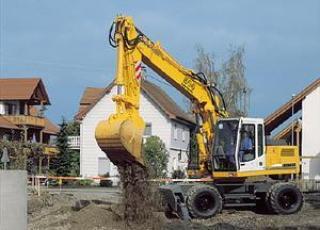

Manufactured by Liebherr, this is the A 914 B Litonic wheel excavator. Find and download detailed specs and data sheets for this m…

Manufactured by Liebherr, this is the A 914 B Litonic wheel excavator. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful Liebherr engine, this A 914 B Litonic 21.1t machine can provide 112kW or 150 horse power for the wheel excavator. This Liebherr wheel excavator belongs to the biggest machine segment in the wheel excavators category. The model's dimensions are 9.15m x 2.5m x 3.2m. The bucket of A 914 B Litonic has a capacity of 0,8m³ which is average for this type of machine.

Since 2003, this model has included Blade and Aircondition. It does not include Diesel particulate filter, Track guidance and Cabin adjustment. There are more detailed specifications and machine descriptions available in the original Liebherr A 914 B Litonic specs data sheet. You can download it for free in German on LECTURA Specs.

This model can be acquired for a list price between €247000 and €314000. Production of the A 914 B Litonic stopped in 2007. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Liebherr currently produces 12 other wheel excavators, which range from 11.8t up to 27.1t - the most visited on LECTURA Specs are A 914 Compact Litronic, A 916 Litronic, A 914 Litronic. Want more detailed specifications? Download the latest Liebherr A 914 B Litonic specs data sheet on LECTURA Specs today!

Wheel Excavators Liebherr A 914 B Litonic

Visit Liebherr live at

Technical specs - A 914 B Litonic Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.1 t
Standard tyres
10.00-20PR16
Bucket capacity
0.8 m³
Boom
VA
Transport length
9.15 m
Transport width
2.5 m
Transport height
3.2 m
Max. Reach horizontal
8.8 m
Dredging depth
5.55 m
Tear-out force
128.6 kN
Model series
A
Engine manuf.
Liebherr
Engine type
D924 TI-E
Engine power
112 kW
Displacement
6.6 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity min., bucket capacity max., outrigger stabilisers, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke...

More technical details, like: bucket capacity min., bucket capacity max., outrigger stabilisers, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of mono booms, total number of dippers - mono, number of articulated booms, engine manufacturer, engine model, rated speed, engine output - net, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, overall width, machine width - maximum, wheelbase, rear axle to slew centre, tailswing radius, cab height, ground clearance, overall width - stabilisers down, mono boom size, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr A 914 B Litonic FAQ

When was the Liebherr A 914 B Litonic manufactured?

The Liebherr A 914 B Litonic was manufactured from 2003 to 2007.

How much does the Liebherr A 914 B Litonic weigh?

The Liebherr A 914 B Litonic weighs 21.1 tons.

What are the transport dimensions of the Liebherr A 914 B Litonic wheel excavator?

The Liebherr A 914 B Litonic has a transport length of 9.15 meters, a transport width of 2.5 meters, and a transport height of 3.2 meters.

What is the fuel consumption range of the Liebherr A 914 B Litonic wheel excavator?

The fuel consumption range of the Liebherr A 914 B Litonic wheel excavator is between 5 and 9 liters per hour.

What are the undercarriage specifications of the Liebherr A 914 B Litonic wheel excavator?

The Liebherr A 914 B Litonic wheel excavator is equipped with standard tyres sized 10.00-20PR16.

What are the excavation performance specifications of the Liebherr A 914 B Litonic wheel excavator?

The Liebherr A 914 B Litonic wheel excavator has a dredging depth of 5.55 meters, a maximum horizontal reach of 8.8 meters, and features an adjustable boom.

What is the tear-out force of the Liebherr A 914 B Litonic wheel excavator?

The Liebherr A 914 B Litonic wheel excavator has a tear-out force of 128.6 kN.

What is the bucket capacity of the Liebherr A 914 B Litonic wheel excavator?

The Liebherr A 914 B Litonic wheel excavator has a bucket capacity of 0.8 cubic meters.

How much is a Liebherr A 914 B Litonic Wheel excavator (2003u20132007) worth?

The residual value of the Liebherr A 914 B Litonic depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
