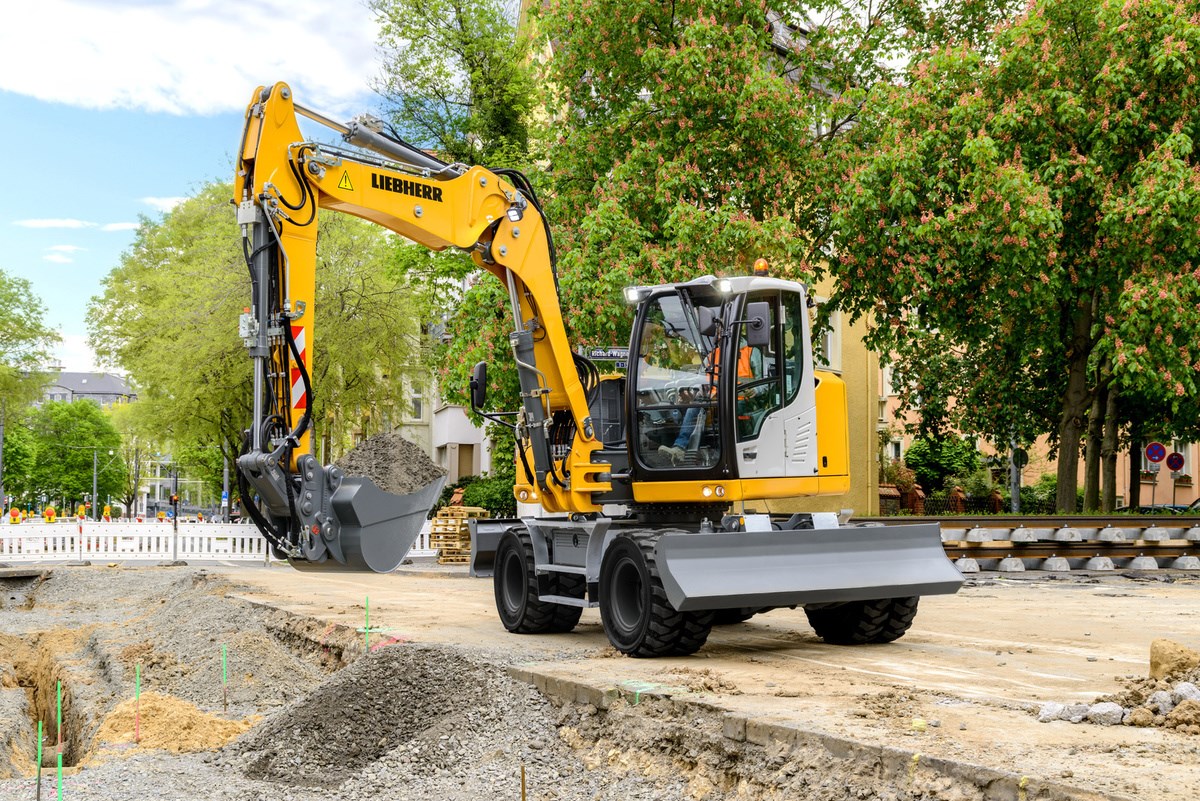

A 912 Compact Litronic Liebherr Excavator Specs & Dimensions - (2016 - 2020)

Compact, Flexible – Perfect Combination for Maximum Performance

Restricted construction sites in city centres, road construction, as well as classic earthmoving work, are an easy task for Liebherr Compact wheeled excavators. The combination of capacity, speed and compact machine dimensions ensure optimal flexibility on all construction sites.

Joystick Steering

With the optional joystick steering, the driver can steer the wheeled excavator proportionally using the mini joystick. In this way, working and driving movements can be performed at the same time without having to change controls. More efficient operation for even greater productivity.

Comfort and Efficiency Features

Numerous details provide greater comfort and efficiency. For example, there is a choice of two different steering wheel versions: The thin steering wheel is recommended for regular civil engineering work as it affords better visibility of the working area. Additionally, the stabiliser blade does not have any lubrication points and is maintenance-free, eliminating the need for time-consuming lubrication.

Service Every Step of the Way – Simple, Fast and Reliable

Liebherr compact wheeled excavators are not only powerful, robust, precise and efficient, they also impress with the service-orientated machine design. Maintenance is performed quickly, simply and safely. This reduces maintenance costs and keeps machine downtimes to a minimum.

Service-based Machine Design

The service-based machine design guarantees short servicing times, thus minimising maintenance costs due to the time it saves. All the maintenance points are easily accessible from the ground and easy to reach due to the large, wide-opening service doors. The enhanced service concept places the maintenance points close to each other and reduces their number to a minimum. This means that service work can be completed even more quickly and efficiently.

Being Faster

The engine power was increased significantly for greater acceleration and better performance especially on slopes. The full engine power is available in driving mode when the joysticks are deactivated. The speed of the machine can be easily adapted to the different applications using the MODE switch.

Engine Idling and Engine Shut-down

The standard automatic idling function reduces the engine speed to idle as soon as the operator takes his hand from the joystick so that no hydraulic function is activated. Proximity sensors in the joystick levers restore the original engine speed as soon as the operator's hand is moved towards the lever again. This ensures that the set engine speed is available immediately. The result is a combination of fuel saving and reduced noise levels. Operating costs can be reduced even further with the optional automatic engine shut-down function.

Noise Reduction

The use of viscoelastic mounts, good insulation and low-noise diesel engines from Liebherr minimises noise emissions and vibrations.

Automatic Digging Brake

The optional digging brake means that manual actuation of the brake pedal is no longer necessary in some applications. Particularly in applications with a frequent transfer of the excavator, this leads to quicker work processes and thus increases safety for people and the machine.

Liebherr Working Tools and LIKUFIX

To boost the productivity of its construction machines, Liebherr offers a broad range of working tools for different fields of application. Furthermore, the hydraulic excavators can also be equipped with the Liebherr LIKUFIX hydraulic quick coupling system. The combination of a hydraulic Liebherr quick coupling system with the LIKUFIX coupling block permits fast safe changing of mechanical and hydraulic working tools from the operator's cabin. This boosts productivity on average by 30 %.

Hydraulic Oils with Added Value

Liebherr hydraulic oils achieve a service life of 6,000 operating hours plus. Instead of having defined change intervals, the results of the oil analysis (every 1,000 operating hours or after one year) determine when the oil needs to be changed. The unique Liebherr Hydraulic Plus oil can even achieve a service life of 8,000 operating hours plus at the same time reducing fuel consumption by up to 5 %.

Maintenance without Draining the Oil

A cut-off valve isolating the oil reservoir from the hydraulic system is fitted as standard. This allows simple maintenance work to be performed on the hydraulic components without having to drain off the hydraulic fluid. Reduced maintenance time for greater machine availability.

Operator's Seat Options

The Standard, Comfort and Premium operator seat versions available have recognized orthopedic properties, and offer sitting comfort at the highest level. Even the standard operator seat offers an extensive range of features such as air suspension, seat heating, headrest, lumbar support and many more. In addition to the standard operator’s seat, the Comfort option includes lockable horizontal suspension, automatic weight adjustment, adjustable suspension stiffness, pneumatic lumbar vertebrae support, and passive seat climatisation with active coal.

Comfortable Operation

The radio can be equipped with an MP3-compatible USB slot and integrated hands-free device, which means that calls can even be taken while working with the machine. Operation of the radio is by means of the touchscreen colour display. Station search, volume control and mute can be controlled with ease. Simple operation for greater comfort.

Operator's Cab

ROPS safety cab structure (roll-over protection system) with individual windscreens featuring a slide-in sun guard under the ceiling, work headlights integrated in the ceiling, a door with a sliding window (can be opened on both sides), large stowing and depositing possibilities, shock-absorbing suspension, soundproofing insulating, tinted laminated safety glass, and separate window shades for the sunroof window and windscreen.

Operator's Seat Standard

Air cushioned operator's seat with 3D-adjustable armrests, headrest, lap belt, seat heater, manual weight adjustment, adjustable seat cushion inclination and length, and mechanical lumbar vertebrae support.

First-class Cab

The optional automatic air conditioning offers a convincingly intuitive operation. Temperature, blower setting and the various air nozzles in the head, chest and foot areas are set using the touchscreen on the indicating unit. The defrost/defog one-button function clears fogged up windows in the shortest possible time. The filter for the cab air can be changed easily and conveniently from the outside.

Intuitive Operation

Display of the machine data and camera image on the 7-inch indicating unit with touchscreen and direct access via menu bar10 user-programmable memory slots for working tools, which can be used for quickly and easily setting the oil pressure and oil flow at the push of a button when changing toolsRear and side area monitoring provide optimum visibility of the working area at all times

Operation and Displays

Large, high-resolution operating unit, self-explanatory colour display with touchscreen, video compatible, numerous setting, control and monitoring options, e.g. air conditioning, fuel consumption, machine and tool parameters.

Air-conditioning

Automatic air-conditioning including demisting (optional). Automatic heating and ventilation system (standard); fast de-icing at the press of a button, air vents can be operated via a menu; recirculated air and fresh air filters can be easily replaced and are accessible from the outside; designed for extreme outside temperatures, sensors for solar radiation, inside and outside temperatures.

Flexibility

High digging forces despite a tight tail swing permit flexible usage on every construction site. Hard surfaces can be processed quickly and precisely, thus also ensuring maximum productivity.

Bright, Longlife Lighting

Various headlights provide optimal lighting in the working area, thus ensuring a better view and greater safety for people and the machine. The standard LED rear lights not only look great, they also have high luminosity and an extremely long life.

Pipe Fracture Safety Valves

The standard pipe fracture safety valves on the stick and hoist cylinders prevent the attachments from dropping in an unregulated way and ensure maximum safety during every operation.

Maximum Safety

More convenient and safer entry and exit in and out of the cab thanks to added width from the folding arm consoleThree entry steps with standard anti-slip galvanised plates provide a boost to safety.

Efficient Management

LiDAT, Liebherr's own data transmission and positioning system, facilitates efficient management, monitoring and control of the entire fleet in terms of machinery data recording, data analysis, fleet management and service. All of the important machinery data can be viewed at any time on a web browser. LiDAT provides you comprehensive work deployment documentation, greater availability thanks to shorter downtimes, faster support from the manufacturer, quicker detection of strain/overload and subsequently a longer service life of the machine as well as greater planning efficiency.

Robust Design

All steel components are designed and manufactured by Liebherr itself. High-strength steel plates configured for the toughest of requirements result in high torsional stiffness and optimum absorption of forces induced for a longer service life.

Refuelling

Using the optional refuelling pump, the machine can be refuelled directly from a fuel containerThe tank hose integrated in the service door and the automatic shut-off when the tank is full offer greater convenience and short replenishment timesTopping up – simple, quick and safe
