A 912 Compact Litronic Liebherr Excavator Specs & Dimensions - (2013 - 2016)

Liebherr is the manufacturer of the wheel excavator model A 912 Compact Litronic. Find and download detailed specs and data sheets…

Liebherr is the manufacturer of the wheel excavator model A 912 Compact Litronic. Find and download detailed specs and data sheets for this machine here.

This wheel excavator is built to provide up to 80kW or 107 horse power, delivered from its powerful Deutz engine to the 12.5t A 912 Compact Litronic machine. The A 912 Compact Litronic is categorised in the smallest machine segment in the wheel excavators category. The model's dimensions are 8.55m x 2.55m x 3.13m. The bucket capacity of A 912 Compact Litronic is 0,33m³, which is above average for this type of machine.

The A 912 Compact Litronic is manufactured and distributed with Aircondition, Overload alert and Blade. It has been sold without air Cabin adjustment, Quick hitch mech. And Material Handling Excavator as of 2016. There are more detailed specifications and machine descriptions available in the original Liebherr A 912 Compact Litronic specs data sheet. Specification sheet is available for a free download in German, English, Italian and French - providing the machine descriptions and more detailed specs about this particular model.

The production stopped in 2016, where this A 912 Compact Litronic was available at a new list price between €196000 and €249000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Liebherr currently produces 12 other wheel excavators, which range from 11.8t up to 27.1t - the most visited on LECTURA Specs are A 916 Litronic, A 914 Compact Litronic, A 914 Litronic. Want more detailed specifications? Download the latest Liebherr A 912 Compact Litronic specs data sheet on LECTURA Specs today!

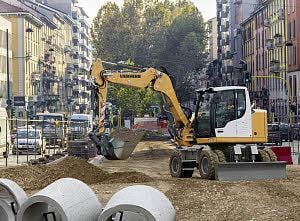

Wheel Excavators Liebherr A 912 Compact Litronic
Wheel Excavators Liebherr A 912 Compact Litronic
Wheel Excavators Liebherr A 912 Compact Litronic
Wheel Excavators Liebherr A 912 Compact Litronic

Visit Liebherr live at

Technical specs - A 912 Compact Litronic Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
12.5 t
Standard tyres
9.00-20
Bucket capacity
0.33 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
8.55 m
Transport width
2.55 m
Transport height
3.13 m
Max. Reach horizontal
8.55 m
Dredging depth
4.35 m
Tear-out force
51.3 kN
Bucket width
0.75 m
Travel speed
25 km/h
Model series
A
Engine manuf.
Deutz
Engine type
TCD3.6 L4
Engine power
80 kW
Displacement
3.6 l
Revolutions at max torque
1800 rpm
Emission level
IIIB

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr A 912 Compact Litronic FAQ

When was the Liebherr A 912 Compact Litronic manufactured?

The Liebherr A 912 Compact Litronic was manufactured from 2013 to 2016.

How much does the Liebherr A 912 Compact Litronic weigh?

The Liebherr A 912 Compact Litronic weighs 12.5 tons.

What are the transport dimensions of the Liebherr A 912 Compact Litronic wheel excavator?

The Liebherr A 912 Compact Litronic has a transport length of 8.55 meters, a transport width of 2.55 meters, and a transport height of 3.13 meters.

What is the travel speed of the Liebherr A 912 Compact Litronic wheel excavator?

The Liebherr A 912 Compact Litronic has a travel speed of 25 km/h.

What is the fuel consumption range of the Liebherr A 912 Compact Litronic wheel excavator?

The Liebherr A 912 Compact Litronic has a fuel consumption range of 4 to 8 liters per hour.

What are the undercarriage specifications of the Liebherr A 912 Compact Litronic wheel excavator?

The Liebherr A 912 Compact Litronic is equipped with 9.00-20 standard tyres and has 2 outrigger stabilisers.

What are the excavation performance specifications of the Liebherr A 912 Compact Litronic wheel excavator?

The Liebherr A 912 Compact Litronic has a dredging depth of 4.35 meters, a maximum horizontal reach of 8.55 meters, and features an adjustable boom.

What is the tear-out force of the Liebherr A 912 Compact Litronic, given that no power ratings are provided?

The Liebherr A 912 Compact Litronic has a tear-out force of 51.3 kN, but no power ratings are specified in the available data.

What are the specifications of the primary work tool bucket on the Liebherr A 912 Compact Litronic?

The primary work tool bucket of the Liebherr A 912 Compact Litronic has a capacity of 0.33 cubic meters and a width of 0.75 meters.

How much is a Liebherr A 912 Compact Litronic Wheel excavator (2013u20132016) worth?

The residual value of the Liebherr A 912 Compact Litronic depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
