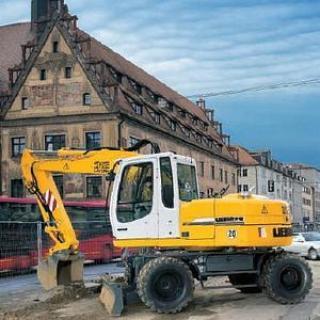

A 312 Litronic Liebherr Excavator Specs & Dimensions - (2002 - 2007)

Model rating
10,00 / 10

Manufactured by Liebherr, this is the A 312 Litronic wheel excavator. Find and download detailed specs and data sheets for this ma…

Manufactured by Liebherr, this is the A 312 Litronic wheel excavator. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful Deutz engine, this A 312 Litronic 13.05t machine can provide 74kW or 99 horse power for the wheel excavator. The Liebherr A 312 Litronic can be grouped in the smallest machine segment in the wheel excavators category. The model's dimensions are 8.15m x 3m x 3.1m. The bucket of A 312 Litronic has a capacity of 0,46m³ which is average for this type of machine.

Since 2002, this model has included Blade. Cabin adjustment, Overload alert and Material Handling Excavator are not provided on this model as of 2007. There are more detailed specifications and machine descriptions available in the original Liebherr A 312 Litronic specs data sheet. Specification sheet is available for a free download in German - providing the machine descriptions and more detailed specs about this particular model.

The production stopped in 2007, where this A 312 Litronic was available at a new list price between €160000 and €204000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, 12 other wheel excavators, which range from 11.8t up to 27.1t are produced by Liebherr. Of these, A 914 Compact Litronic, A 916 Litronic and also A 914 Litronic are the most frequently visited on LECTURA Specs. We can see currently about 12 models of the A 312 Litronic wheel excavator with an average age of 12 years and average price of €30300. Want more detailed specifications? Download the latest Liebherr A 312 Litronic specs data sheet on LECTURA Specs today!

Wheel Excavators Liebherr A 312 Litronic
Wheel Excavators Liebherr A 312 Litronic
Wheel Excavators Liebherr A 312 Litronic
Wheel Excavators Liebherr A 312 Litronic

Visit Liebherr live at

Technical specs - A 312 Litronic Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.05 t
Standard tyres
10.00-20PR16
Bucket capacity
0.46 m³
Boom
VA
Transport length
8.15 m
Transport width
3 m
Transport height
3.1 m
Max. Reach horizontal
8.45 m
Dredging depth
6.15 m
Tear-out force
64.5 kN
Model series
A
Engine manuf.
Deutz
Engine type
BF4M1013E
Engine power
74 kW
Revolutions at max torque
1800 rpm

More technical details, like: bucket capacity min., bucket capacity max., outrigger stabilisers, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, displacement, max. torque, no. of cylinders...

More technical details, like: bucket capacity min., bucket capacity max., outrigger stabilisers, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of mono booms, total number of dippers - mono, number of articulated booms, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, maximum transport length - mono boom, overall width, machine width - maximum, wheelbase, rear axle to slew centre, tailswing radius, cab height, ground clearance, overall width - stabilisers down, mono boom size, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr A 312 Litronic FAQ

When was the Liebherr A 312 Litronic manufactured?

The Liebherr A 312 Litronic was manufactured from 2002 to 2007.

How much does the Liebherr A 312 Litronic weigh?

The Liebherr A 312 Litronic weighs 13.05 tons.

What are the transport dimensions of the Liebherr A 312 Litronic wheel excavator?

The Liebherr A 312 Litronic has a transport length of 8.15 meters, a transport width of 3 meters, and a transport height of 3.1 meters.

What are the undercarriage tyre specifications of the Liebherr A 312 Litronic wheel excavator?

The Liebherr A 312 Litronic wheel excavator is equipped with standard tyres sized 10.00-20PR16.

What are the excavation performance specifications of the Liebherr A 312 Litronic wheel excavator?

The Liebherr A 312 Litronic wheel excavator has a dredging depth of 6.15 meters, a maximum horizontal reach of 8.45 meters, and features an adjustable boom.

What is the tear-out force of the Liebherr A 312 Litronic wheel excavator?

The Liebherr A 312 Litronic wheel excavator has a tear-out force of 64.5 kN.

What is the bucket capacity of the Liebherr A 312 Litronic wheel excavator?

The Liebherr A 312 Litronic wheel excavator has a bucket capacity of 0.46 cubic meters.

How much is a Liebherr A 312 Litronic Wheel excavator (2002u20132007) worth?

The residual value of the Liebherr A 312 Litronic depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
