A 311 Litronic Liebherr Excavator Specs & Dimensions - (2008 - 2014)

Liebherr is the manufacturer of the wheel excavator model A 311 Litonic. Find and download detailed specs and data sheets for this…

Liebherr is the manufacturer of the wheel excavator model A 311 Litonic. Find and download detailed specs and data sheets for this machine here.

This wheel excavator is built to provide up to 68kW or 91 horse power, delivered from its powerful Deutz engine to the 12.1t A 311 Litonic machine. This Liebherr wheel excavator belongs to the smallest machine segment in the wheel excavators category. The model's dimensions are 8.75m x 2.55m x 3.11m. The bucket capacity of A 311 Litonic is 0,33m³, which is above average for this type of machine.

The Liebherr A 311 Litonic has been equipped and sold with Blade and Overload alert. It does not include Quick hitch hydr., Cabin adjustment and Aircondition. There are more detailed specifications and machine descriptions available in the original Liebherr A 311 Litonic specs data sheet. Available in French, English and German, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.

This model can be acquired for a list price between €177000 and €226000. Production of the A 311 Litonic stopped in 2014. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Liebherr currently produces 12 other wheel excavators, which range from 11.8t up to 27.1t - the most visited on LECTURA Specs are A 914 Compact Litronic, A 914 Litronic, A 916 Litronic. Want more detailed specifications? Download the latest Liebherr A 311 Litonic specs data sheet on LECTURA Specs today!

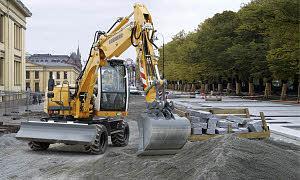

Wheel Excavators Liebherr A 311 Litronic

Visit Liebherr live at

Technical specs - A 311 Litronic Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
12.1 t
Standard tyres
9.00-20PR14
Bucket capacity
0.33 m³
Boom
VA
Transport length
8.75 m
Transport width
2.55 m
Transport height
3.11 m
Max. Reach horizontal
8.7 m
Dredging depth
4.4 m
Tear-out force
51.3 kN
Bucket width
0.75 m
Model series
A
Engine manuf.
Deutz
Engine type
TCD2012 L04
Engine power
68 kW
Revolutions at max torque
1800 rpm

More technical details, like: bucket capacity min., bucket capacity max., outrigger stabilisers, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke...

More technical details, like: bucket capacity min., bucket capacity max., outrigger stabilisers, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level, total number of dippers - mono, number of articulated booms, engine manufacturer, engine model, rated speed, engine output - net, number of tyres - standard, tyre size - standard, overall width, machine width - maximum, wheelbase, rear axle to slew centre, tailswing radius, cab height, ground clearance, overall width - stabilisers down, standard dipper length, longest dipper length, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr A 311 Litronic FAQ

When was the Liebherr A 311 Litronic manufactured?

The Liebherr A 311 Litronic was manufactured from 2008 to 2014.

How much does the Liebherr A 311 Litronic weigh?

The Liebherr A 311 Litronic weighs 12.1 tons.

What are the transport dimensions of the Liebherr A 311 Litronic wheel excavator?

The Liebherr A 311 Litronic has a transport length of 8.75 meters, a transport width of 2.55 meters, and a transport height of 3.11 meters.

What are the undercarriage specifications of the Liebherr A 311 Litronic wheel excavator?

The Liebherr A 311 Litronic is equipped with standard tyres sized 9.00-20PR14.

What are the excavation performance specifications of the Liebherr A 311 Litronic wheel excavator?

The Liebherr A 311 Litronic has a dredging depth of 4.4 meters, a maximum horizontal reach of 8.7 meters, and features an adjustable boom.

What is the tear-out force of the Liebherr A 311 Litronic wheel excavator?

The Liebherr A 311 Litronic wheel excavator has a tear-out force of 51.3 kN.

What are the specifications of the bucket on the Liebherr A 311 Litronic wheel excavator?

The bucket of the Liebherr A 311 Litronic has a capacity of 0.33 cubic meters and a width of 0.75 meters.

How much is a Liebherr A 311 Litronic Wheel excavator (2008u20132014) worth?

The residual value of the Liebherr A 311 Litronic depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Liebherr A 311 Litronic overview

Engine

Economy

The Liebherr-Litronic-System increases machine performance and reduces fuel consumption. Even in tight spaces, the compact excavators are unequalled in terms of low fuel consumption combined with high digging forces. The machine design allows easy access to all service and maintenance points, ensuring optimum service times.


Low operating costs

A switch function reduces engine speed to idling when no working or travel operation is being carried out, thus reducing fuel consumption and emissions. Service points such as engine, filter or fuel gauges are easily accessible from ground level. The large rear cover allows quick and easy maintenance. High-tensile structural parts, designed and manufactured in accordance with the FEM method, guarantee high lift capacities for effective results at any building site.


Undercarriage

Sound concept

Clear arrangement on the uppercarriage combined with lateral mounting of the engine in front of the counterweight provides the excavator with exceptional stability.


Optimum stability

High-resistant welding seams, specially selected steel elements and a proven tub design, as well as stabiliser options and single or two-section blades, guarantee optimum stability.


Drive power

The standard power-shift transmission allows rapid uphill travel, as well as gear-change without stopping the excavator. The creeper gear assures precise travel movements, even over extremely difficult ground conditions. Unlimited flexibility is guaranteed via the optional all-wheel drive and crab steer.


Operator's cab

Comfort

The Liebherr oversize cabs are a novelty in this machine class. All operating elements are ergonomically positioned and arranged within easy view of the operator. The operator’s seat can be adjusted individually, and a clear all-round view ensures a safe and relaxed working environment. All service and maintenance points are easily accessible.


Swing system

Quick working cycles

High swing torque is achieved via maximum engine output and a specially designed swing drive in combination with the Liebherr swing ring featuring internal-teeth.


Serviceability

Reliability

Due to the robust steel structure, the use of high-tensile materials as well as Liebherr components, these wheeled excavators excel through maximum reliability. Reliable and consistent performance can be expected even under the toughest working conditions. The rugged and resilient design contributes toward long life-expectancy of the wheeled excavators, and their exceptional characteristics display outstanding performance in a wide range of applications.


Wide product range

The Liebherr Group is one of the largest construction equipment manufacturers in the world. Liebherr’s high-value products and services enjoy a high reputation in many other fields, too. The wide range includes domestic appliances, aerospace and transportation systems, machine tools and maritime cranes.


Exceptional customer benefit

Every product line provides a complete range of models in many different versions. With both their technical excellence and acknowledged quality, Liebherr products offer a maximum of customer benefits in practical application.
