A 309 Litronic Liebherr Excavator Specs & Dimensions - (2008 - 2014)

Model rating
7,50 / 10

Manufactured by Liebherr, this is the A 309 Litronic wheel excavator. Find and download detailed specs and data sheets for this ma…

Manufactured by Liebherr, this is the A 309 Litronic wheel excavator. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful Deutz engine, this A 309 Litronic 11.3t machine can provide 65kW or 87 horse power for the wheel excavator. The A 309 Litronic is categorised in the smallest machine segment in the wheel excavators category. The model's dimensions are 8.3m x 2.55m x 3.11m. The bucket capacity of A 309 Litronic is 0,33m³, which is above average for this type of machine.

Since 2008, this model has included Overload alert and Blade. Diesel particulate filter, Track guidance and Quick hitch hydr. Are not provided on this model as of 2014. There are more detailed specifications and machine descriptions available in the original Liebherr A 309 Litronic specs data sheet. You can download it for free in English, French and German on LECTURA Specs.

The production stopped in 2014, where this A 309 Litronic was available at a new list price between €153000 and €194000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Liebherr currently produces 12 other wheel excavators, which range from 11.8t up to 27.1t - the most visited on LECTURA Specs are A 916 Litronic, A 914 Litronic, A 914 Compact Litronic. Want more detailed specifications? Download the latest Liebherr A 309 Litronic specs data sheet on LECTURA Specs today!

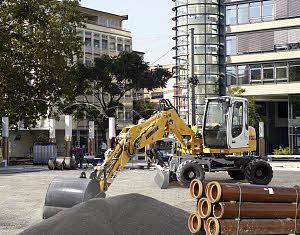

Wheel Excavators Liebherr A 309 Litronic

Visit Liebherr live at

Technical specs - A 309 Litronic Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
11.3 t
Standard tyres
9.00-20PR14
Bucket capacity
0.33 m³
Boom
VA
Transport length
8.3 m
Transport width
2.55 m
Transport height
3.11 m
Max. Reach horizontal
8.15 m
Dredging depth
3.9 m
Tear-out force
44.8 kN
Bucket width
0.75 m
Model series
A
Engine manuf.
Deutz
Engine type
TCD2012 L04
Engine power
65 kW
Displacement
4 l
Revolutions at max torque
1800 rpm

More technical details, like: bucket capacity min., bucket capacity max., outrigger stabilisers, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level...

More technical details, like: bucket capacity min., bucket capacity max., outrigger stabilisers, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, total number of dippers - mono, number of articulated booms, engine manufacturer, engine model, rated speed, engine output - net, number of tyres - standard, tyre size - standard, overall width, machine width - maximum, wheelbase, rear axle to slew centre, tailswing radius, cab height, ground clearance, overall width - stabilisers down, standard dipper length, longest dipper length, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr A 309 Litronic FAQ

When was the Liebherr A 309 Litronic manufactured?

The Liebherr A 309 Litronic was manufactured from 2008 to 2014.

How much does the Liebherr A 309 Litronic weigh?

The Liebherr A 309 Litronic weighs 11.3 tons.

What are the transport dimensions of the Liebherr A 309 Litronic wheel excavator?

The Liebherr A 309 Litronic has a transport length of 8.3 meters, a transport width of 2.55 meters, and a transport height of 3.11 meters.

What are the undercarriage specifications of the Liebherr A 309 Litronic wheel excavator?

The Liebherr A 309 Litronic wheel excavator is equipped with standard tyres sized 9.00-20PR14.

What are the excavation performance specifications of the Liebherr A 309 Litronic wheel excavator?

The Liebherr A 309 Litronic has a dredging depth of 3.9 meters, a maximum horizontal reach of 8.15 meters, and features an adjustable boom.

What are the power ratings of the Liebherr A 309 Litronic wheel excavator?

The source data does not provide any power ratings for the Liebherr A 309 Litronic wheel excavator.

What are the specifications of the primary work tool bucket on the Liebherr A 309 Litronic?

The primary work tool bucket of the Liebherr A 309 Litronic has a capacity of 0.33 cubic meters and a width of 0.75 meters.

How much is a Liebherr A 309 Litronic Wheel excavator (2008u20132014) worth?

The residual value of the Liebherr A 309 Litronic depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Liebherr A 309 Litronic overview

Engine

Economy

The Liebherr-Litronic-System increases machine performance and reduces fuel consumption. Even in tight spaces, the compact excavators are unequalled in terms of low fuel consumption combined with high digging forces. The machine design allows easy access to all service and maintenance points, ensuring optimum service times.


Low operating costs

A switch function reduces engine speed to idling when no working or travel operation is being carried out, thus reducing fuel consumption and emissions. Service points such as engine, filter or fuel gauges are easily accessible from ground level. The large rear cover allows quick and easy maintenance. High-tensile structural parts, designed and manufactured in accordance with the FEM method, guarantee high lift capacities for effective results at any building site.


Undercarriage

Sound concept

Clear arrangement on the uppercarriage combined with lateral mounting of the engine in front of the counterweight provides the excavator with exceptional stability.


Optimum stability

High-resistant welding seams, specially selected steel elements and a proven tub design, as well as stabiliser options and single or two-section blades, guarantee optimum stability.


Drive power

The standard power-shift transmission allows rapid uphill travel, as well as gear-change without stopping the excavator. The creeper gear assures precise travel movements, even over extremely difficult ground conditions. Unlimited flexibility is guaranteed via the optional all-wheel drive and crab steer.


Operator's cab

Comfort

The Liebherr oversize cabs are a novelty in this machine class. All operating elements are ergonomically positioned and arranged within easy view of the operator. The operator’s seat can be adjusted individually, and a clear all-round view ensures a safe and relaxed working environment. All service and maintenance points are easily accessible.


Swing system

Quick working cycles

High swing torque is achieved via maximum engine output and a specially designed swing drive in combination with the Liebherr swing ring featuring internal-teeth.


Serviceability

Reliability

Due to the robust steel structure, the use of high-tensile materials as well as Liebherr components, these wheeled excavators excel through maximum reliability. Reliable and consistent performance can be expected even under the toughest working conditions. The rugged and resilient design contributes toward long life-expectancy of the wheeled excavators, and their exceptional characteristics display outstanding performance in a wide range of applications.


Wide product range

The Liebherr Group is one of the largest construction equipment manufacturers in the world. Liebherr’s high-value products and services enjoy a high reputation in many other fields, too. The wide range includes domestic appliances, aerospace and transportation systems, machine tools and maritime cranes.


Exceptional customer benefit

Every product line provides a complete range of models in many different versions. With both their technical excellence and acknowledged quality, Liebherr products offer a maximum of customer benefits in practical application.
