JS175W JCB Excavator Specs & Dimensions - (2021 - 2026)

Weight: 17.5t – Standard tyres: 10.00x20 – Bucket capacity: 0.34m³ – Boom: VA – Outrigger stabilisers: 22/4-fold – Transport lengt…

Weight: 17.5t – Standard tyres: 10.00x20 – Bucket capacity: 0.34m³ – Boom: VA – Outrigger stabilisers: 22/4-fold – Transport length: 8.285m

Check out detailed dimensions, specifications, information and technical data for JCB JS175W excavator manufactured between 2021 - 2026. Get more in-depth insight with JCB JS175W digger specifications. See information, like: Weight: 17.5t – Standard tyres: 10.00x20 – Bucket capacity: 0.34m³ – Boom: VA – Outrigger stabilisers: 22/4-fold – Transport length: 8.285m and more.

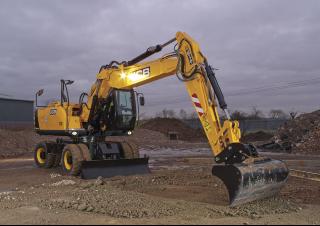

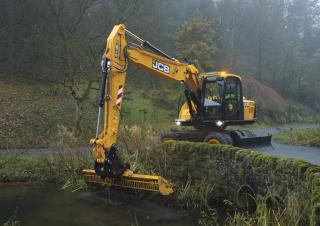

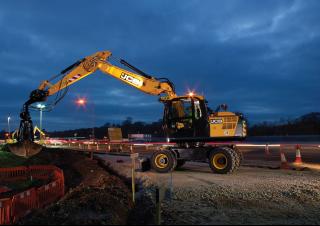

Wheel Excavators JCB JS175W
Wheel Excavators JCB JS175W
Wheel Excavators JCB JS175W
Wheel Excavators JCB JS175W
Wheel Excavators JCB JS175W
Wheel Excavators JCB JS175W
Wheel Excavators JCB JS175W
Wheel Excavators JCB JS175W
Wheel Excavators JCB JS175W
Wheel Excavators JCB JS175W

Visit JCB live at

Technical specs - JS175W JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
17.5 t
Standard tyres
10.00x20
Bucket capacity
0.34 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
8.285 m
Transport width
2.49 m
Transport height
3.195 m
Max. Reach horizontal
8.386 m
Dredging depth
5.682 m
Tear-out force
75.3 kN
Bucket width
0.61 m
Dipper length
2.7 m
Turning radius outside
6.558 m
Travel speed
20 km/h
Model series
JS
Engine manuf.
JCB
Engine type
DieselMax
Engine power
129 kW
Displacement
4.8 l
Revolutions at max torque
1500 rpm
Max. torque
690 Nm
No. of cylinders
4
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., turning radius inside, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
Yes
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

JCB JS175W FAQ

When was the JCB JS175W manufactured?

The JCB JS175W was first produced in 2021.

How much does the JCB JS175W wheel excavator weigh?

The JCB JS175W wheel excavator weighs 17.5 tons.

What are the transport dimensions of the JCB JS175W wheel excavator?

The JCB JS175W has a transport length of 8.29 meters, a transport width of 2.49 meters, and a transport height of 3.2 meters.

What is the travel speed of the JCB JS175W wheel excavator?

The JCB JS175W wheel excavator has a travel speed of 20 km/h.

What are the undercarriage specifications of the JCB JS175W wheel excavator?

The JCB JS175W wheel excavator is equipped with 10.00x20 standard tyres and has 2 outrigger stabilisers.

What is the turning radius of the JCB JS175W wheel excavator?

The JCB JS175W wheel excavator has an outside turning radius of 6.558 meters.

What are the excavation performance specifications of the JCB JS175W wheel excavator?

The JCB JS175W has a dredging depth of 5.682 meters, a maximum horizontal reach of 8.386 meters, features an adjustable boom, and has a dipper length of 2.7 meters.

Are power ratings available for the JCB JS175W wheel excavator?

The source data does not provide power ratings for the JCB JS175W wheel excavator.

What are the bucket specifications of the JCB JS175W wheel excavator?

The JCB JS175W wheel excavator has a bucket capacity of 0.34 cubic meters and a bucket width of 0.61 meters.
