JS130W TAB JCB Excavator Specs & Dimensions - (2009 - 2014)

Weight: 14.96t – Bucket capacity: 0.8m³ – Outrigger stabilisers: 22/4-fold – Max. Reach horizontal: 9m – Dredging depth: 5.93m – T…

Weight: 14.96t – Bucket capacity: 0.8m³ – Outrigger stabilisers: 22/4-fold – Max. Reach horizontal: 9m – Dredging depth: 5.93m – Travel speed: 30km/h

Check out detailed dimensions, specifications, information and technical data for JCB JS130W TAB excavator manufactured between 2009 - 2014. Get more in-depth insight with JCB JS130W TAB digger specifications. See information, like: Weight: 14.96t – Bucket capacity: 0.8m³ – Outrigger stabilisers: 22/4-fold – Max. Reach horizontal: 9m – Dredging depth: 5.93m – Travel speed: 30km/h and more.

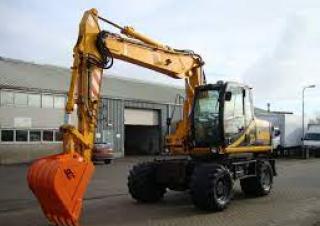

Wheel Excavators JCB JS130W TAB

Visit JCB live at

Technical specs - JS130W TAB JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
14.96 t
Bucket capacity
0.8 m³
Outrigger stabilisers
2 2/4-fold
Max. Reach horizontal
9 m
Dredging depth
5.93 m
Travel speed
30 km/h
Engine manuf.
Isuzu
Engine type
N/A
Engine power
73 kW
Displacement
5.193 l
Revolutions at max torque
1340 rpm
Emission level
Tier 3

More technical details, like: standard tyres, bucket capacity min., bucket capacity max., boom, transport length, transport width, transport height, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside...

More technical details, like: standard tyres, bucket capacity min., bucket capacity max., boom, transport length, transport width, transport height, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB JS130W TAB FAQ

When was the JCB JS130W TAB manufactured?

The JCB JS130W TAB was manufactured from 2009 to 2014.

How much does the JCB JS130W TAB weigh?

The JCB JS130W TAB weighs 14.96 tons.

What is the travel speed of the JCB JS130W TAB wheel excavator?

The JCB JS130W TAB has a travel speed of 30 km/h.

How many outrigger stabilisers (2/4-fold) does the JCB JS130W TAB have?

The JCB JS130W TAB has 2 outrigger stabilisers (2/4-fold).

What are the excavation performance specifications of the JCB JS130W TAB?

The JCB JS130W TAB has a dredging depth of 5.93 meters and a maximum horizontal reach of 9 meters.

What is the bucket capacity of the JCB JS130W TAB wheel excavator?

The JCB JS130W TAB wheel excavator has a bucket capacity of 0.8 cubic meters.

How much is a JCB JS130W TAB Wheel excavator (2009u20132014) worth?

The residual value of the JCB JS130W TAB depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
